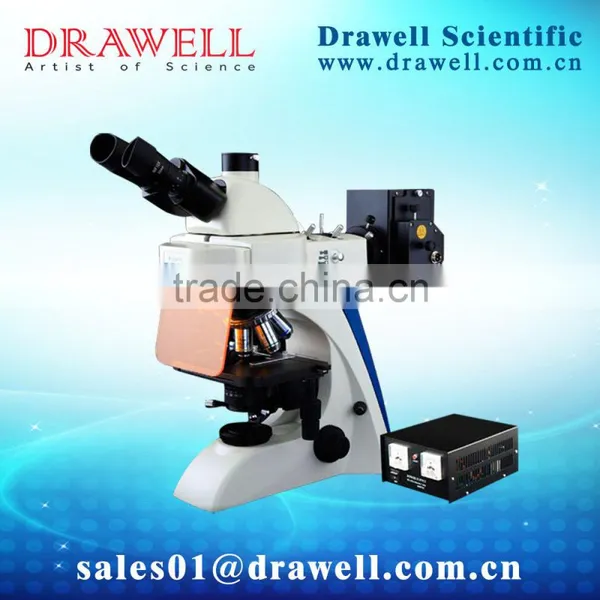

BK-FL2/FL4 Series Biological Microscope Outfits

Name: BK-FL2/FL4 Series Biological Microscope Outfits
Brand: DRAWELL
SKU: 141125008
Availability: InStock

US$ 2,450 - 2,650 MOQ: 1 Piece

Key Specifications

Brand Name:

DRAWELL

Model Number:

BK-FL2/FL4

Theory:

Biological Microscope

Shanghai Drawell Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name DRAWELL

Model Number BK-FL2/FL4

Theory Biological Microscope

Drawtube Binocular

BK-FL2/FL4 Series Biological Microscope Outfits

Items	Specification	BK-FL2	BK-FL4
Eyepiece	WF10×/20mm	YY	YY
	WF10×/20mm(Reticule 0.1mm)	o	o
	WF16×	oo	oo
Infinity Plan Achromatic Objectives	PLAN 4×/0.10	Y	Y
	PLAN 10×/0.25	Y	Y
	PLAN 20×/0.40(s)	Y	Y
	PLAN 40×/0.66(s)	Y	Y
	PLAN 100×/1.25(s,oil)	Y	Y
	PLAN 2.5×/0.07	o	o
	PLAN 60×/0.80(s)	o	o
Observing tube	Seidentopf Binocular Head	o	o
Observing tube	Seidentopf Trinocular Head	Y	Y
Nosepiece	Inward Inclined positional quintuple nosepiece	Y	Y
Stage	Mechanical stage	Y	Y
Condenser	Abbe N.A.1.25	Y	Y
Condenser	Swing out achromatic condenser,N.A.0.9/0.13	o	o
Illumination device	6V/20W halogen (wide range input voltage:100V~240V)	Y	Y
	6V/30W halogen (wide range input voltage:100V~240V)	o	o
	3W-LED cold light illumination	o	o
Filter	Blue(optional : yellow, green, gray)	Y	Y
C-mount	1×C-Mount (apply to digital camera)	o	o
C-mount	0.57×C-Mount (apply to camera system)	o	o
Adaptor for digital camera	Apply to CANON/NIKON/OLYMPUS etc.	o	o
Fluorescence Attachment	Epi fluorescence unit(B,G,Uv,V)		Y
	Epi fluorescence unit(B,G)	Y
	100W mercury lamp house	Y	Y
	100Wmercury power source(optional: pointer or digital)	Y	Y
	Centering objective	Y	Y
	3W-LED Epi fluorescence unit(B,G)	o
