DW-10ND Electric Freeze-Drying Machine

Name: DW-10ND Electric Freeze-Drying Machine
Brand: DRAWELL
SKU: 141124580
Availability: InStock

US$ 3,500 - 15,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Freeze Drying Equipment

Place of Origin:

Shanghai, China

Shanghai Drawell Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Freeze Drying Equipment

Place of Origin Shanghai, China

Brand Name DRAWELL

Model Number DW-10ND

Voltage 110V/60Hz or 220V/50Hz

Power(W) 950W

Dimension(L*W*H) W450xD580xH(380+450) mm

Weight 90~125kg

Certification CE Certificate

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

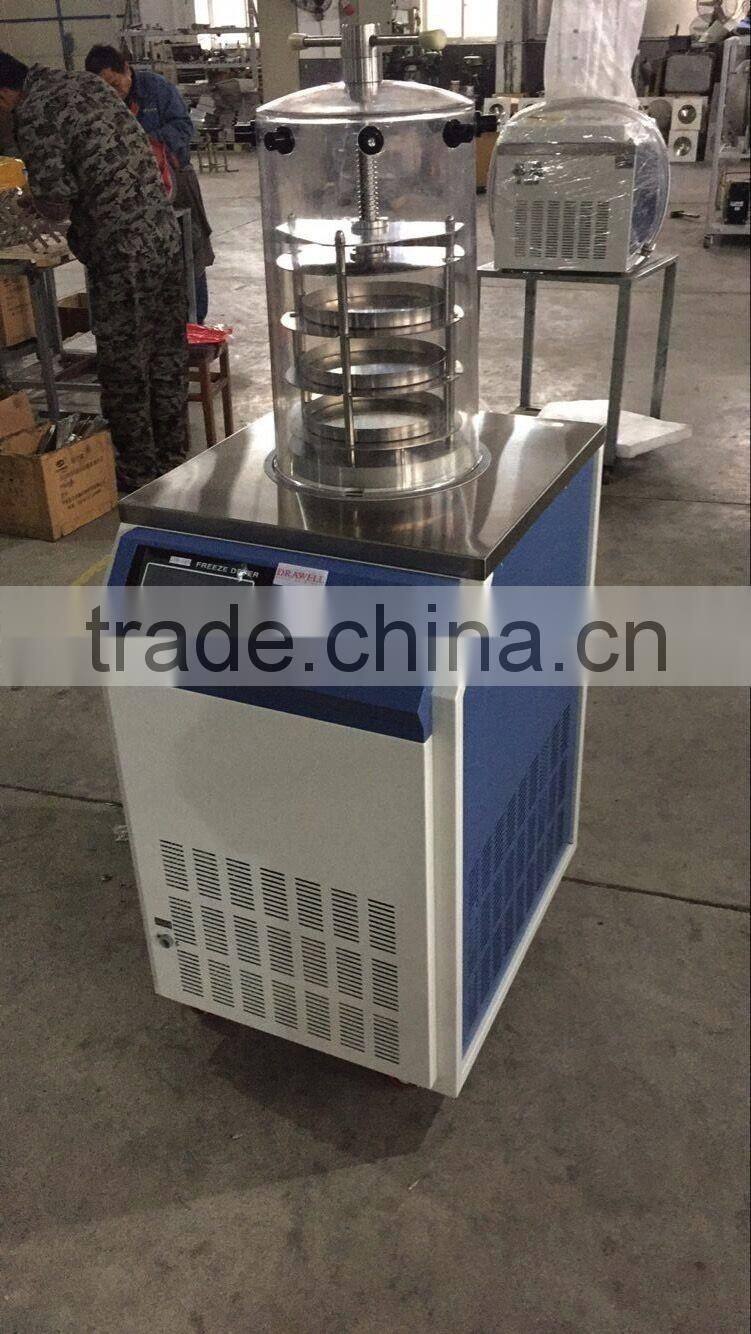

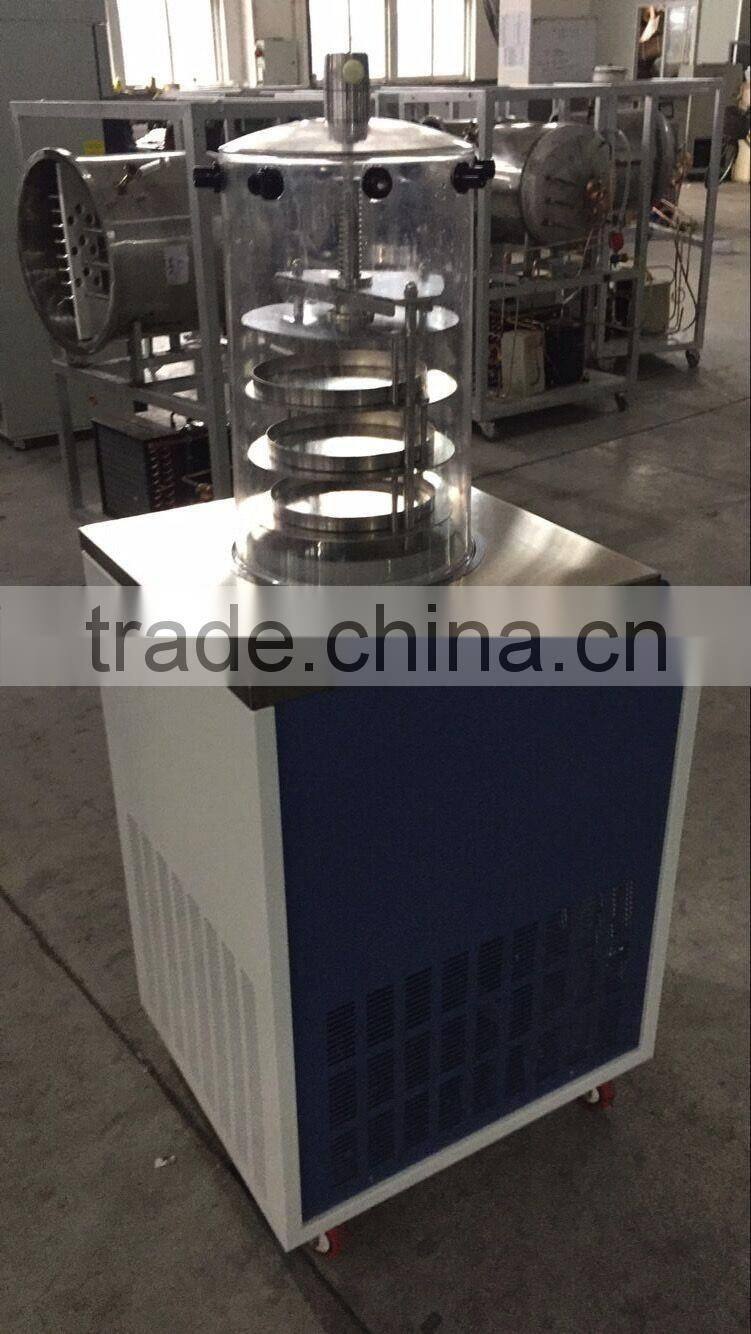

DW-10ND Electric Heating Freeze-Drying Machine

DW-10ND	Ordinary	Top-Press	Ordinary Multi-Manifolds	Top-Press Multi-Manifolds
No-load Temperature	<-56℃	<-56℃	<-56℃	<-56℃
Freeze Area	0.12 m²	0.076 m²	0.12 m²	0.076 m²
Plate Load Capacity	1.5 L	1 L	1.5 L	1 L
Ability to Capture Water	3Kg	3 Kg	3 Kg	3 Kg
Vacuum Degree	<10Pa	<10Pa	<10Pa	<10Pa
Machine Dimension	W450×D580×H(380+450) mm	W450×D580×H(380+450) mm	W450×D580×H(380+450) mm	W450×D580×H(380+450) mm
Sample Tray Size	4×Φ200mm	Ø 3×180 mm	4×Φ200mm	Ø 3×180 mm
Power	950W	950W	950W	950W
Power Supply	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz
interlayer spacing	70 mm	70 mm	70 mm	70 mm
Cold trap size	Ø215×160 mm	Ø215×160 mm	Ø215×160 mm	Ø215×160 mm
The number of Schering bottles	Ø22: 260	Ø22: 165	Ø22: 260	Ø22: 165
	Ø16: 480	Ø16: 285	Ø16: 480	Ø16: 285
	Ø12: 920	Ø12: 560	Ø12: 920	Ø12: 560
N.W./ G.W	90KG/ 105KG	95KG/110KG	105KG/120KG	110KG/125KG
