DW-SW600 Elisa Mciroplate Washer for Diagnostic Elisa Kits

Name: DW-SW600 Elisa Mciroplate Washer for Diagnostic Elisa Kits
Brand: DRAWELL
SKU: 141124370
Availability: InStock

Shanghai Drawell Scientific Instrument Co., Ltd.

US$ 900 - 2,600 MOQ: 1 Piece

Key Specifications

Type:

Biochemical Analysis System

Brand Name:

DRAWELL

Model Number:

DW-SW600

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Biochemical Analysis System

Brand Name DRAWELL

Model Number DW-SW600

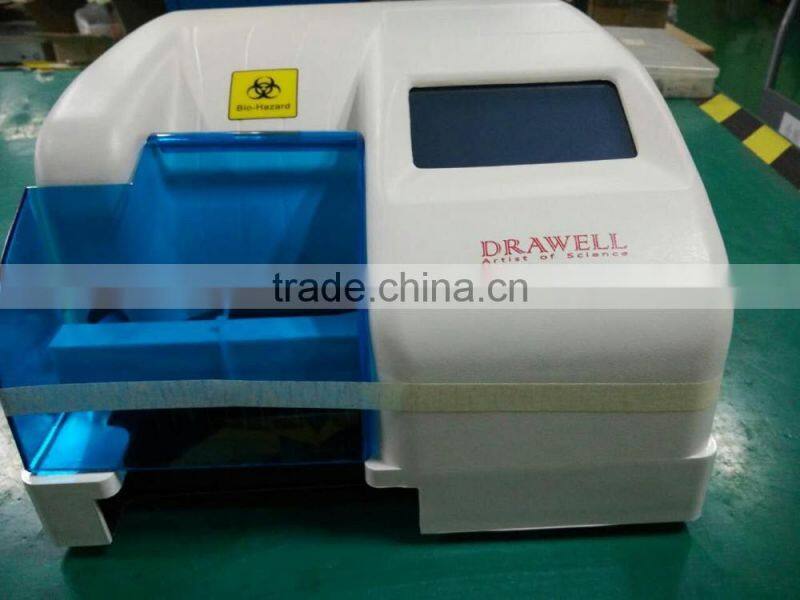

DW-SW600 Microplate Washer

Main Features:

1. Touch LCD Screen, easy operation

2. Aspirate and dispense needle are separated

3. Three channels: detergent channel, rinse channel and wash channel

4. Three kinds of different plates can be washed(include flat bottom, U bottom and V bottom)

5. Dispense, aspirate, and soak can be programmed at user’s disposal.

6. Several wash method can be chose(regular mode,2 point mode and bottom clean mode)

7. Plate shaking function and the intensity can be adjustable

8. Automatic calibrate the manifold and also fine tuning

9. Automatic monitoring pressure and vacuum, automatic rising cycle

10. Liquid waring

11. Emergency stop available can be continued

12. Large memory to store up to 99 user programmed wash protocols.

Air and liquid figure:

Main Specifications

Manifold	8 Pins and 12 Pins
Wash mode	Strip Mode and Plate Mode
Strips	1-12 (according to manifold)
Wash Volume	50-9999uL(1uL increase)
Wash times	1-99 times
Soak time	0-99 minutes 99 seconds
Bottle volume	2L (Distill Water bottle, Detergent A bottle, B bottle, Waste bottle)
Wash method	99 kinds
Plate type setting	10 kinds
Residual Volume	≤2ul
Distribution accuracy	≤5%
Imbibition s pump negative pressure	30 Kpa
Liquid exhaust	Detergent:50ml/plate Prewashing:20ml
Display	240X128 Dot matrix LCD (Touch screen)
Dimension(Instrument)	330380208mm
Input power	120VA
Power supply	AC 110-240V, 50Hz/30Hz
Working temperature	10℃—30℃
Room relative humidity	Less than 85%
Weight	9.6Kg
Storage conditions	Under the condition of outer packing Storage conditions: 40℃—55℃ Storage humidity less
Language	Standard English or Multi-language software available on request.
