Elisa Plate Washer Price

Name: Elisa Plate Washer Price
Brand: DRAWELL
SKU: 141124380
Availability: InStock

Shanghai Drawell Scientific Instrument Co., Ltd.

US$ 1,500 - 2,500 MOQ: 1 Piece

Key Specifications

Type:

Biochemical Analysis System

Brand Name:

DRAWELL

Model Number:

DW-SW800

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Type Biochemical Analysis System

Brand Name DRAWELL

Model Number DW-SW800

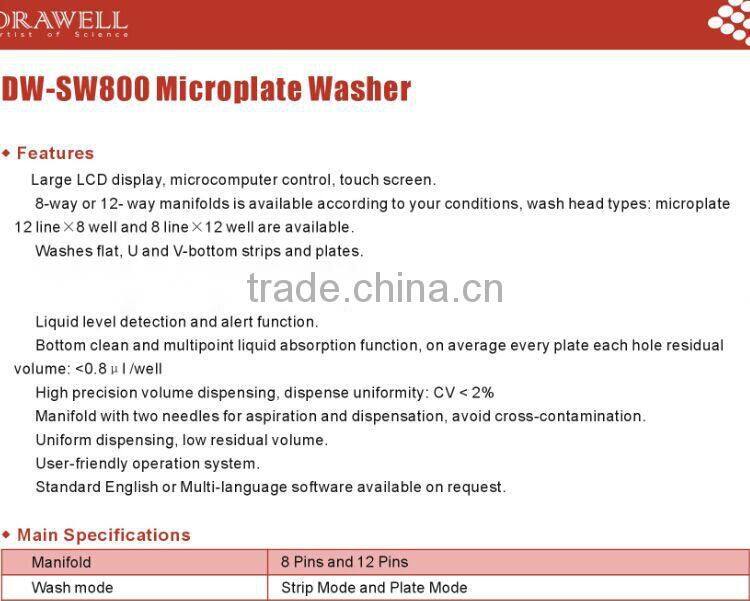

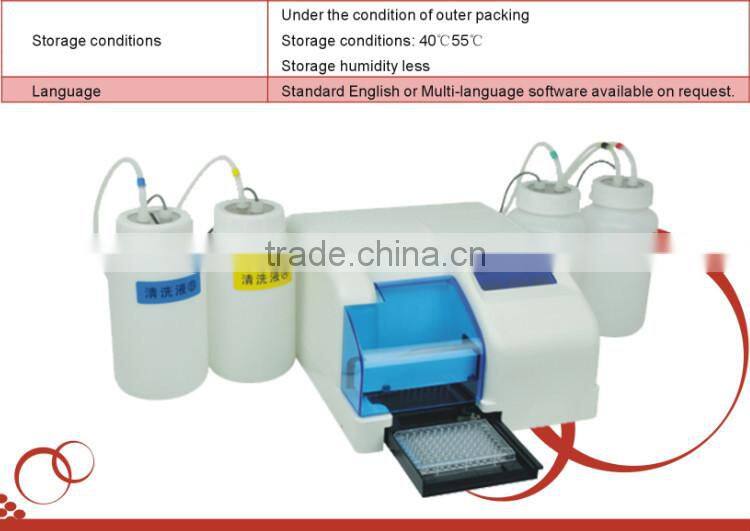

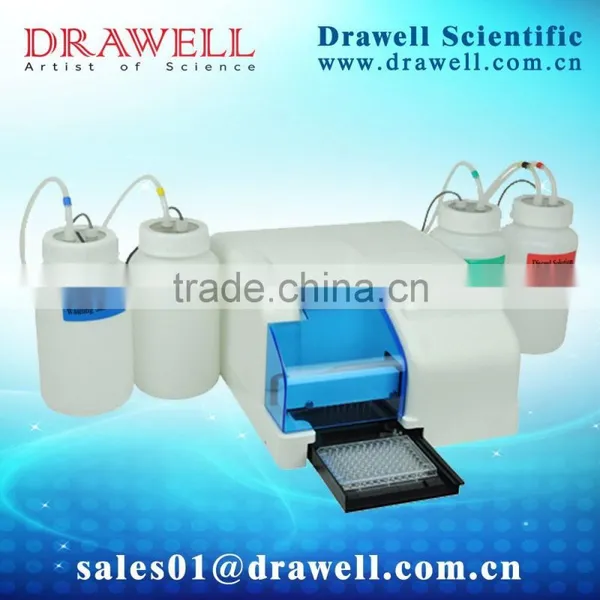

DW-SW800 Microplate Washer

Features:

-Large LCD display, microcomputer control, touch screen.

-8-way or 12- way manifolds is available according to your conditions, wash head types: microplate 12 line×8 well and 8 line×12 well are available.

-Washes flat, U and V-bottom strips and plates.

-Metal bottom holder, corrosion protection, stable plate washer.

-Plate shaking and soaking function, time adjustable.

-Liquid level detection and alert function.

-Bottom clean and multipoint liquid absorption function, on average every plate each hole residual volume: <0.8μl /well

-High precision volume dispensing, dispense uniformity: CV < 2%

-Manifold with two needles for aspiration and dispensation, avoid cross-contamination.

-Uniform dispensing, low residual volume.

-User-friendly operation system.

-Standard English or Multi-language software available on request.

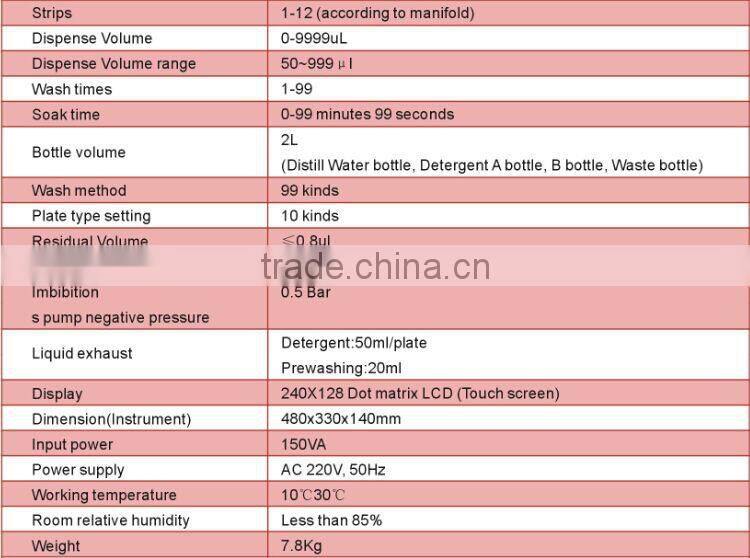

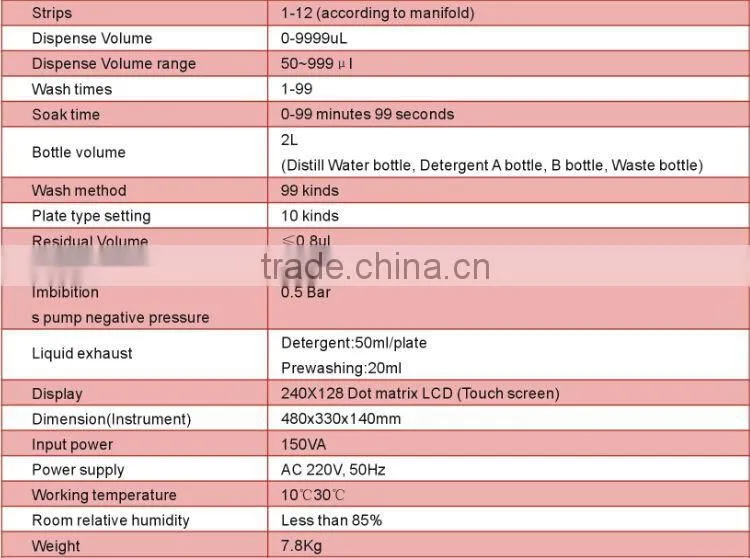

Main Specifications

Manifold	8 Pins and 12 Pins
Wash mode	Strip Mode and Plate Mode
Strips	1-12 (according to manifold)
Dispense Volume	0-9999uL
Dispense Volume range	50~999μl
Wash times	1-99
Soak time	0-99 minutes 99 seconds
Bottle volume	2L (Distill Water bottle, Detergent A bottle, B bottle, Waste bottle)
Wash method	99 kinds
Plate type setting	10 kinds
Residual Volume	≤0.8ul
Dispense repeatability	≤2%
Imbibition s pump negative pressure	0.5 Bar
Liquid exhaust	Detergent:50ml/plate Prewashing:20ml
Display	240X128 Dot matrix LCD (Touch screen)
Dimension(Instrument)	480x330x140mm
Input power	150VA
Power supply	AC 220V, 50Hz
Working temperature	10℃—30℃
Room relative humidity	Less than 85%
Weight	7.8Kg
Storage conditions	Under the condition of outer packing Storage conditions: 40℃—55℃ Storage humidity less
Language	Standard English or Multi-language software available on request.
