Home > Health & Medicine > IVD > Laboratory Full-Automatic Micro-Plate Reader With 18.5 Inch LCD Disply

Laboratory Full-Automatic Micro-Plate Reader With 18.5 Inch LCD Disply

Laboratory Full-Automatic Micro-Plate Reader With 18.5 Inch LCD Disply photo-1
US$ 800 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Biochemical Analysis System
Brand Name:
DRAWELL
Model Number:
DW-SM800
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Type Biochemical Analysis System
Brand Name DRAWELL
Model Number DW-SM800
Place of Origin Shanghai, China

DW-SM800 Full-Automatic Micro-Plate Reader

Product Description


 Features:



 -Large color LCD display, with touch screen.

-Long flexibility and reliability

-Excellent optical system

-User-friendly software

New DW-SM800 Microplate reader with 18.5 inch large color LCD display, touch screen, 96 hole Visualize cloth plate, with touch PC software.It can achieve multiple tests in the single plate.

  It is controlled by computer to complete Enzyme Linked Immunosorbent Assay (ELISA). Read 96 well microplate, analyse and report, which is widely used in clinical diagnostic laboratories, centers for disease control and prevention, animal and plant quarantine, animal husbandry and veterinary epidemic prevention stations, biotechnological industries, food industries, environmental science, agricultural scientific research and other academic organizations. It provides the reliable flexibility.



-Optical system of Microplate Reader includes one high-quality halogen lamp, 8 channel optical fibers, detectors and filters, ensure that instruments long-term stable operation, accurate measured results and free maintenance.



-Calculation modes include end point, kinetic and so on, flexible critical value of qualitative calculation

-User-friendly operation software (Optional): The software is a Windows based interface specifically for hospital laboratory and blood bank design, input/query patient data, input /query results, print patient comprehensive report for quality control chart, set the enzyme parameters for the qualitative and quantitative detection.



Technical Parameter



Display

18.5 inch LCD ( Touch Panel )

Interface

RS232    9 needles

Suitable Microplate Type

96 wells, Flat bottom, U bottom, V bottom

Shake

3 kinds of intensity(High, Medium, Low)

Memory

Large database can store huge amounts of data

Light Source

12V,20W Halogen

Wavelength range

400nm to 750nm

Optical sensor

8 photodiode

Standard filters

Interference filter 405,450,492,630nm

Reading speed

Single wavelength 6 sec, Double wavelength 10 sec.

Absorbance range

0.000 to 3.500 ABS

Resolution

0.001 ABS

Absorbance stability

±0.003 Abs

Accuracy

ΔA≤±0.01Abs(0≤A<1.0 Abs);

≤2.5%(1.0 Abs≤A≤2.5 Abs);

Sensitivity

≥0.01 Abs

Repeatability

≤0.2% (0≤A≤1.5 Abs);

≤1.0% (1.5 Abs <A≤2.5 Abs);

Channel difference

≤0.02 Abs

Linearity

≥0.999

Voltage

AC 220V, 50Hz

Power

90 VA

Size

420*260*270mm

Weight

15Kg

Working temperature

10—30

Working humidity

≤ 85%

Storage temperature

0—55

Storage humidity

≤ 95%







Detailed Images

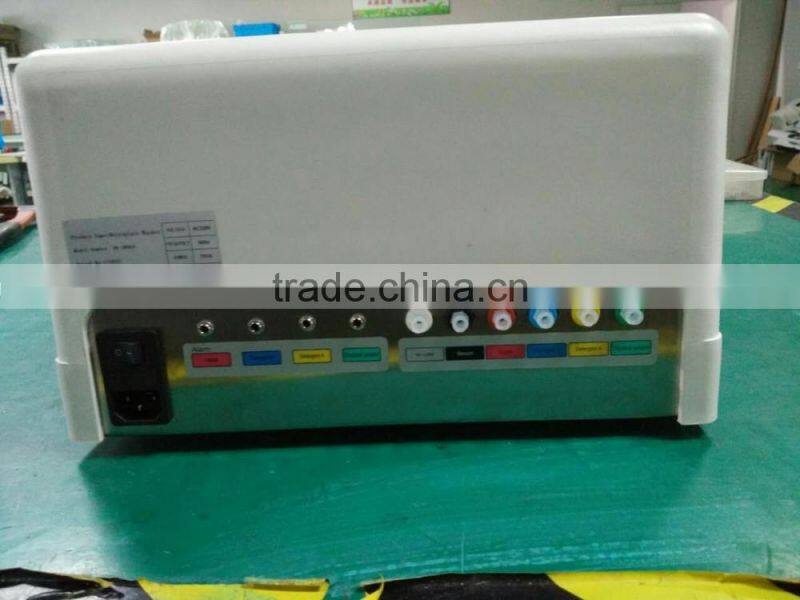

 Laboratory Full-Automatic Micro-Plate Reader with 18.5 inch LCD disply

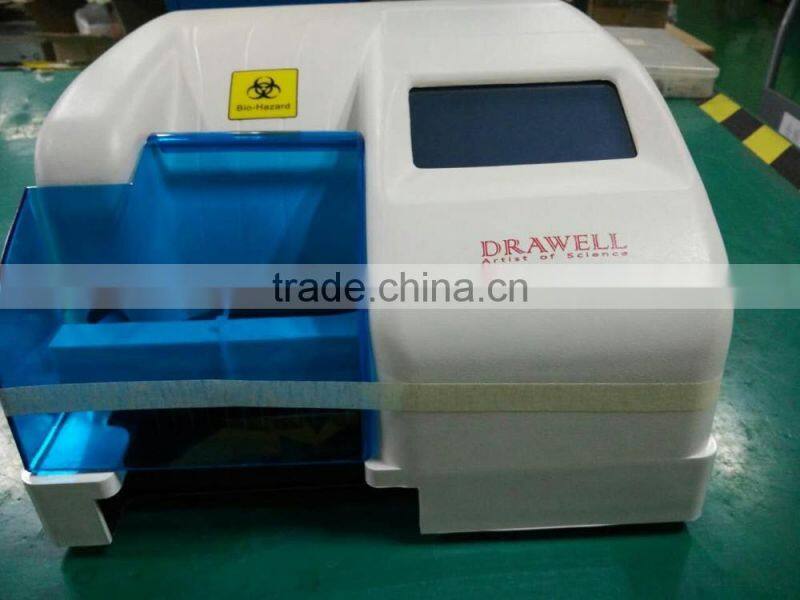

Laboratory Full-Automatic Micro-Plate Reader with 18.5 inch LCD disply

Packaging & Shipping



 Laboratory Full-Automatic Micro-Plate Reader with 18.5 inch LCD disply





Related products

 Laboratory Full-Automatic Micro-Plate Reader with 18.5 inch LCD displyLaboratory Full-Automatic Micro-Plate Reader with 18.5 inch LCD displyLaboratory Full-Automatic Micro-Plate Reader with 18.5 inch LCD disply



certification & Plug

 Laboratory Full-Automatic Micro-Plate Reader with 18.5 inch LCD displyLaboratory Full-Automatic Micro-Plate Reader with 18.5 inch LCD disply



Our Services



Drawell After Sales Service-----Please don't worry, our products are superior in quality,  If you have any problems, please feel free to let us know, we are glad to support as below:



* Good quality firstly to avoid any defective products ;

* Operation Manuals in English ; installation & operation vedio will be provided to you as guidance ;

* We could provide Online instruction ;

* During warranty time, we can send product accessories when you need;

* Your technicians can come to our factory for training , Drawell engineers can go your place for support ( cost on your side );

* Products can be customized according to your requirements;

* Generaly the machine can use 5~10 years for average even longer if you use properly.
