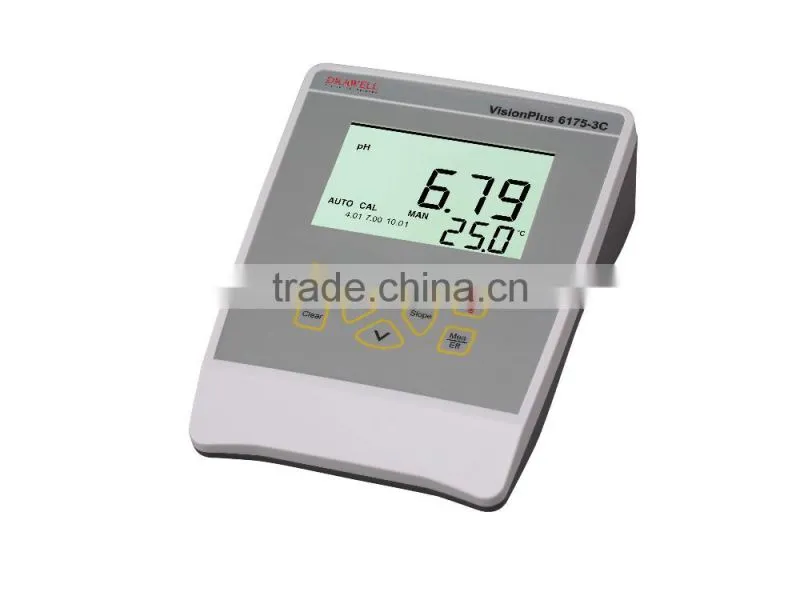

DW-PH6175 PH/mV/Ion/Temp Benchtop Meter/Halogen Moisture Teller VisionPlus

Name: DW-PH6175 PH/mV/Ion/Temp Benchtop Meter/Halogen Moisture Teller VisionPlus
Brand: DRAWELL
SKU: 141124154
Availability: InStock

Shanghai Drawell Scientific Instrument Co., Ltd.

US$ 100 - 600 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

DRAWELL

Model Number:

DW-PH6175

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name DRAWELL

Model Number DW-PH6175

pH/mV/Ion/Temp Benchtop Meter

Product Description

1. Large LCD displays pH / ORP and temperature readings simultaneously with backlight.

2. Dual buffer set selection: (4.01, 7.00, 10.01) or (4.00, 6.86, 9.18).

3. Calibration data is stored in memory and is ready for use on power up.

4. Resolution to 0.1mV for Ion measurement.

5 Automatic / manual temperature compensation.

6. Automatic lock mode and end point sensing are available to lock in stable readings.

7. AC adaptor or battery power (low battery indicator).

8 IP54 waterproof housing.

9. RoHS compliant.

Technical Parameter

Specifications
Range	pH	0.00~14.00pH
	mV	-1999.9 ~ +1999.9mV
	Temperature	0.0~100.0℃
Resolution	pH	0.01pH
	mV	0.1mV
	Temperature	0.1℃
Accuracy	pH	±0.01pH
	mV	±0.4mV (-1500.0~1500.0); ± 1mV ( -1999.9~-1500.0 and 1500.0~1999.9)
	Temperature	±0.2℃
pH Buffer Recognition		US (pH4.01, 7.00, 10.01) or NIST (pH4.00, 6.86, 9.18), user selectable.
Buffer Temp range		0.0~60.0℃
pH Calibration		1, 2 or 3 point calibration.
pH Electrode Offset Recognition		±1.50 pH
pH Electrode Slope Recognition		±30% at pH4.00, 4.01, 9.18 or 10.01.
pH Temp Compensation		Auto / manual 0.0~100.0℃.
Input Impedance		>10¹³ ohms.
Power		6 X 1.5 Volt AAA batteries or 115 / 230V AC adapter.
Operating Ambient Conditions		From 0~50℃, at 90% RH.
Case		IP-54 waterproof
Weight / Dimensions		504 grams (Including batteries) / 150mm x 203mm x 72mm
Accessories
6005P		pH, temperature, reference electrode with BNC and 8 PIN connector.
GB700E		pH, reference electrode with BNC connector.
6230AST		Temperature electrode with 8 PIN connector.
6007D115		115V AC adapter.
6007D230		230V AC adapter.
007N		Electrode holder arm.
