Home > Instruments & Meters > Analysis Instrument > pH Meter > DW-3010M Portable Simultaneous Displays Conductivity Meter

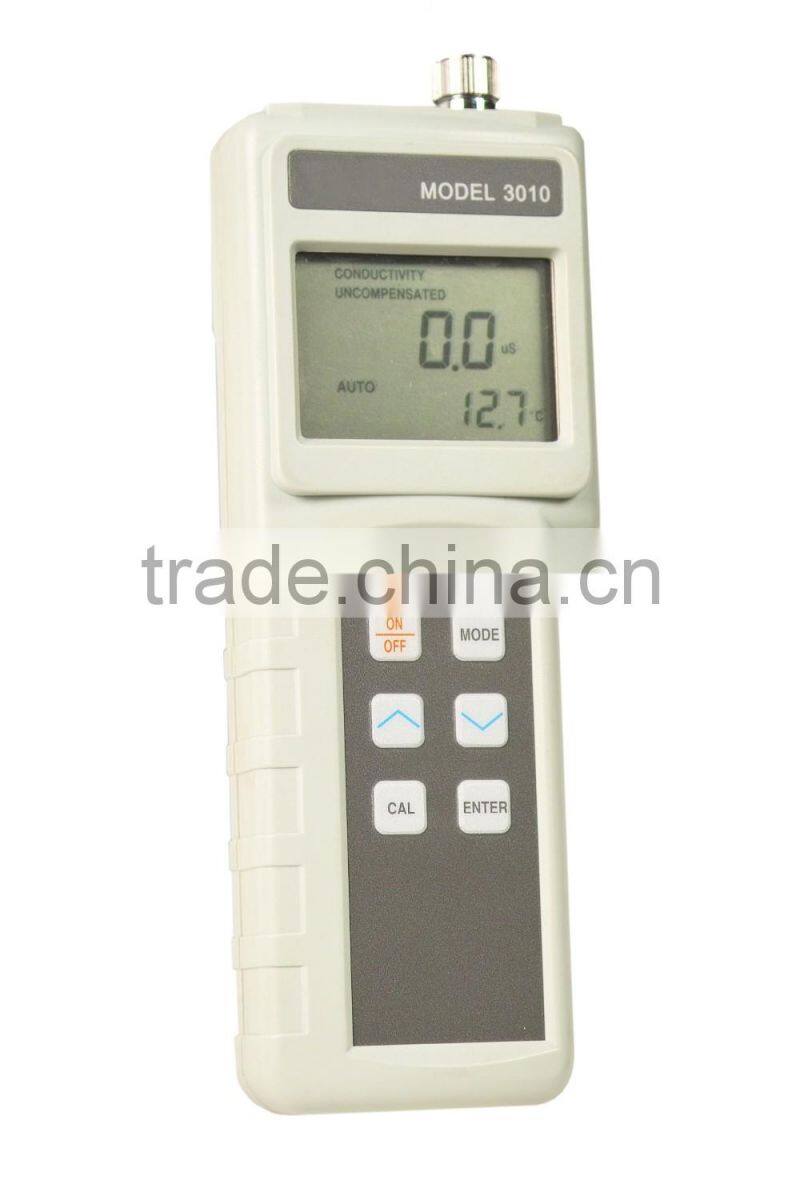

DW-3010M Portable Simultaneous Displays Conductivity Meter

Name: DW-3010M Portable Simultaneous Displays Conductivity Meter
Brand: DRAWELL
SKU: 141124144
Availability: InStock

US$ 100 - 600 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

DRAWELL

Model Number:

DW-3010M

Shanghai Drawell Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name DRAWELL

Model Number DW-3010M

EC/TDS/Salinity/Temp Portable Meter

Product Description

1. Simultaneous displays of conductivity, salinity or TDS with temperature measurements.

2. Convenient one point calibration. Calibration data is stored in memory and is ready for use on power up.

3. Selectable cell constants for true wide range readings.

4. Adjustable TDS coefficient, reference temperature, temperature coefficient.

5. Uses one conductivity cell for conductivity, salinity and TDS measurements.

6. Accepts 2-wire conductivity cells with k=0.1, k=1.0 and K=10.0 cell constants for improved flexibility and accuracy.

7. IP65 waterproof.

8. Low battery indicator.

Technical Parameter

Specifications
Range	Conductivity	0.00~20.00uS/cm; 20.0~200.0uS/cm; 200~2000uS/cm; 2.00~20.00mS/cm; 20.0~200.0mS/cm
	TDS	0.000~2.000g/L; 0.00~20.00g/L; 0.0~200.0g/L
	Salinity	0.0~ 80.0ppt
	Temperature	-10.0~120.0℃
Resolution	Conductivity	0.01uS/cm; 0.1uS/cm; 1uS/cm; 0.01mS/cm; 0.1mS/cm
	TDS	0.001g/L; 0.01g/L; 0.1g/L
	Salinity	0.1ppt
	Temperature	0.1℃
Accuracy	Conductivity	±0.5%FS
	TDS	±0.5%FS
	Salinity	±1%FS
	Temperature	±0.5℃
Reference Temperature		From 15.0 to 25.0℃, default is 25.0℃,
Temperature Coefficient		From 0.00 to 4.00%, default is 1.91%.
TDS Constant		From 0.30 to 1.00, default is 0.65.
Electrode Type / Cell Constant		Two wire conductivity cell / 0.1, 1.0, 10, default is 1.0.
ATC		Thermistor, 10K ohms, at 25℃.
Power		9 Volt battery.
Operating Ambient Conditions		From 0~50℃, at 90% RH.
Weight / Dimensions (W x D x H)		260 grams (Including batteries) / 70mm x 186mm x 37mm
Accessories
109A		Two-wire conductivity cell with 4 PIN connector, K=0.1 (0.0~200.0uS/cm).
106A		Two-wire conductivity cell with 4 PIN connector, K=1.0 (0.02~20.00mS/cm).
107A		Two-wire conductivity cell with 4 PIN connector, K=10.0 (1.0~200.0mS/cm).
