Uniclave Series medical hospital sterilization equipment with drying function

FOB Price

USD $1,300 - $6,000 / Piece

1 Piece(Min.Order)

Product Details

Type:	Dry Heat Sterilization Equipments	Brand Name:	DRAWELL	Model Number:	Uniclave FD Series
Place of Origin:	Shanghai, China

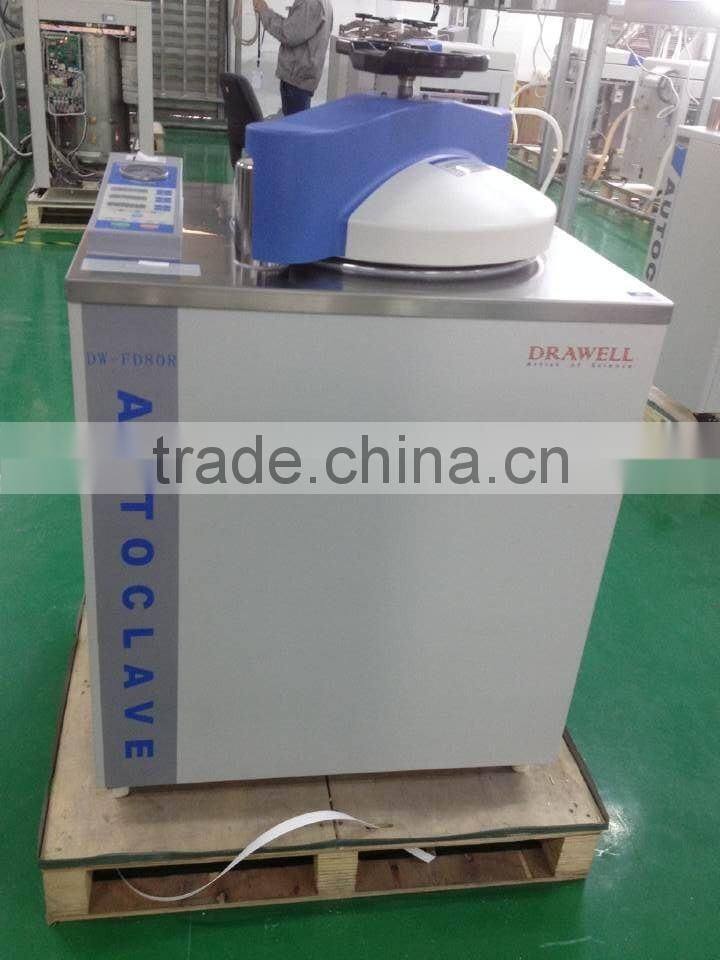

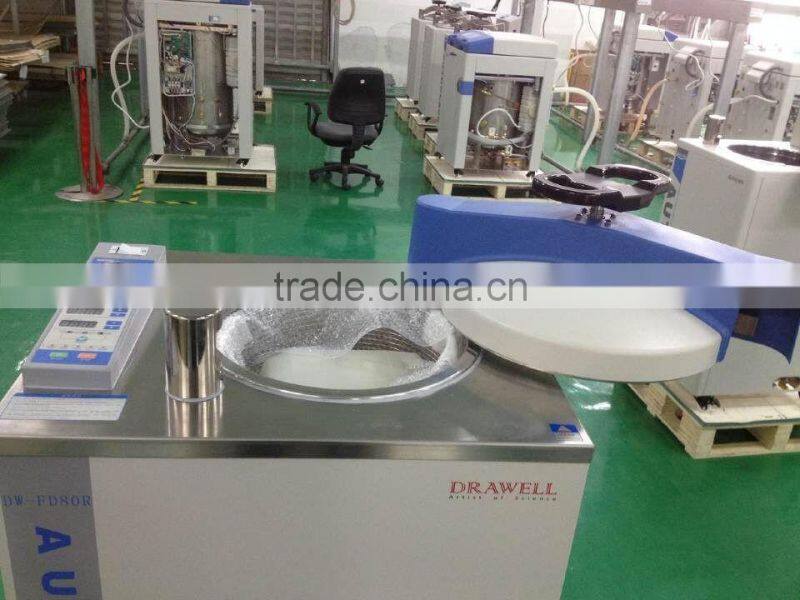

Uniclave Series Autoclave

Type A: Fully automatic, basic Model

Type R: Drying function based on Type A

Model	FD36A FD36R	FD50A FD50R	FD80A FD80R	FD100A FD100R
Capacity(L)	36	50	80	100
Outer dimension(mm)	460x542x960	460x542x1070	620x680x1042	620x680x1222
Sterilization chamber size(mm)	325x460	325x670	400x709	400x889
Rated power supply	220V 50Hz/60Hz
Rated power(W)	2300	2600	4600	4600
Working environment	5℃-40℃, relative humidity 10%-85%
Chamber material	SUS 304 stainless steel
Sterilization temperature	105-135℃
Sterilization time	1-300 min
Drying Time	1-300 min( only available for Type R)
Range of pressure gauge	0-0.4Mpa

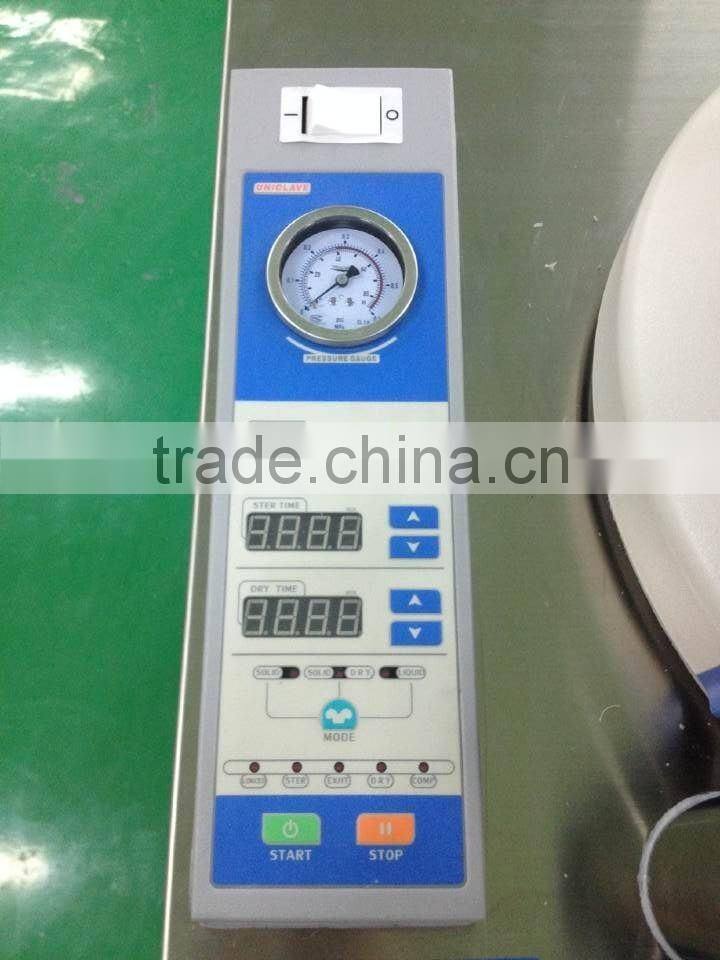

Controller	Microcomputer control system
Mode	Solid mode, liquid mode, drying function of Type R
Safety Device	Self-induction interlocking device, over temperature protection system,dry scorch protection, over pressure protection, safety valve, over current and short circuit protection, cover checking system, electric leakage protection, scald protection, automatic failure-inspection system
Standard accessories	Stainless steel bakets,waste bottle, water plate, drainage hose
Optional parts	Printer, printing set, stainless steel pails
