800cc Diesel UTV 4X4

Specifications

800cc Diesel UTV 4X4
- Water-cooled diesel engine
- CVT automatic with high-low
- Shaft drive 2wd & 4wd switch

800cc Diesel UTV 4X4

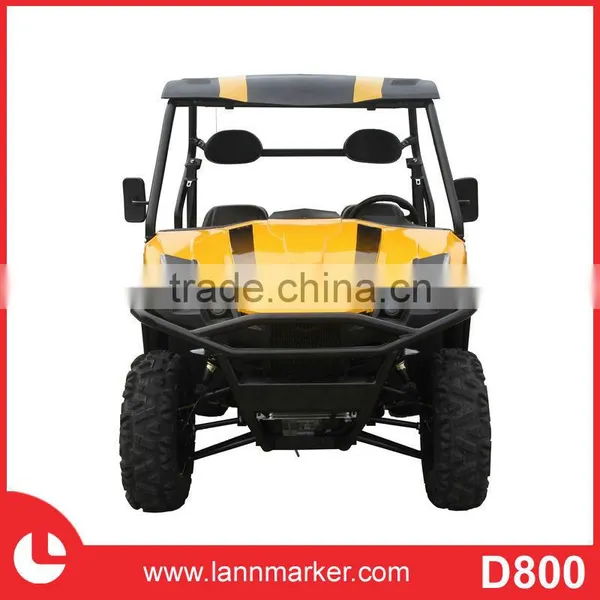

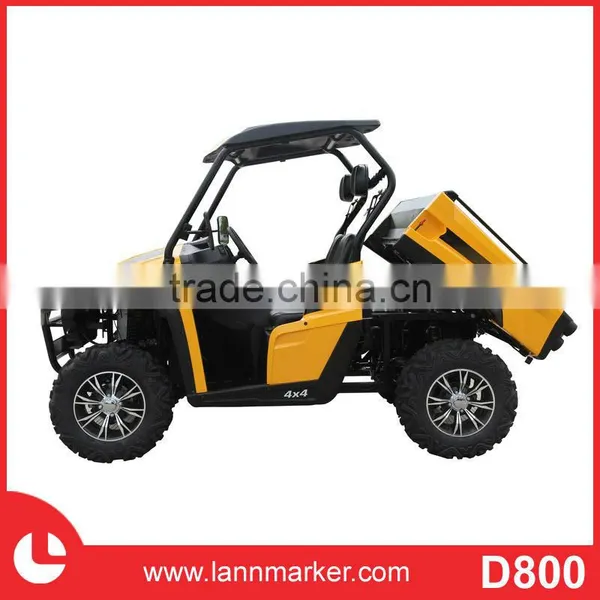

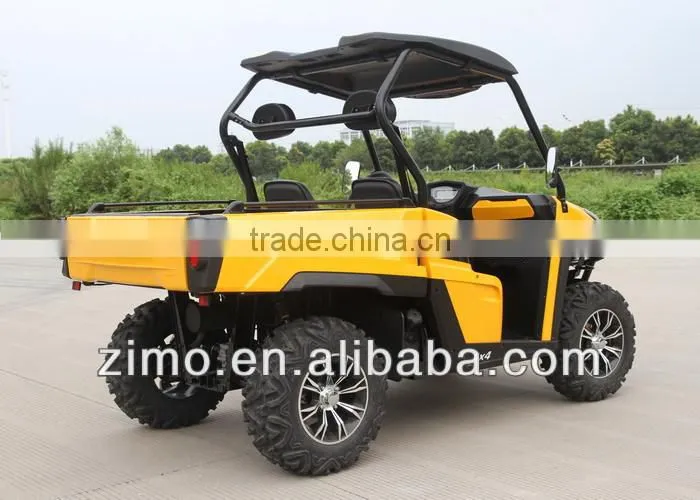

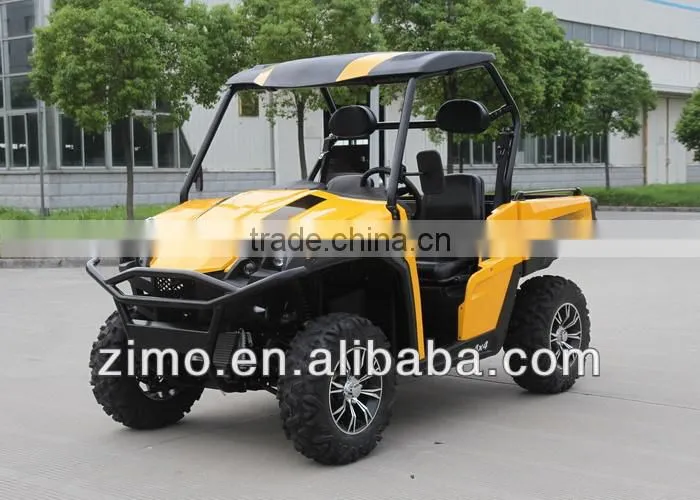

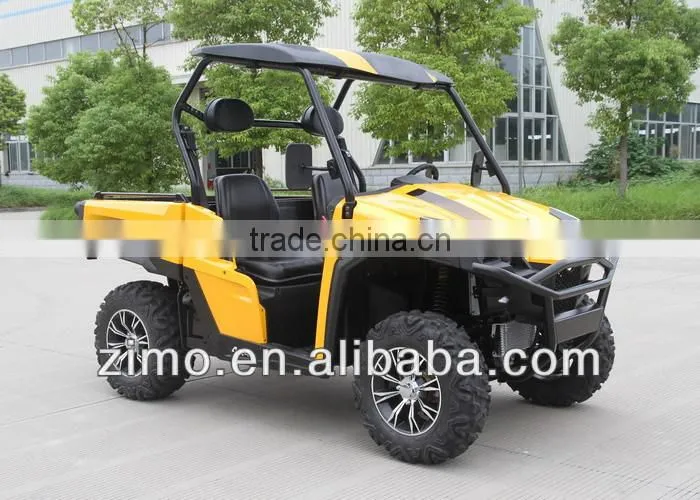

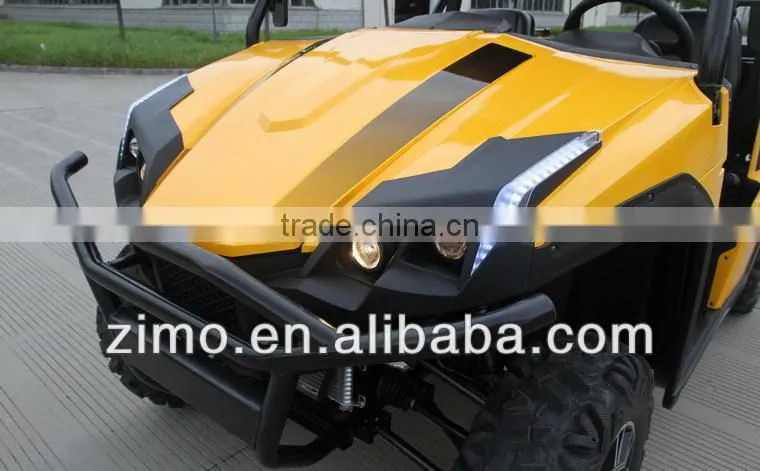

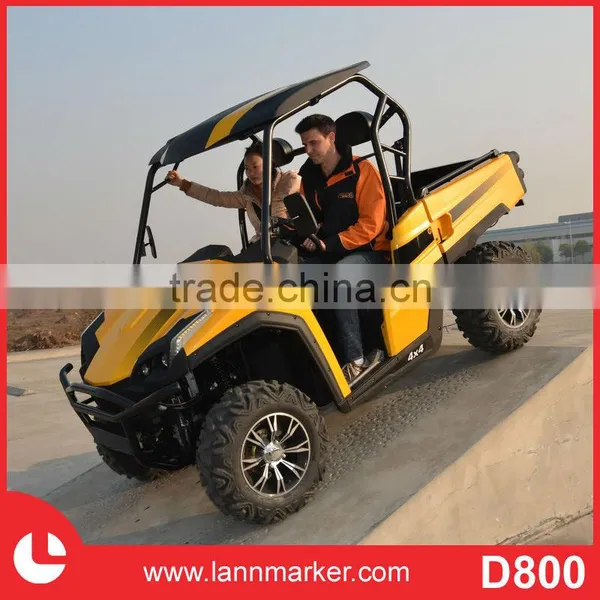

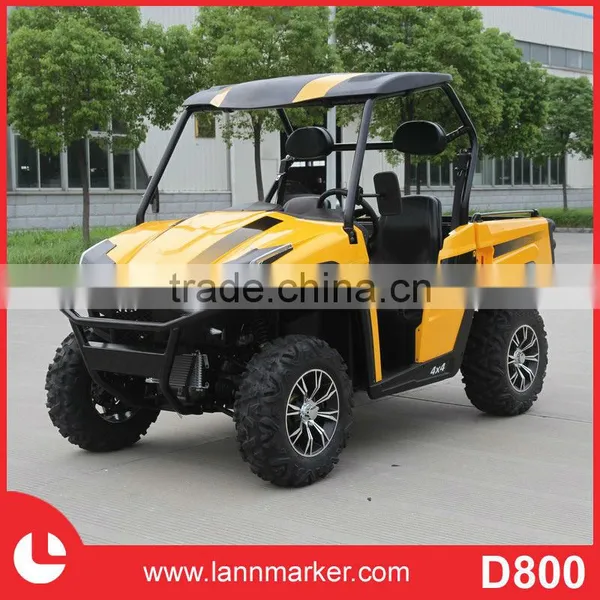

800cc Side by Side Utility Vehicle UTV 4X4 powered by Diesel Engine



LANDMAX D800 satisfy the EEC & EPA standard, they are very popular in European and American market. With the original Perkins® 800cc water-cooled diesel engine, this model has a powerful and stable PTO. It use CVT automatic transmission, with 2WD/ 4WD front and rear locking differential. The front and rear independent suspension make the vehicle very stable.



 ♦ MAIN FEATURES

• Perkins® Brand Engine from UK
• Water-cooled 800cc Diesel Engine
• CVT Automatic with High-Low
• Shaft Drive 2WD & 4WD Switch
• Front and Rear Locking Differential
• Independent Rear Suspension (IRS)

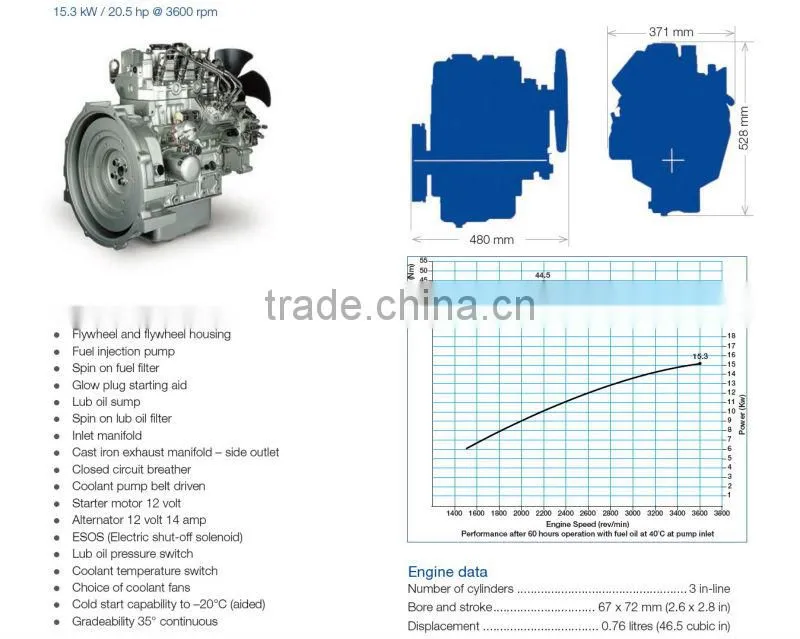

 ♦ DIESEL ENGINE







 ♦ SPECIFICATION



Engine and Feul System
Engine Type	In-Line Three Cylinder Diesel from Perkins
Displacement	762cc
Bore x Stroke	67 x 72mm
Compression	23.5 : 1
Fuel System	Fuel Injection Pump
Cooling System	Liquid 50/50 Antifreeze
Total Coolant Capacity	1.2 Litres
Max. Power Output	15.3 kw/3600r/min
Max. Torque	44.5 N.M/2200r/min
Fuel Capacity	35L (9Gal)
Transmission Mode	CVT, transmission with high,low,neutral & reverse
Final Drive	2WD/4WD Switch, F/R Locking Differential
Battery	12V 45Ah

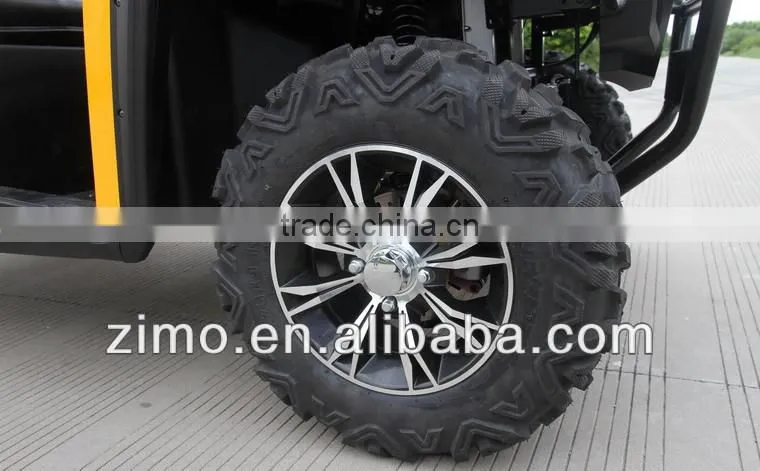

Wheels and Brakes
Front/Rear Tyres	26X9-14 / 26X11-14
Front/Rear Wheel Size	14X7 / 14X8.5
Front/Rear Shock Absorber	Adjustable Tile Steering
Brakes System	4 Wheel Hydraulic Disc
Dimensions and Weight
Product Dimension(LxWxH)	3,018 X 1,520 X 1,905mm
Carton Dimension(LxWxH)	2,320 X 1,790 X 1,250mm
Cargo Box Capacity	400 kg
Wheelbase	1,930 mm
Ground Clearance	280 mm
Dry Weight	700 kg
Gross Weight	795 kg
Container Loading	12 units/40'HQ















 ♦ OPTIONAL ACCESSORIES

• Electric Winch
• Aluminum Wheel
• Top Roof Cover
• Front Windshield
• Rear Windshield
• Electric Power Steering (EPS)



 ♦ APPLICATIONS & USES
