Help Center7.5KW Adult Electric ATV
US$ 1 - 6,750
MOQ: 1 Piece
Key Specifications
Get Latest Price
Fuel:
Electric
Power:
> 1000W
Voltage:
Other, 72V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2017 EEC Approved 4KW Cheap Electric UTVUS$ 1 - 4,150MOQ: 1 Unit -
2017 4KW Electric Utility VehicleUS$ 1 - 4,150MOQ: 1 Unit
-
2017 Hot Sale EEC 4KW Adult Electric ATVUS$ 1 - 4,150MOQ: 1 Piece
-
Factory Price 400cc China UTV 4X4US$ 1 - 4,200MOQ: 1 Unit
-
EPA Approved 400cc Side by Side UTVUS$ 1 - 4,200MOQ: 1 Unit
Fuel
Electric
Voltage
Other, 72V
Transmission System
Shaft Drive
Certification
Other, EEC
Brand Name
Lannmarker
Place of Origin
Shanghai, China
Model Number
E-UTV

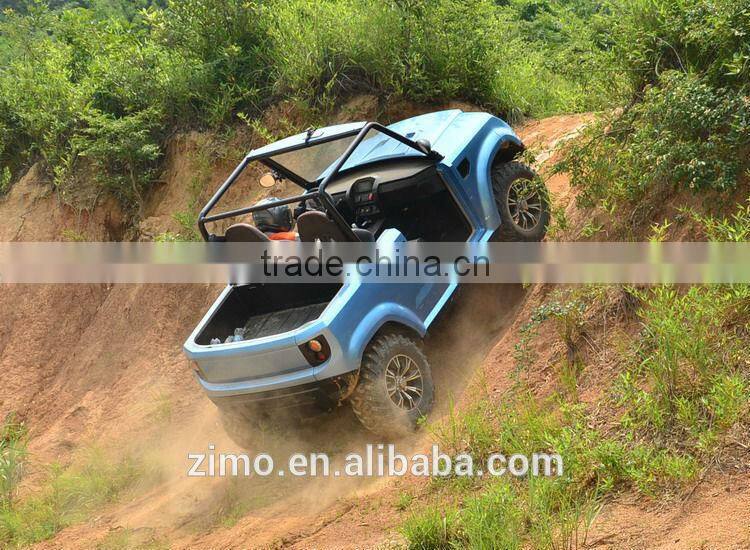

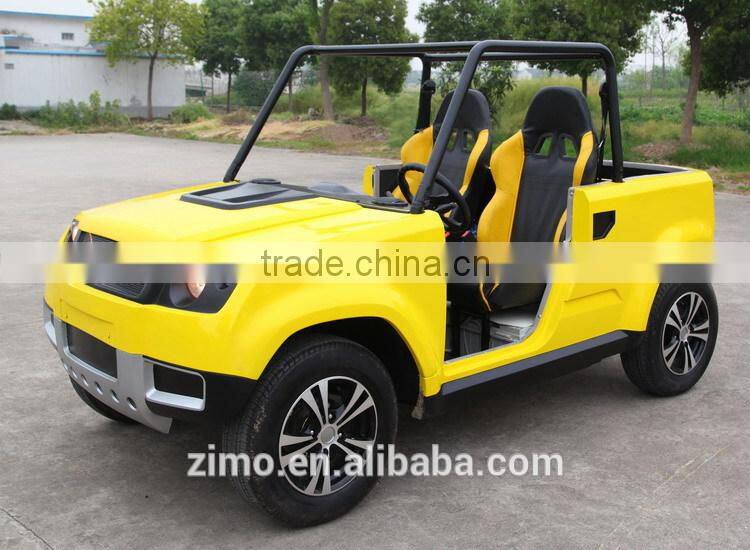

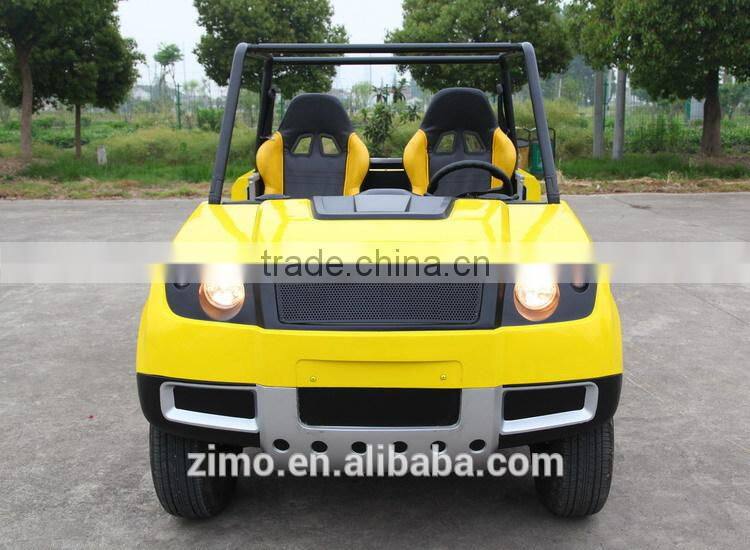

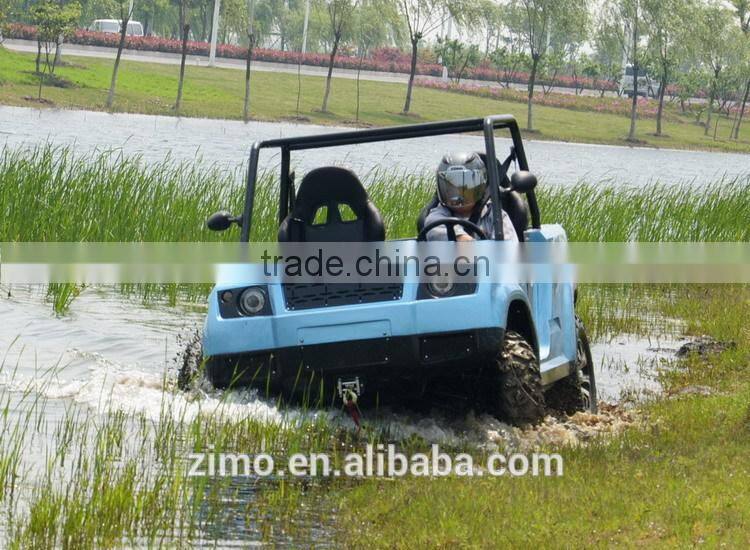

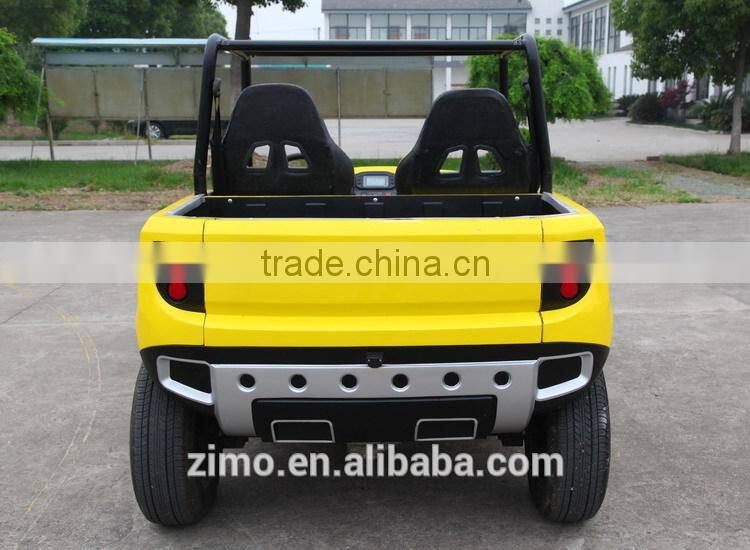

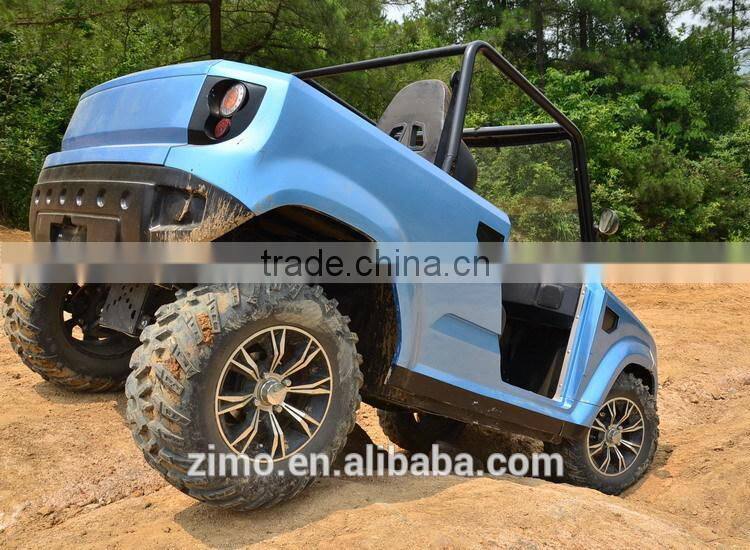

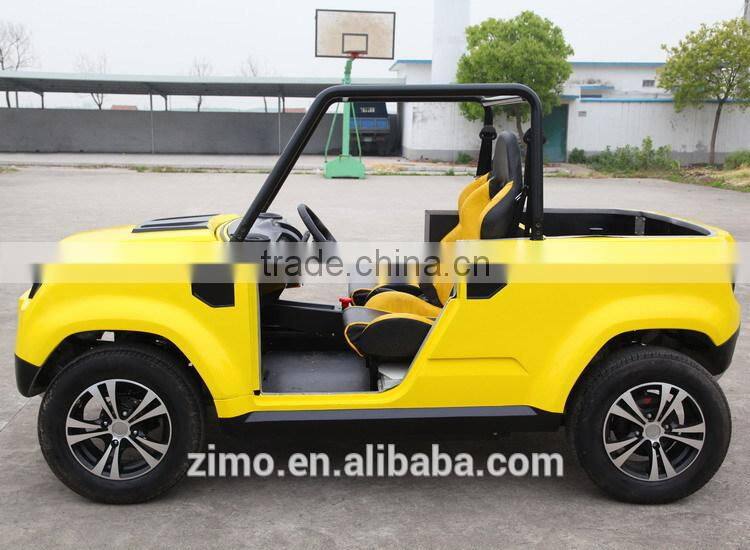

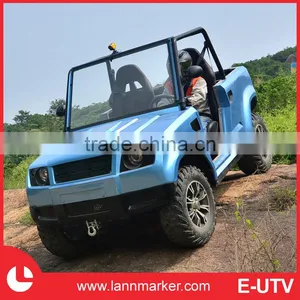

7.5KW Adult Electric ATV
7.5KW Electric UTV with Sevcon Controller and KSD Motor

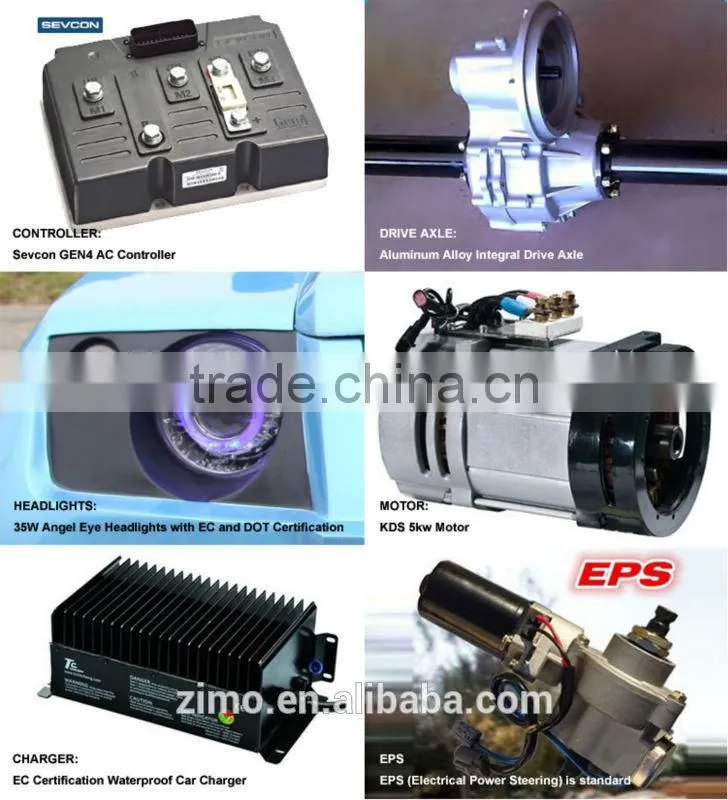

♦ MAIN FEATURES
- All electric - Zero emissions
- SEVCON® GEN4 AC Controller
- KSD®7. 5KW Brushless AC Motor
- CHILWEE® Silicone Battery 72V
- Electrical Power Steering (EPS)
- EC Certification Waterproof Car Charger
♦ SPECIFICATION
| SPECIFICATION | |
| KEY COMPONENTS | |
| Battery | 6*12V, Chaowel Silicone Battery |
| Motor | KDS 7.5kw Brushless AC Motor |
| Controller | SEVCON GEN4 72V 350A (MAX 420A) |
| PERFORMANCE | |
| Passenger Capacity | 2 |
| Range | 135 km |
| Max Speed | 42km/h |
| Minimum Turning Radius | 4.6m |
| Max Climbing Ability | 16 degree |
| Max. Movement after brake | ≤4m at 30km/h |
| Payload Capacity | 150kg |
| Net Weight | 470kg (not including battery) |
| Battery Weight | 52kg*6 (312 kg) |
| Charging Time | 6~8h |
| DIMENSIONS | |
| Product Dimensions | 2980 x 1470 x 1560mm |
| Cargo Box Dimensions | 710 x 1160 x 260mm |
| Min. Ground Clearance | 200mm |
| Wheelbase | 2020mm |
| Wheel Span | 1270mm |

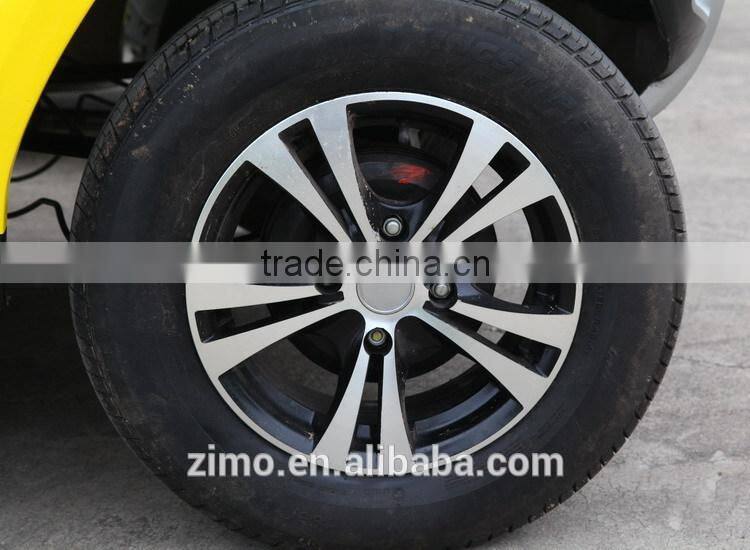

| Front and Rear Tire | 185/70-14 |
| Steering System | Pinion and Rack |
| Front Suspension | Double Arm Independent Suspension |
| Rear Suspension | Trailing-Arm |
| Chargers | Waterproof Vehicular |
| Brake System | Front: Disc Brake; Rear: Drum Brake |
| Container Loading | 12 units/40'HQ |
