2016 New Promotion Neodymium Permanent Ring Neo Generator Magnet

Chongqing Seatrend Technology & Development Co., Ltd.
2016 New Promotion Neodymium Permanent Ring Neo Generator Magnet thumbnail-1
2016 New Promotion Neodymium Permanent Ring Neo Generator Magnet photo-1
US$ 0.1 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
seatrend
Model Number:
n35-n52
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name seatrend
Model Number n35-n52
Type Permanent
Composite Other, NdFeB Magnet, NdFeB Magnet
Shape Other, ring
Application Industrial Magnet

Product name: 2016 New Promotion Neodymium permanent ring   neo generator magnet

ring Magnet Specification:

 1.Shape:Ring, customized design (design proper magnets for clients specific requirements)

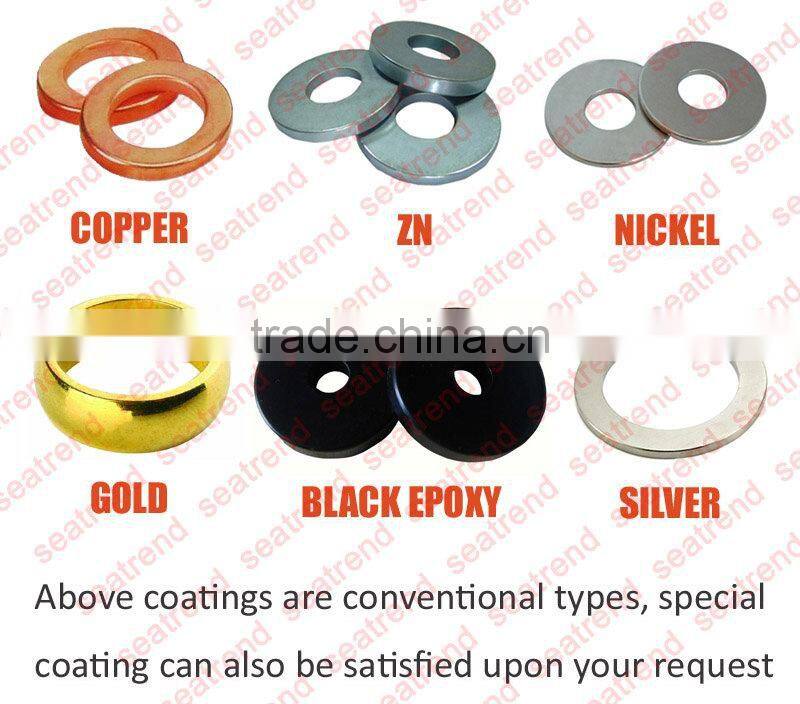

2.Coating: Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.

Surface Treatment Of NdFeB Magnet
Zn    Suitable for common environment
Double Nickle Layer Suitable for dew atmosphere and can be stably used for a long time
NiCuNiIt has a stronger protection,adhesive ability and longer working life-span
EpoxySuitable for severe corrosive environment

Phosphorization

Passivation

Suitable for the situation of short-term transportation and storage
Gold Used for high level electronic equipments and decoration

3. Grades Range: N35-N52; N35M-N50M; N35H-N48H, N35SH-N45SH; N30UH-N40UH, N30EH-N38EH

                                  -The grade like N48-N52 could meet your requirements on strong power

                                  -Standard one like N35 or N40 is okay for your normal applications

4.Maximum Working Temperature:

N35-N52,     80°C(176°F)

35M-50M,     100°C(212°F)

35H-48H,    120°C(248°F)

35SH-45SH,  150°C(302°F)

33UH-40UH,  180°C(356°F)

33EH-38EH,  200°C(392°F)

28AH-35AH,  220°C(428°F)

5.Tolerance:

+/-0.05mm for small dimensions,

+/-0.1mm for common specifications,

+/-0.15mm for big blocks

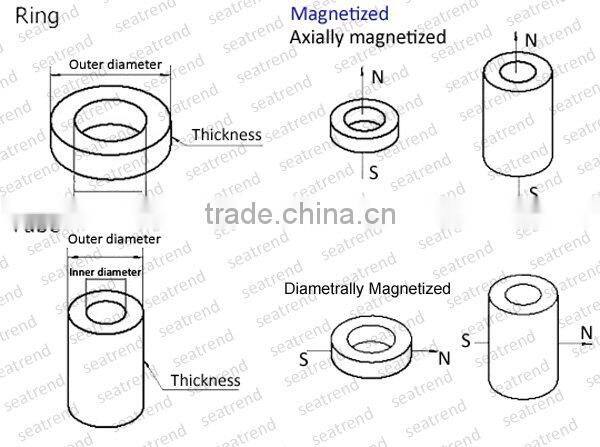

6. Directions of Magnetization:

a. Axially Magnetized

b. Diametrally Magnetized

c. Radial Magnetized

d. Multi-poles magnetized

e. Customzied specific requirements magnetized

 Axially Magnetized and Diametrally Magnetized



Technology Advantage: We have professional technical staff, the remarkable technology research center, large scale production factory

Price Advantage:We take The centralization, scale production, reduce the cost . In the same quality products,our price is cheaper than industry average.

Application:

Sintered Ring NdFeB Magnets are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, VCMs in hard disk drives, printer, switchboard, loudspeakers, magnetic separation, magnetic hooks, NdFeb Ring Magnet, magnetic holder, magnetic chuck, common daily use, and so on.

   2016 New Promotion Neodymium permanent ring neo generator magnet

Packing:

Cheapest shipping:

Product Certification:



2016 New Promotion Neodymium permanent ring neo generator magnet
Our factory:



This information is verified bycompany.



If you want to know more about   neo generator magnet , please don't hesitate to contact us.



Relevant product:



Neodymium magnet

http://preview.china.cn/product/1979490485221506856/Rare_earth_permanent_strong_sintered_neodymium_magnet_n42.html



Ring ndfeb magnet

http://preview.china.cn/product/1935572095-221506856/multi_function_high_cost_performance_large_ring_magnets.html



Disc ndfeb magnet

http://preview.china.cn/product/1957165798-221506856/widely_used_disc_plate_magnet.html



Block ndfeb magnet

http://preview.china.cn/product/1955848998-221506856/permanent_rare_earth_neodymium_block_magnet.html



Magnetic Ball

http://preview.china.cn/product/1956932330-221506856/multi_function_cheap_neodymium_magnets_spheres.html

 2016 New Promotion Neodymium permanent ring neo generator magnet
