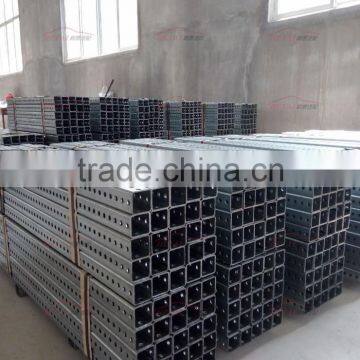

Outdoor galvanized perforated steel square road traffic sign post

Item: Steel perforated sign posts

Steel Grade: Q235B steel

Surface Treatment: Galvanized, Galvanization is based on ASTM A653 G90 (Zinc 275g/M2)

Wall Thickness: GAUGE 12

Hole: 7/16" diameter holes on 1" centers, full-length and 4 sides punched, 1/2" from one edge of square tube to the first hole center.

Outdoor galvanized perforated  steel square road traffic safety sign post

Specifications

MATERIAL

Tubing with plain finish is rolled from 12 gauge (0,105 U.S.S. Gauge) and 14 gauge (0,075 U.S.S. Gauge) hot rolled steel, Q235b. Galvanized finish, average minimum yield strength after cold forming is 60 000 psi.

GALVANIZATION

Galvanization shall conform to specification ASTM A653 G90 (275g/m²). Corner weld is zinc coated after scarfing operation.

TOLERANCES

Wall thickness tolerance:

Permissible variation in wall thickness is + 0,011, -0,005 inches.

* Tubing may have its sides failing to be 90° to each other by tolerance listed.

**Twist is measured by holding down the edge of one end of a square tube on a surface plate with the bottom side of the tube parallel to the surface plate and noting height that either corner on the opposite end of the bottom side is above the surface plate.

Convexity and concavity: Measured in the center of the flat side, tolerance is ±0,010 inch applied to the specific size determined at the corner.

Straightness tolerance:Permissible variation in straightness is 1/16” in 3 feet.

Telescoping: Using 12 gauge or 14 gauge square tube, consecutive size tubes shall be cleaned of galvanization burrs and shall telescope freely for ten feet.

Hole tolerance: Tolerance on hole size is ±1/64” on a 7/16” hole size. Tolerance on hole spacing is ± 1/8” in ten feet.

Standard seaworthy packing, bundle, container, etc.
square tube with punch packageing: 25pcs/bundle

 1.cargo track service during transporting and feedback service after cargo is loaded on board.

 2.flexible terms of payment by T/T and L/C.

 3.big discount for repeat customers.

 4.smooth delivering procedure.

Company Introduction

Rizhao City Hetai Automobile Fittings Factory was established in March 2007, which is located in Wulian County Industrial Zone, and covers an area of 5000 square meter. There are 53 employees and 5 senior technicians. The fixed asset is over 3 million RMB yuan. The main productions are as follows,

Forged steel and casting iron parts -- kettlebell, dumbbell, barbell, pipe fittings, hand tools, etc;

Cold bending/stamping/welding parts -- photovoltaic bracket, roadway signage bracket, sign posts, etc.

Auto Parts -- automobile air compressor, brake valves, safety valves and other metallic auto parts.

We supply our products to many famous automobile companies in China, and we also do OEM business with foreign customers all over the world.

Our factory has full sets of modern high-precision production and testing equipmen We have passed the GB/T19001-2008/ISO9001:2008 certification, and we have a number of domestic inspection certificates.

Concept innovation, Product innovation and Integrity service, all of them is our tenet for ever. With high-quality products, competitive price and wholehearted after-sale services, we will hospitably cooperate with all our customers to create a bright future.

1. Can I negotiate the prices?

Yes, we may grant discount for FCL of mixed products or bulk orders of individual products. Sometimes, we may launch some promotion, more discount would be granted.

2. What is the minimum order quantity?

The MOQ has been indicated on the product page, we can accept small orders, prices will be higher, though.

3. How long do you need for production and delivery?

Normally, for regular designs and models, we need 20-30 working days to produce after receive your deposit and all order details are confirmed. Different order quantity, different delivery time, please confirm with us when you are ready to place an order.

Transportation by sea or by air, Customs clearance and inland transportation will need, another 20-30days. So please place orders in advance to make sure you have products to sell on busy season.

4. What warranties you have for your products?

If you find defects after you received the goods, please send us defects photos with quantity so we can check the reason, if it is quality problems or our faults, we would cover your loss, send replacements or grant special discount for your coming orders.

We shall not be liable for any discrepancy of the goods shipped due to causes for which the Shipping Company, other Transportation Organization /or Post Office or in consequence of any Force Majeure incidents which might occur. Force Majeure as referred to in this contract means unforeseeable, unavoidable and insurmountable objective conditions.

If it is quality problems or damage caused by inappropriate packing method, we will cover the loss. Need 1-3 working days to find out the reason and tackle for you.

5. Payment terms:

Standard term is 30% deposit by T/T in advance, pay the balance before shipment. Long-term business partners can get better terms like LC.
