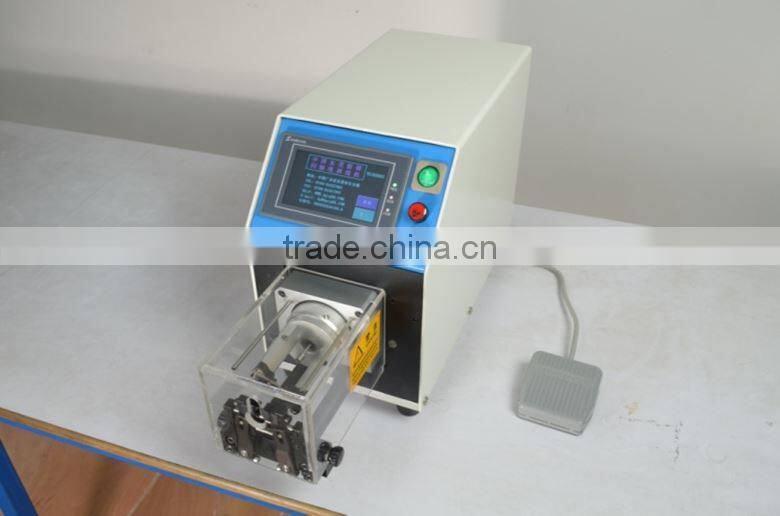

schleuniger coaxial cable stripping machine BJ-05TZ
Features:
It adopts the most advanced carbide tuming and accordingly improve the accuracy and speed.It is main used for the process of coaxial-cable and special single line.
It adopts the axis positioning device and carbide tuming and can peel at most 9 stratums without changing the blade.Alao,it can equip with Set Controller and display the cutting diameter.
Technical Parameter:
Name | BJ-05TZ Coaxial Stripping Machine |
Cable Type | coaxial-cable,tri-axial cable,shield wire,rigid cable |
Max. Cable Dimater | 0.2-up to 6.99mm |
Cutting depth of the unit | 0.01mm |
Max. peeling length | 48mm |
Max. peeling stratums | 9 |
Drive mode | Motor/ Ball screw drive(Japan) |
Display | Touch screen |
Blade | 2 pieces Material:imported tungsten steel(Switzerland) |
Centering slab | 2 pieces Material:imported tungsten steel |
Trapper | Automatic self aligning,motor drive, the clamping process control |
Productivity | 500-700pcs/h(depend on the cable length and type) |
Opening way | Manual operation/Pedal |
Power | 220V/50Hz 380W |
Weight | 19Kg |
Boundary dimension | 525x186x278mm |
Work environment | 0-45°C,moderate dry,non-shake |
schleuniger coaxial cable stripping machine BJ-05TZ
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
schleuniger coaxial cable stripping machine BJ-05TZ...
