Automatic Wire Stripping Machine, Wire Cutting Machine, Wire Stripper Machine BJ-02F
US$ 850 - 980
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOJIN
Model Number:
BJ-02F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ultrasonic Label Cutting and Folding Machine BJ-40SUS$ 1,800 - 1,840MOQ: 1 Unit -
Automatic Label Cutting and Folding Machine BJ-30SUS$ 1,610 - 1,650MOQ: 1 Unit
-
Electrical Magnet Wiring Cutting MachineUS$ 1,100 - 1,200MOQ: 1 Piece
-
Electric Motor Winding Wire Cutting MachineUS$ 650 - 750MOQ: 1 Unit
-
Enamel Coated Magnet Wire StripperNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
BOJIN
Model Number
BJ-02F
Usage
Other, Stripping, automatic
Product Description
Our Wire Stripping Machine is China's NO.1 selling wire strippers.
We manufacture wire stripping machine, wire stripper, tape cutting machine, tube cutting machine, label cutting machine, automatic tape & label dispenser, automatic label rewinder,etc. High quality & low price!

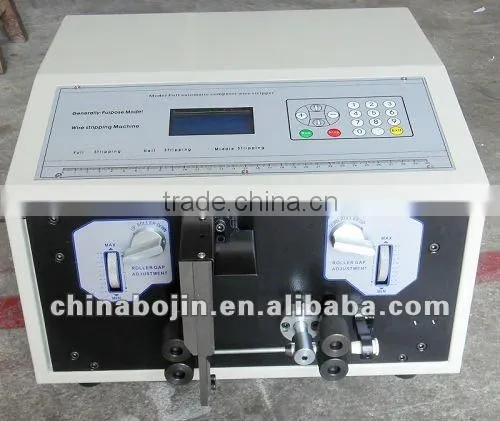

Automatic Wire Stripping Machine, Wire Cutting Machine, Wire Stripper Machine BJ-02F
| Model: | BJ-02F FOUR DRIVERS |
| Power: | AC220/ 50HZ 110V/60HZ |
| Power: | Rated 300W |
| Display: | Full English LCD Display |
| Cutting length: | 1-9999mm |
| Stripping length: | End of a thread 0-35, line tail 0-15 |
| Motor Step Angle Accuracy: | 3-phase 6 shot 1.5/3 |
| Cutting Tolerance: | ±(0.002xL) mm or less |
| Cut the middle of stripping: | 11 |
| Core cross-section cut-line: | 0.2 - 8.0mm2 |
| Conduit diameter: | Φ10 |
| Appropriate wire stripping: | PVC, Teflon, glass and wire |
| Blade Material: | Hard tungsten steel |
| Stripper speed (Article / h): | L:100mm, 3000~7000pcs/hour |
| Drive Mode: | Four drives |
Operation Video
/watch?v=qtomFlj3zA8
Company Information
Our Services
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Wire stripping machines
Model Number | BJ-02B | BJ-02D | BJ-02F | BJ-02MAX |
Wire size | 0.1~2.5 mm2 | 0.1- 4.5mm2 | 0.2 - 8.0 mm2 | 0.2– 16mm2 |
Conduit diameter | Φ6 | Φ6 | Φ10 | Φ13 |
Wire Gauge Range | AWG16 - AWG32 | AWG12 - AWG32 | AWG8 - AWG32 | AWG5-AWG30# |
Drive Mode | Four-wheel drive | Four-wheel drive | Four-wheel drive | Four-wheel drive |
Weight | 35kg | 35kg | 35kg | 35kg |
...
