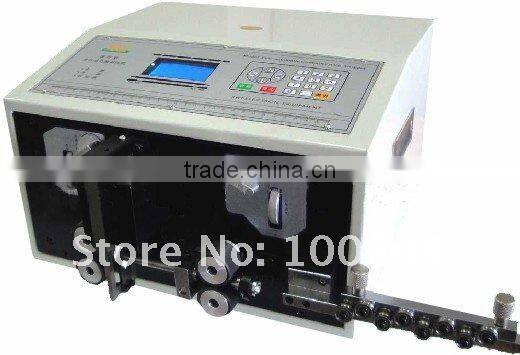

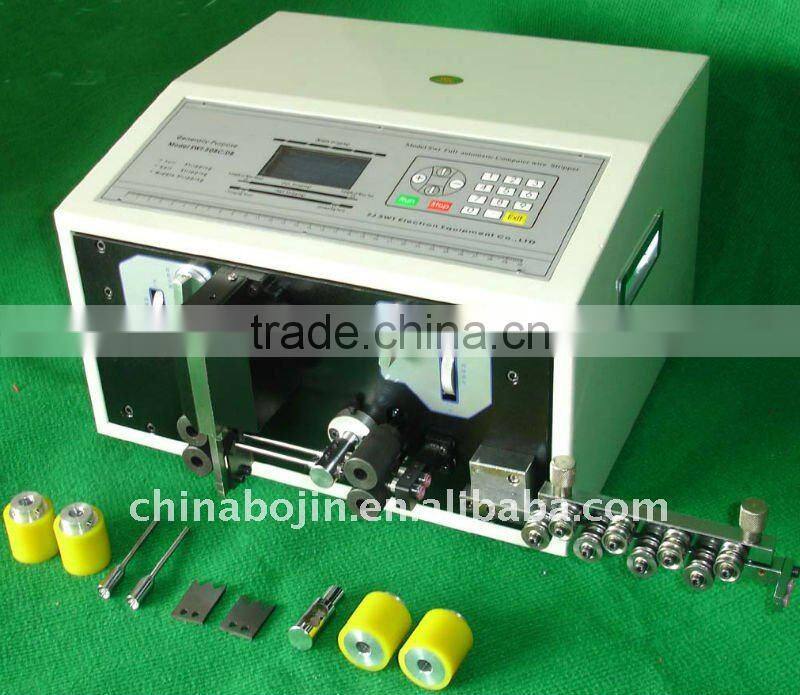

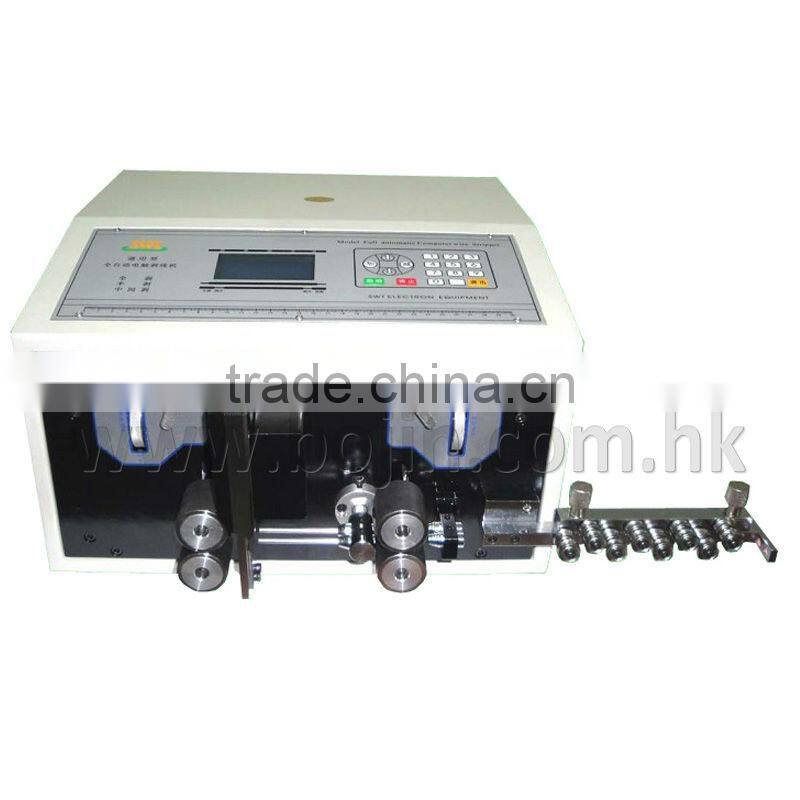

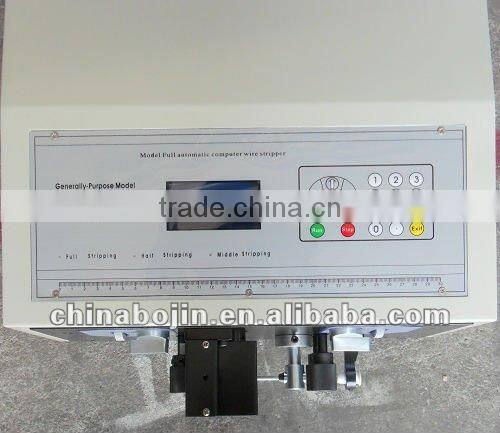

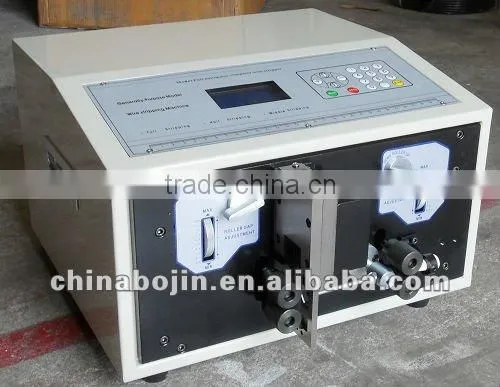

cable wire Stripping machine
1) Model: BJ-02B
2) Wire Gauge Range:: AWG16 - AWG32
3) Cutting Length: 1mm ~ 9999mm
4) Memory Function: Max. 99 Groups
We manufacture automatic tape & label dispenser, auto label rewinders, wire stripping & cutting machine, label cutting machines, etc. High quality & low price!

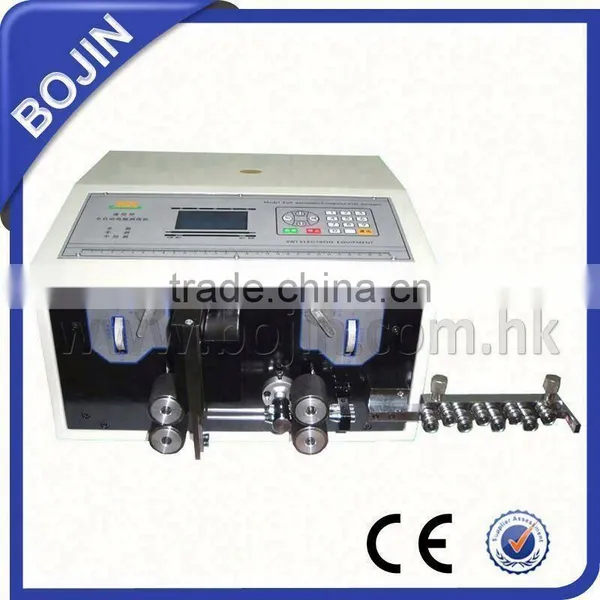

Automatic Wire Stripping Machine, Wire Cutting Machine, Wire Cutting & Stripping Machine/four short two-lane model, Shortest length: 20mm
| Model: | BJ-02B four short two-lane model |
| Power: | AC220/ 50HZ |
| Power: | Rated 200W |
| Display: | Full English LCD Display |
| Cutting length: | 1mm-9999mm |
| Stripping length: | End of a thread 0-35, line tail 0-15 |
| Cutting Tolerance: | (0.002xL) mm or less |
| Cut the middle of stripping: | 11 |
| Core cross-section cut-line: | 0.1~2.5mm2 |
| Conduit diameter: | Φ6 |

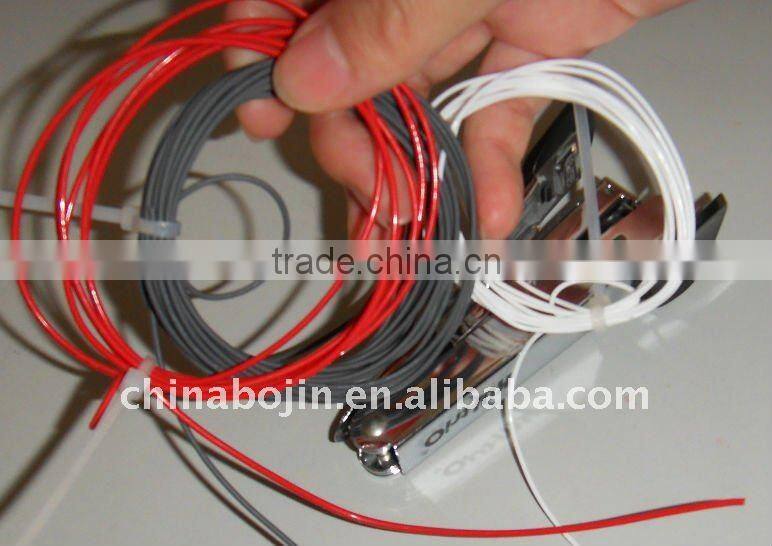

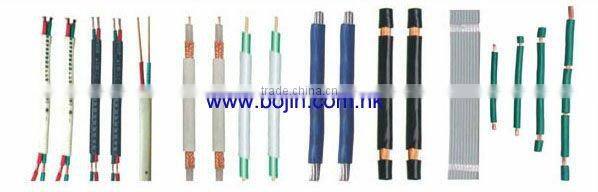

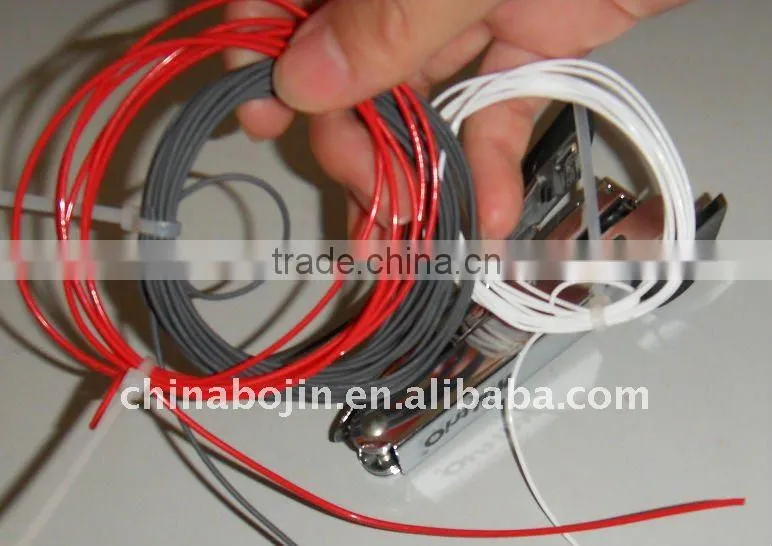

| Appropriate wire stripping: | PVC, Teflon, glass and wire |
| Blade Material: | Hard tungsten steel |
| Stripper speed (Article / h): | 3000-150000, L=100mm |
| Drive Mode: | Four-wheel drive |
Operation Video
/watch?v=pUXVqTbAzPI
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Wire stripping machines
Model Number | BJ-02B | BJ-02D | BJ-02F | BJ-02MAX |
Wire size | 0.1~2.5 mm2 | 0.1- 4.5mm2 | 0.2 - 8.0 mm2 | 0.2- 16mm2 |
Conduit diameter | Φ6 | Φ6 | Φ10 | Φ13 |
Wire Gauge Range | AWG16 - AWG32 | AWG12 - AWG32 | AWG8 - AWG32 | AWG5-AWG30# |
Drive Mode | Four-wheel drive | Four-wheel drive | Four-wheel drive | Four-wheel drive |
Weight | 35kg | 35kg | 35kg | 35kg |
...
...
