Scrap Cable Stripping machine Portable For AWG16-30
| Model | Portable Wire Stripper BJ-0319 |
| Rated voltage | 220 volt 50 Hz 110 volt 60 Hz |
| Stripping length | 1.5-10mm |
| Rated current | 260mA 0.44amp |
| Rated input | 20watt |
| Power cord | 1.8m long with molded on plug |

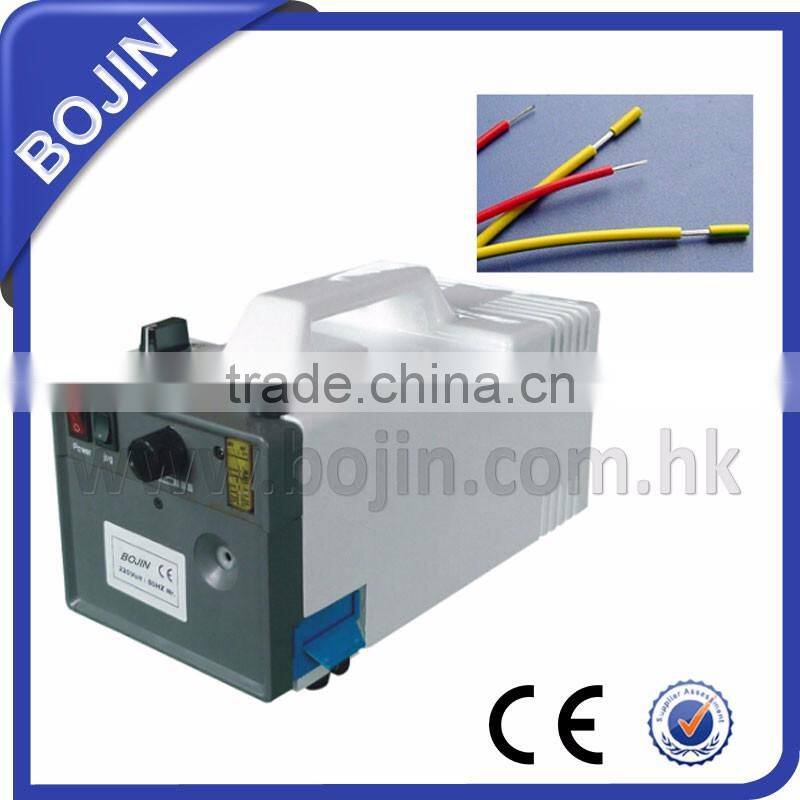

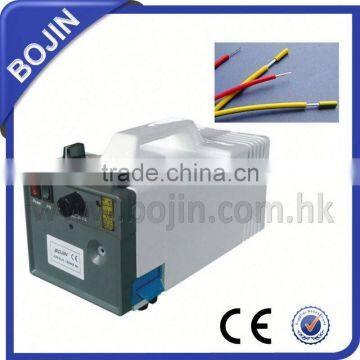

Scrap Cable Stripping machine Portable For AWG16-30
1) This machine is adopted with most advanced rotary blades, very light and portable.
2) Highly portable unit for the precise stripping of discrete wires and small multi-conductor cable.
3) Production capacity varies depends on the type of production
4) One-year warranty, full-life service
5) CE Approved
Technical parameters of machine
* Stripping length: 1.5 to 10mm
* Stripping range: Stranded wire: 0.05 to2.5mm2 AWG 30 to 14
* Solid wire:0.25 to 2.5 mm dia. AWG 10 to 30
* Max.insulation :Diameter: 4.2mm (1.4mm with clamping head )
* Min.free length Of cable jacket: 12.5mm+stripping length
* Stripping length: 1.5-10mm
* Strippable wire: Teflon, PVC or similar insulation type
* Rated voltage: 220 volt 50 Hz 110 volt 60 Hz
* Rated current: 260mA 0.44amp
* Rated input: 20watt
* Power cord: 1.8m long with molded on plug
German standard
North American
* Weight: 6.5kg
* Machine dim.: 340mm*150mm*170mm
Packing:
1, Outside Package, standard export wooden cases.
2, Inner package, stretch film.
Delivery detail, about 7 work days after payment.
Operation Video
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
