Scrap Cable Wire Stripping Machine

scrap cable wire stripping machine

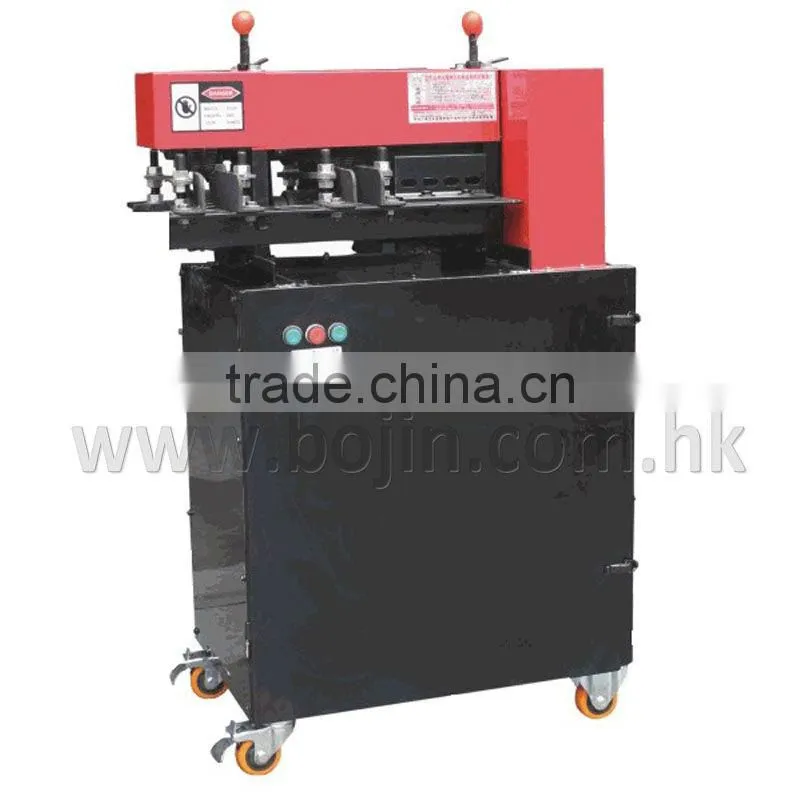

BJ-918B scrap wire stripper is the most popular multi-functio wire stripping equipment at present. The greatest fature of this machine is the upper shaft can be adjusted to work for the minimum diameter of 1.5mm single wire to the maximum diameter up to 100mm rubber cable.

This cable stripping machine is the best choice for small recycler of cable recycling.
Cut the waste cable into 1-2 meters.
Put the waste cable into the hole of cable stripper.
Cable stripped will go out from another side.
Use hand to separate the copper core and PVC/PE cover
Get the copper and PVC/PE, and sell to smelters and refiners.
Should you need cable stripper, cable slitter, cable stripping machine, please contact us

today!

Application

Diameter from 1.5mm to 98mm

This machien is widesly used among the wire stripping inustry. It can peel fiber optics protective covering flat wire, the outsourcing metal steel silk thread, he rubber electric cable line and high tension cable. It can process 1.5mm diameter monofilament, shealth line and steel wire line and so on. The increase diameter, the upper shaft can be arbitrary up and down.

Attention

1.  Operator should pay special attention to the safety of hands. FATIGUE OPERATION IS FORBIDEN!

2. The pressure should not be too tight. Overload work will shorten the life span of the machine.

3. If the cabel cannot get through, operator has to check wether the belt is loose or th pressure is too tight, or the blades are wrong directed.

4. If this machine work with heavy duty for a logn time, operator has to check the reansmission oil capacity, grease lubrication is required on the fur shaft gears before working every three months.

5. Keep daily maintenance of the four bearings, any damage of bearing will cause shaft roken easily after continuous operating.

6. When work wth igger size cables, the upper shaft should be kept hanging on thesame line by both sides.

7. Any loosing ofthe four lifting screw nuts of the transmission an dmotor have to be adjustred by fastening the chain and V-belt. Note: the poslition of transmission and the motor have to be kept parallet.

If the copper wire and rubber or plastic cannot be separeated completely, plese pay attenton as below:

1. Choose the rigt feedig hole, adjust the positioning fixture via the diameter of cable.

2. Ajust the gap between the drove-gears acoordin to the diameter of cable and the point mentioned in "3" of the following picture. Basically, the gap should be smaller than the diameter or cable.

3. Keep both sides of the long blades to be symmetrical, as well as the long blades and the position of fixture.

We Provide

• Best products and factory price.
• On-time delivery and the shortest delivery time.
• 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
• OEM and customized service.
• User manuals will go with relative machines.

Service

• QC: All products will be checked before delivery.
• Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
• Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
• Operation Guidance:If you have any problem with operation, please feel free to contact us.

....
