crimp connector terminal
We manufacture all kinds of Terminal Crimping Machine . High quality & low price! and provide OEM service.

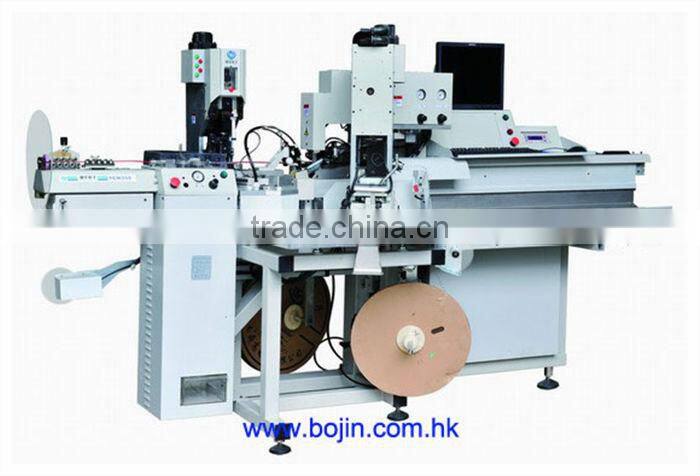

1.The first machine researched & developed independently in China. Special designed for Automobile Harness.
2.Modularized design, different functions can be attached: sealing, twisting, tinning wires.
- High-tech: the outstanding mechanic, electric and pneumatic integration.
- High-precision: servo-controlled module to realize the precise locating.
- Super-high speed: double closed loop length measurement module to realize the perfect integration of precision and speed.
- Independent intellectual property rights: independent R&D of the whole-machine, machinery and electric control. Additional functions are extensible.
- Ergonomic design: industrial control PC; providing an easy-to-understand man-machine interactive interface. The employee training period is largely shortened.
Model |
BJ-350 |
Cutting Length |
60-10000 mm |
Stripping Length |
front end:0--15 mm (up to30mm) |
Wire Range |
AWG 14 -- AWG 26 |
Wire Feeding Speed |
MAX.6m/s |
Crimping force |
2.0 Ton |
Power |
AC380 V 50/60HZ 3 PHASES |
Air Source |
0.5-0.6 Mpa |
Air Consumption |
6.5m3/h |
Dimensions |
3400 mm X 1100 mm X 1190 mm |
Weight |
Approx. 940 kg |

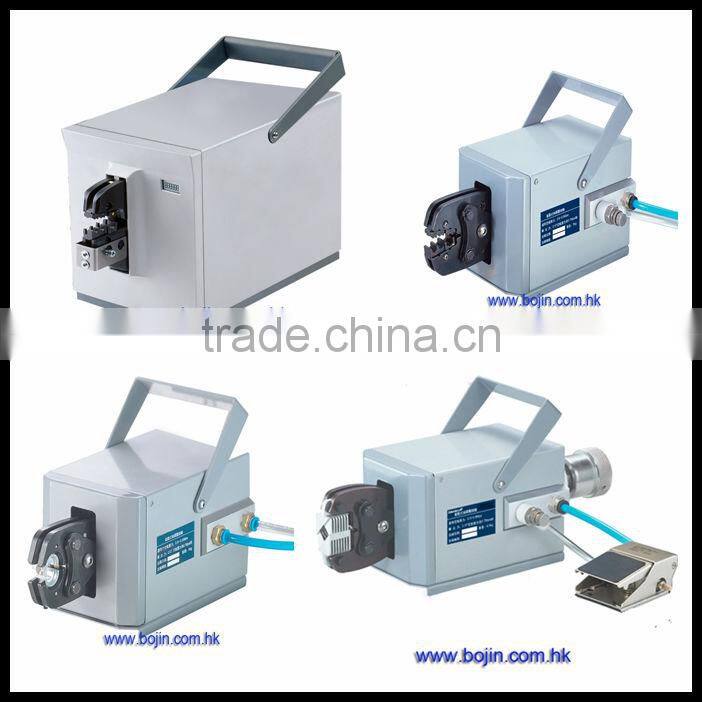

BJ-602E:
Crimping range: 0.5-16mm2
Air pressure range: 0.5-0.8Mpa
Output:1.8T
Voltage range: AC 220V
Weight: 6kg
Overall dimension: 275*128*145mm
1. Place the crimping terminal in the corresponding crimping die sets
2. Place the stripped wires into the terminals, step down the foot air valve, and release the air valve after the completion of the crimping.
3. When replacing the crimping die sets, the air source shall be shut off to avoid the risk caused by the improper operation. Remove the die sets and fasten the screws using screwdriver.
4. Replace with the required crimping die sets, and then fasten the screws again.
We can provide:
(1) best quality products and factory price
(2)On time delievery and shortest Delivery Time
(3) Warranty:1year
(4)OEM and customized products service
Service:
(1)We guarantee each product will be checked.
(2)If there are bad products, we will promptly pay compensation to customers without any charge.
...
