best price PCB Auto Taping Machine

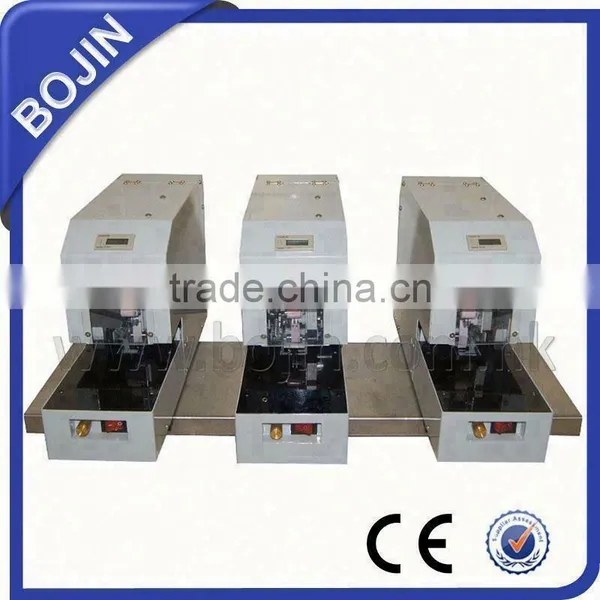

Automatic taping machine BJ-6000 is a machine used for the fixation of PCB, FPC board before drill holes on them. The machine can get rid of the low quality and low efficiency of usual processing, then improve the processing efficiency and drilling machine's utilization rate.
Performance Features:
1. The length of tape, which will be sticked, can be adjustable according to the thickness of board.
2. The processing scope is not limited by the size, thickness, amount of board.
3. Microcomputer control, easy to operate and running stable and reliable.
4. Can choose the amount of tape will be sticked at a time freely and the space between two tapes can be adjusted when several machines are connected together.
5. Simple structure, running reliable and low running cost.
6. No need of gas, only the single-phase source of 220V 9W is needed.
7. It can count the times of tape sticking and convenient to manage.
Main Specifications
No. | Names | Parameters | Units | Remarks |
1 | Minimum range between two tapes | 133 or over | mm | Adjustable |
2 | Tape width | 12 | mm |
|
3 | Processing thickness | 1.5-10.0 | mm |
|
4 | Speed | 0.6 | sec/pcs |
|
5 | Dimension of board will be processed | Random | mm |
|
6 | Power | AC220V9W | plusmn;10% | 50HZ |
7 | Outer dimension | 433*133*266 | mm | Single |
8 | Weight | 10 | Kg | Single |
Pre-sales service:
1. We can dispose the corresponding model machine according to the actual demand of customers.
2. Can design the product according to customer's special requirements.
3. Send the engineering technicians to the spot to learn the demand of customer to design the best scheme.
In-sales service:
1. Check and accept of machine.
2. Help customer to draw up the production decision.
After-sales service:
1. Guide the installation and debugging and train the operator, to the scene, free.
2. Responding to the customer's requirement in one hour.
3. Pay a return visit non scheduled and collect the feedback of customers to meet the demand of user.
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
....
