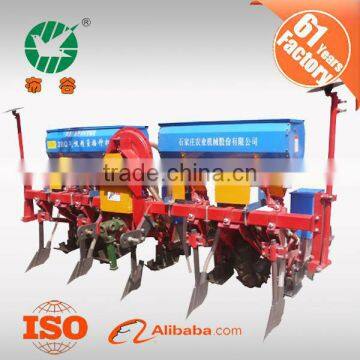

5-rows pneumatic precision corn seed planter

Specifications

2BQ-5 precision corn seed planter
1.match power: 60-100hp
weight 565kg
ing width:2.8m
ing space 460-640mm

5-rows pneumatic precision corn seed planter



Shijiazhuang Agricultural Machinery Co., Ltd was established in 1952. As manufacturers of machinery for soil cultivation, sowing and crop protection, our currently employs approximately 500 people. Factory size cover an area of 98000 square meters.

It is produces a wide range of straw chopper machine, precision planters, cereal seed drills, cultivator, ploughs, disc plough, chisel plow and corn harvester.

Progress is achieved by continuous R&D carried out by a large team of engineers.

It is passed ISO9001 Certificate in year 1998, we guarantees to its customers products and services compatible with the international quality norms, in every equipment produced by it.

Each unit of machine have 1 year of gurantee time.

The technicians and the customer service’s staff are well-experienced and competent.We can supply our customers with spare parts or advice quickly.

we provide operating manuals, and organize training and learning days for our clients that would improve their knowledge and grow with us.

Do you have any queries or suggestions?
Please address all queries on our products directly  Write to us.

2BQ-6 Pneumatic Precise Corn Seeder, is a kind of multi-functional integral agricultural machine. It is suitable for drilling and fertilizing on the ploughed or tided field. By replacing different sprocket and seeding plate to change the distance of seed, it can precisely drill corn, soybean, sorghum, cotton and oil sunflower. Fertilizing, ditching, soil covering and press can be finished at the same time. The main features of this kind of machine are multi-function, universal operation and high efficiency.

Diving force is 44-73 Kw (four-wheel tractor). Row space, depth, seed distance and seeding amount can be adjusted in a large range.

Distributer with double seed selector

Seeding depth adjustment

PTO shaft : precise, reliable transmission requiring no lubrication or maintenance.

Optional Accessory: adjustable transmission wheels enables seeding on raised beds.

Arm Strong: reinforced parallelogram.

The selection of a single seed per hole is guaranteed by the dual selection system with micrometric adjustment.



Specifications

Model	Overall dimension(mm)	Net weight(Kg)	Sowing width(mm)	Sowing rows(row)	Row spacing(mm)	Working efficiency(Ha/h)
2BQ-4	1500×2300×1220	520	2100	4	460-640	0.67-0.8
2BQ-5	1500×2800×1220	565	2800	5	460-640	0.8-1.2
2BQ-6	1500×3400×1220	645	3500	6	460-640	1.2-1.33
2BQ-8	1800×6000×1500	1050	4900	8	460-640	1.33-2





 Packing with wooden case or  Iron Frame Plywood Case.
