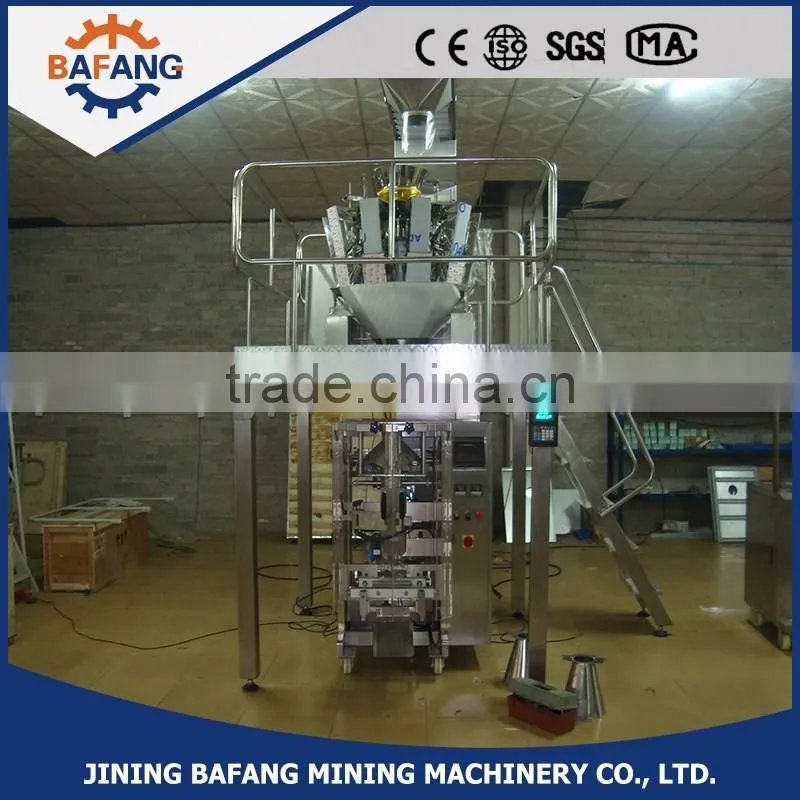

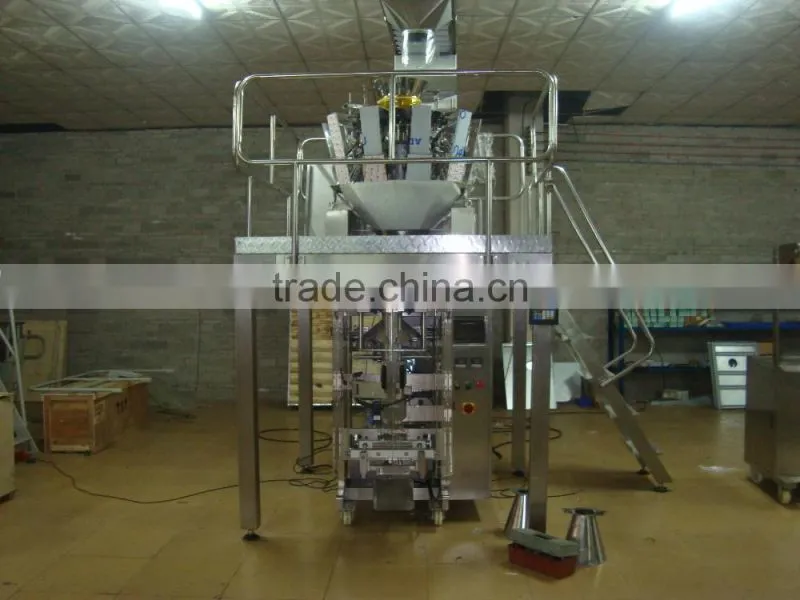

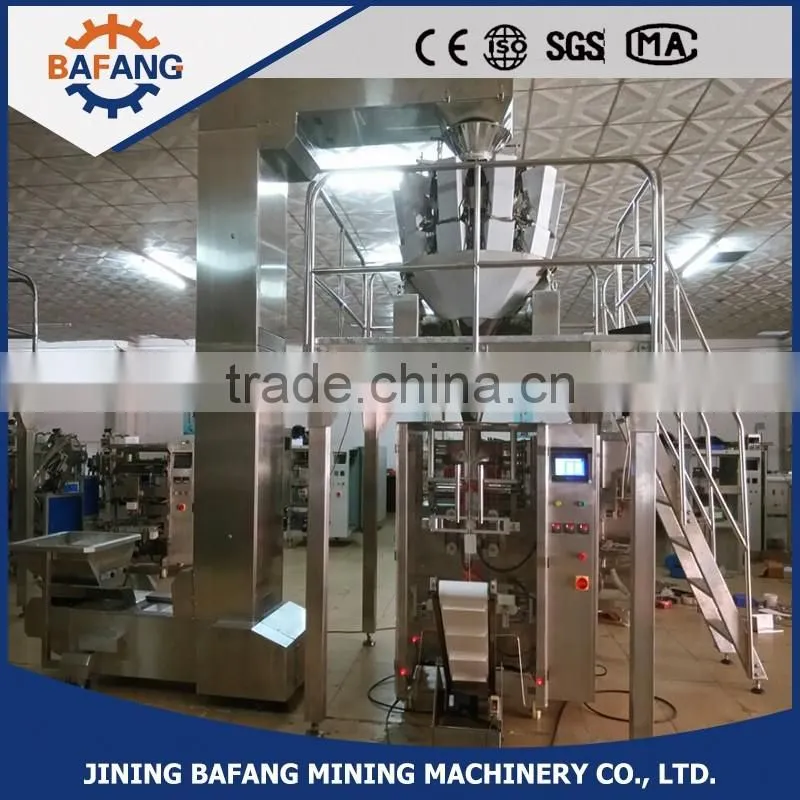

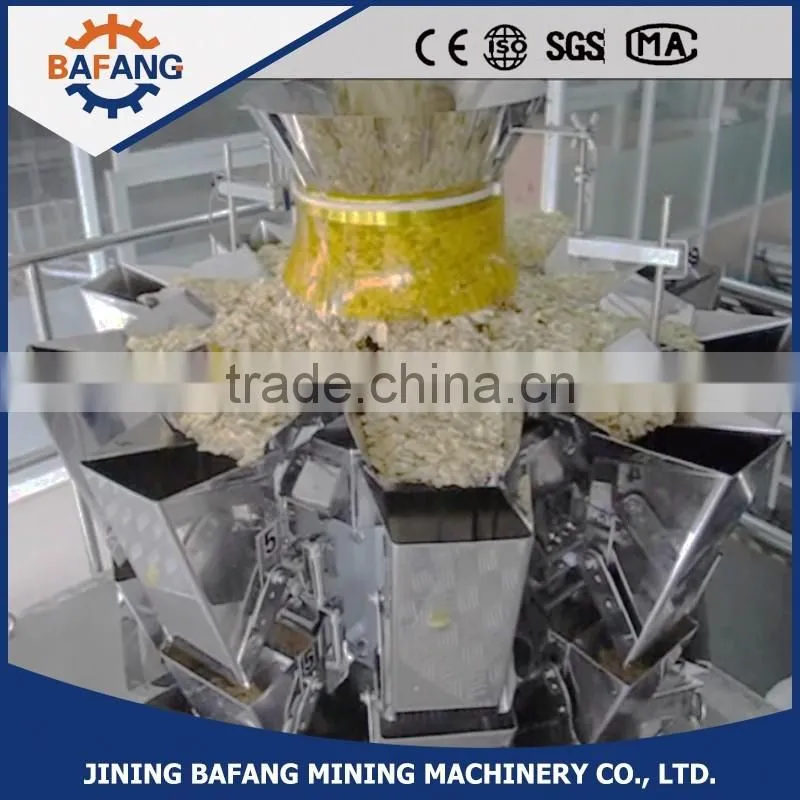

Help CenterShrimp Puffed Food Chocolate Packing Machine
Related Products
-
Advanced Technology Exhaust Mine YBT Series Ventilation FanUS$ 500 - 5,000MOQ: 1 Set -
Exhaust Mine YBT Series Ventilation Fan From Chinese Manufacturer SupplierUS$ 500 - 5,000MOQ: 1 Set
-
Direct Factory Supply Exhaust Mine YBT Series Ventilation FanUS$ 500 - 5,000MOQ: 1 Set
-
Easy-operated Exhaust Mine YBT Series Ventilation FanUS$ 500 - 5,000MOQ: 1 Set
-
China Manufacturer Exhaust Mine YBT Series Ventilation FanUS$ 500 - 5,000MOQ: 1 Set
sugar and cotton, grains, seeds packing machine
specification
This machine is suitable for potato chips, chips, crispy rice, shrimp, etc. puffed food,
chocolate, pistachio, almond, red dates, dried fruits, peanuts, melon seeds, biscuits, pet food,
fish balls, quick-frozen dumplings, candy, black fungus, dried mushrooms, sugar and cotton,
grains, seeds, feed and other materials Jingzhun packaging.
feature
1,High precision digital sensor, equipped with ten buckets, so that accurate measurement can be
achieved instantaneously;
2,Microcomputer control system, the use of double vibration, advanced technology, easy to
operate;
3,Measuring bucket is easy to assemble and disassemble, quick and easy, easy to clean and
maintain.
4, low input, high return, high speed, high efficiency.
5 ,imported PLC full computer control system, man-machine interface, large display touch
screen, easy to operate.
applicance
Packing range: This machine is suitable for potato chips, chips, crispy rice, shrimp, etc.
puffed food, chocolate, pistachio, almond, red dates, dried fruits, peanuts, melon seeds,
biscuits, pet food, fish balls, quick-frozen dumplings, candy, black fungus, dried mushrooms,
sugar and cotton, grains, seeds, feed and other materials Jingzhun packaging.
parameter
Item |
Content |
packing speed |
45 bag/min,it is according to quality of wrapping and supplies |
|
Accuracy |
≤±3G |
Bag size |
(L)60-300mm (W)90-200mm |
Film width |
420mm |
Bag type |
Pack with film, upper seal, lower seal and back seal by automatic bag making machine. |
Film thickness |
0.06-0.08mm ,0.07-0.08 is bet 0.06-0.08mm, the best is 0.07-0.08mm |
Package material |
BOPP/CPP,PET/AL/PE etc. thermal composite material., likeBOPP/CPP, PET/AL/PE etc |
Air consumption |
0.8Mpa 0.8m3/min |
Total powder |
head scale(2KW)+main body(4KW)+Z shape conveyor(1.KW)+finished product conveyor (0.045KW)=7.045KW |
Voltage |
Four wire three phase 380V 50HZ |
Air compressor |
>=1 m3 |

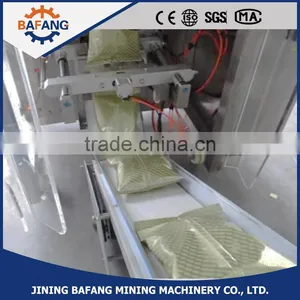

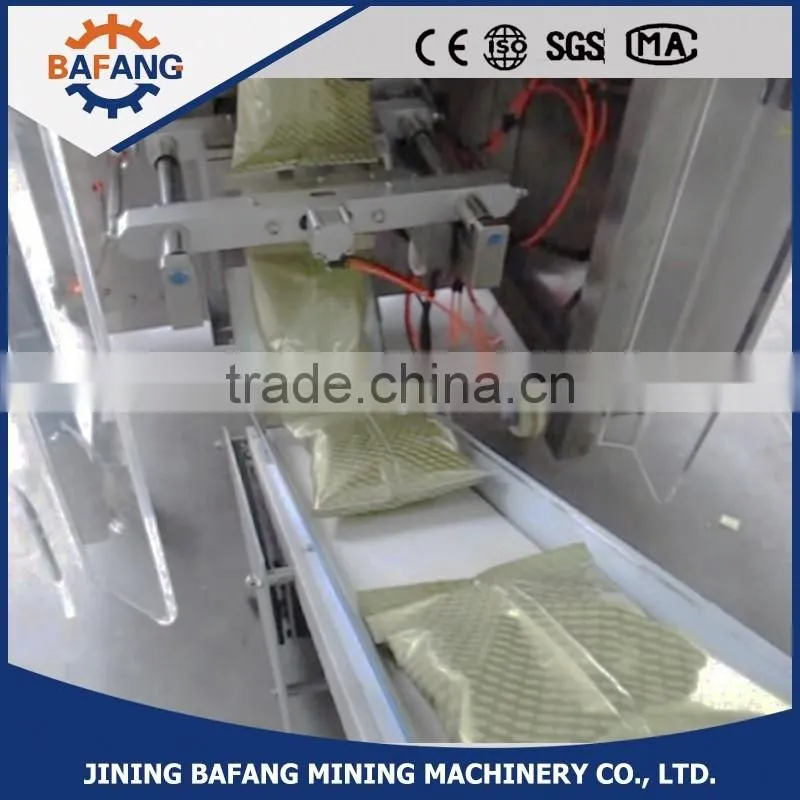

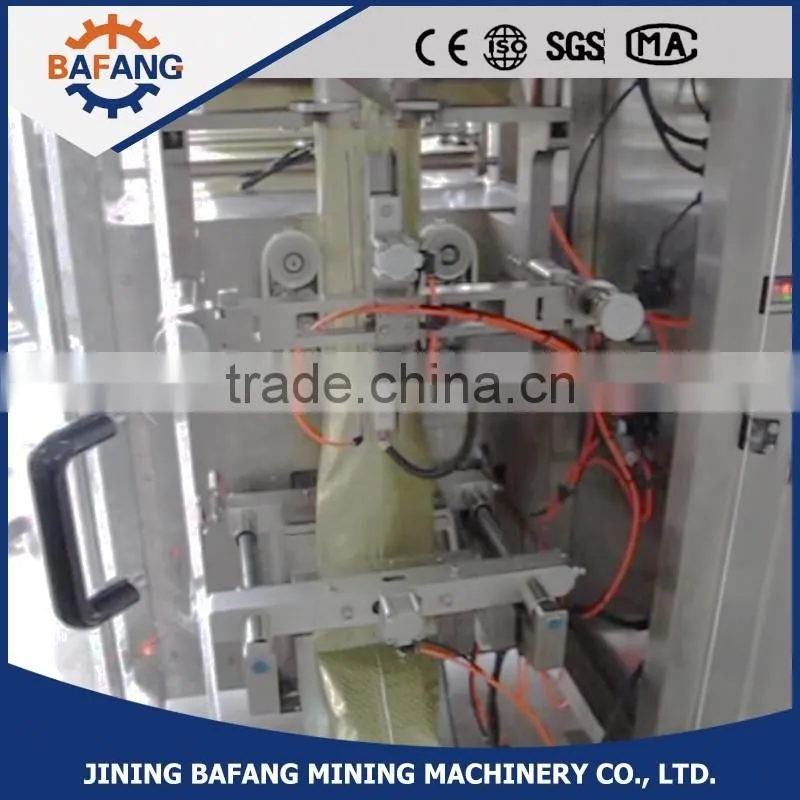

detailed picture
