Product Details
| Condition | New | Production Capacity | 170m2/h | |
| Power(W) | 6kw | Max. Paving Thickness | 220-300mm | |
| Paving Width | 2-7m | Place of Origin | Shandong, China | |
| Brand Name | BAFANG | Model Number | BF | |
| Dimension(L*W*H) | 7*2.4*1.7m | Weight | 4.5tons | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
1.it is optional for 2m,3m,4m,5m,6m,7m wide
uld paving 1300 sqm for a day.
3.use gravity
4.tiger stone paver machine
newest hot construction technology brick paving tiger stone machine
Description
Tiger stone paving machine uses gravity and an electric motor to print stone and brick roads.
It’s a 7 meter wide machine that is capable of laying 170*8 square meters of road a day.
The printing width is adjustable from the width of a road to as narrow as a bike lane or
walkway.There are no moving parts within the machine, it simply uses a shelf that is fed bricks
and they are automatically sorted and packed together by gravity, each stone will associate
with the link previously made.
Feature
1. Automatic paver.
2. High production efficiency, can be 170*8m2/day.
3. High degree of finish.
4. Easy operation, reduce the need of labor force.
5. Easy maintenance, equipped with Orientation sensor.
6. Fast speed and high efficiency.
Parameter
Min Speed: | 0.5m/minute |
Max Speed: | 1.5m/minute |
General speed: | 1m/minute |
Wheel track width | 2m |
Height of underpan | 0.15m |
Leveling shovel movements itinerary | 0.1m |
The biggest laid width(Adjustable) | 5.7m |
Power Leveling shovel | 0.5kw |
Voltage: | AC 380V,3 phase |
Power : | 6 KW |
1400 m2/8hour | |
Dimension: | 6/5/4/3m*2.4m*1.7m( L*H*W) |
Weight: | 4500kg |

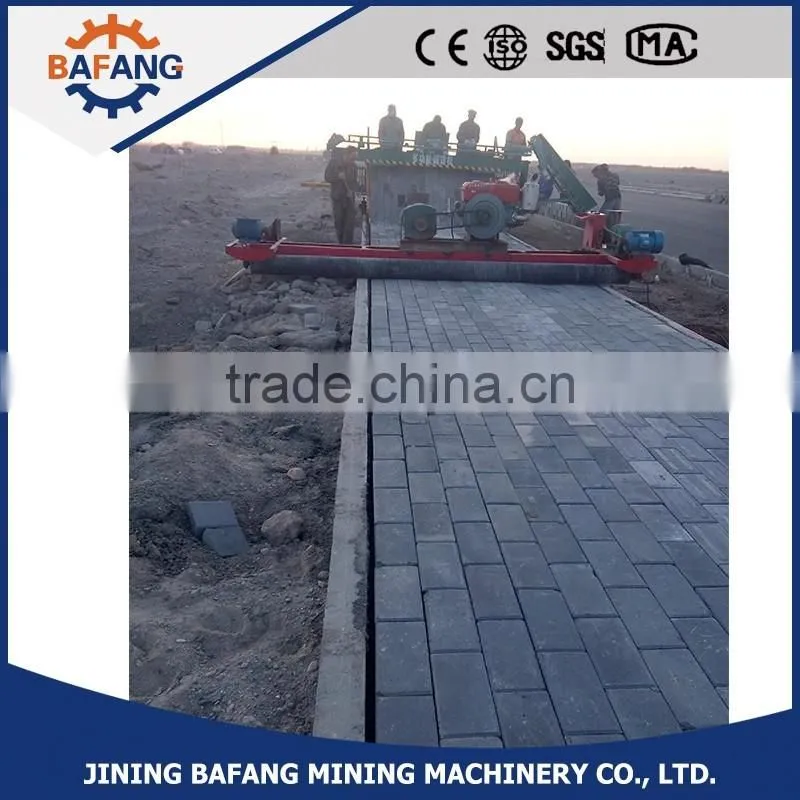

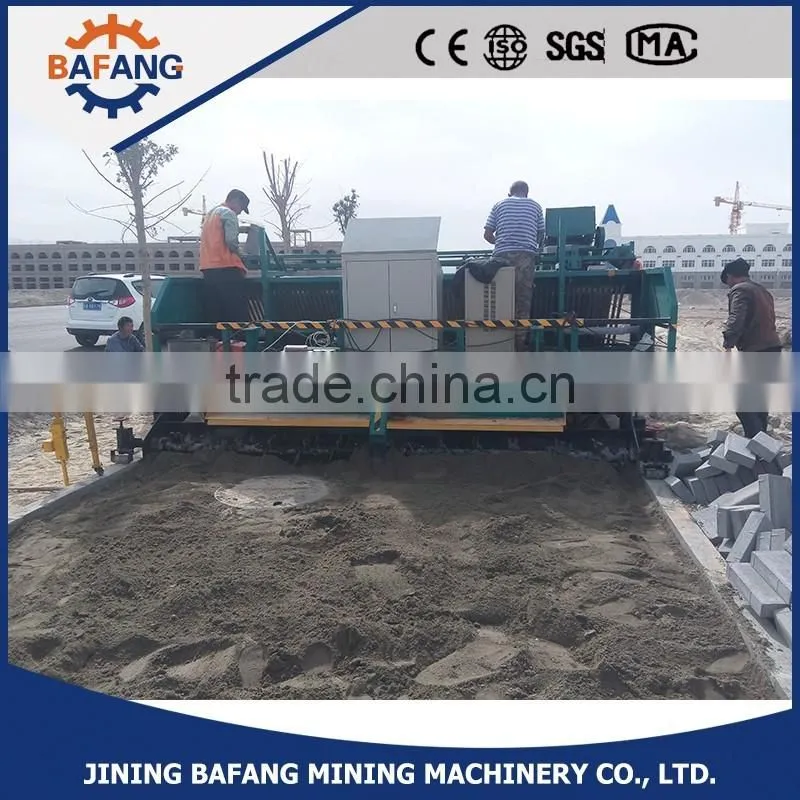

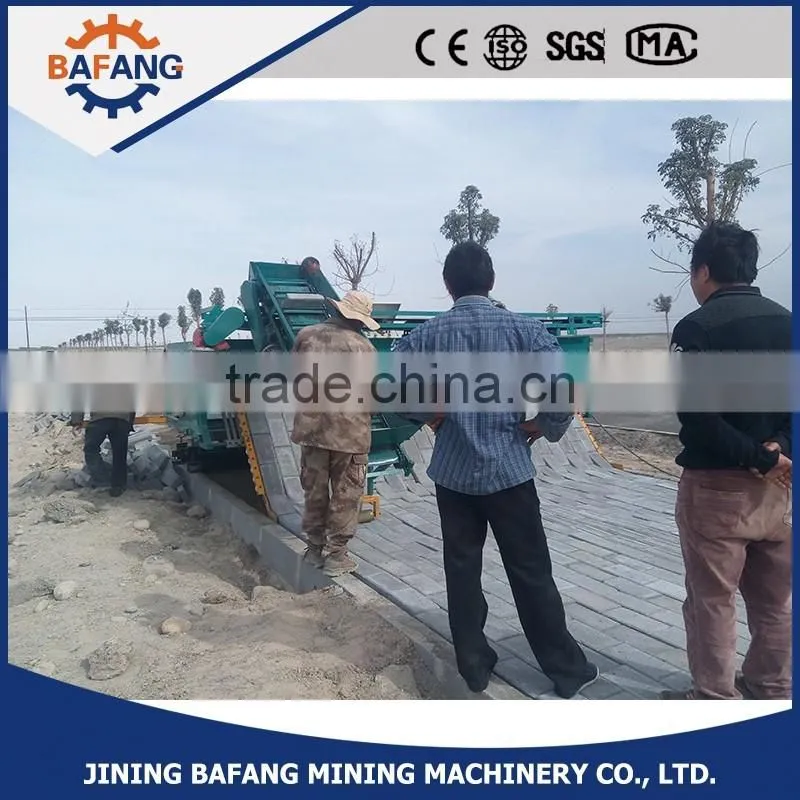

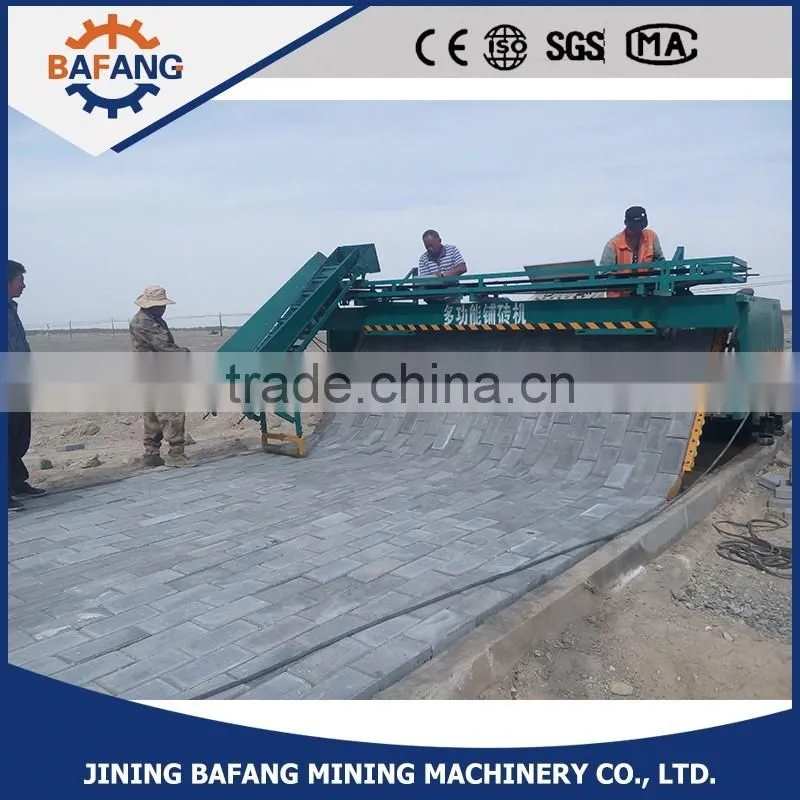

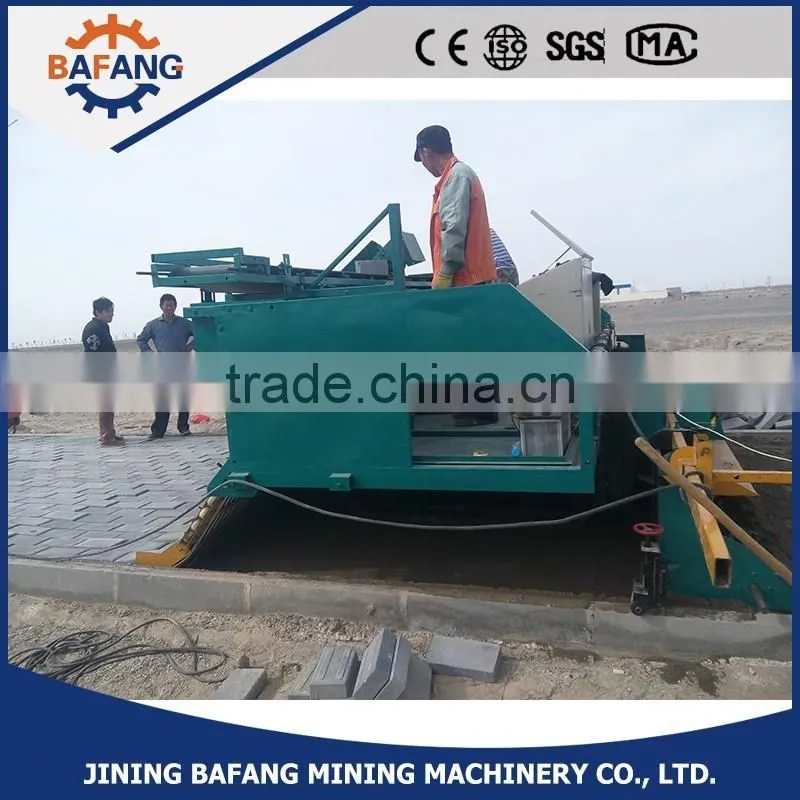

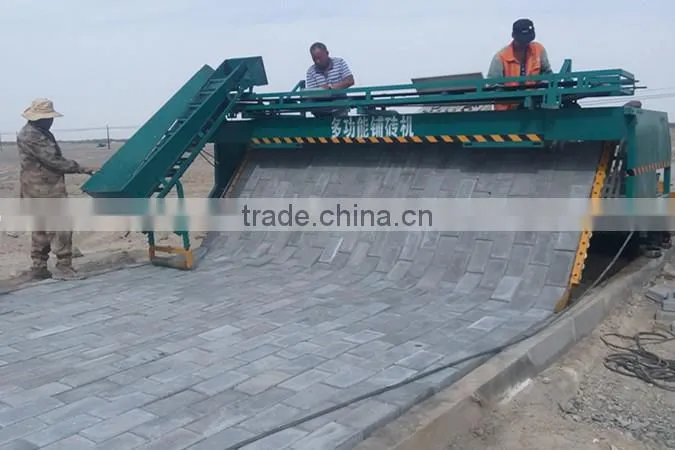

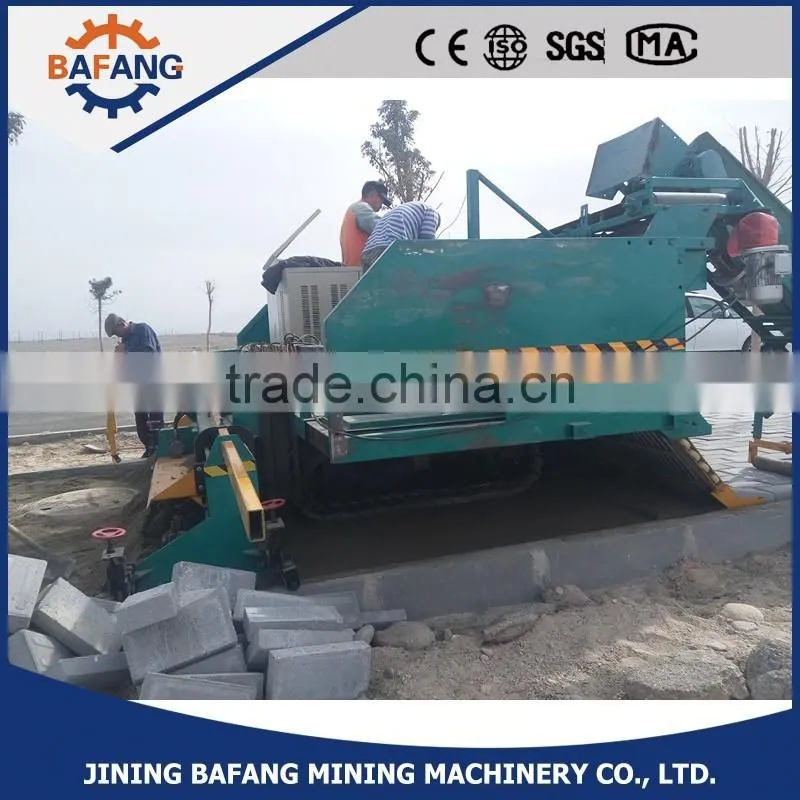

Detailed picture
