YTT-200 hydraulic rail joint deburring machine /rail weld sharpening machine
YTT200 hydraulic rail joint deburring machine adopts manual hydraulic transmission. It has the advantages of simple structure, small volume, light weight, carrying and operation are more convenient, applicable to 75kg / M and a rail dry mode and wet model thermite welding process welding slag pushing in. On the top of the rail, the rail top side of the upper edge of the weld reinforcement and gate and riser can be a push in. Hydraulic rail push convex machine is engineering construction. The construction of the new line. The ideal repair tool.
Technical Parameters
Max. thrust (double cylinder) | 150KN |
Max. handle working torque | 120J |
Handle swing angle | 38° |
Working cylinder diameter | 50mm |
effective length | 140mm |
Hydraulic system pressure | 40 Mp |
weight | 65Kg |
dimension | 900mm*400mm*380mm |

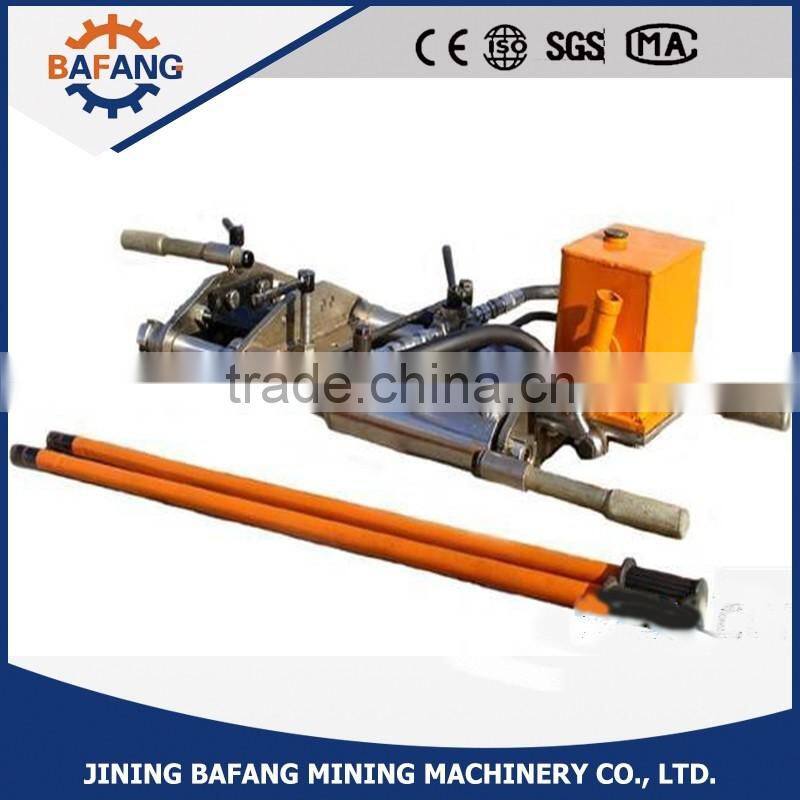

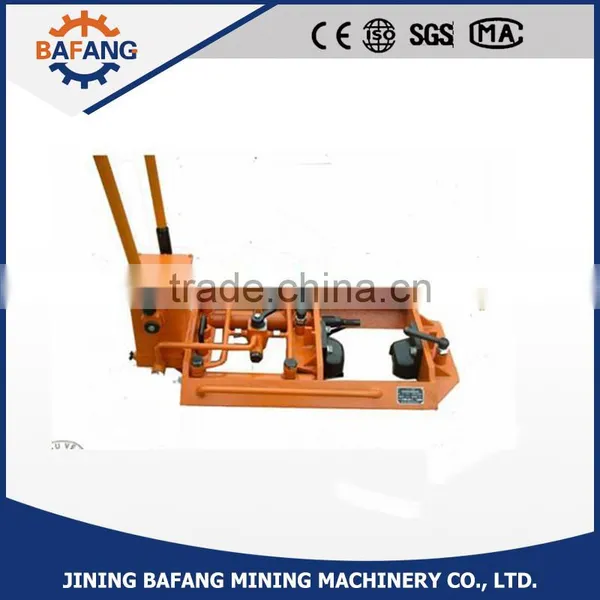

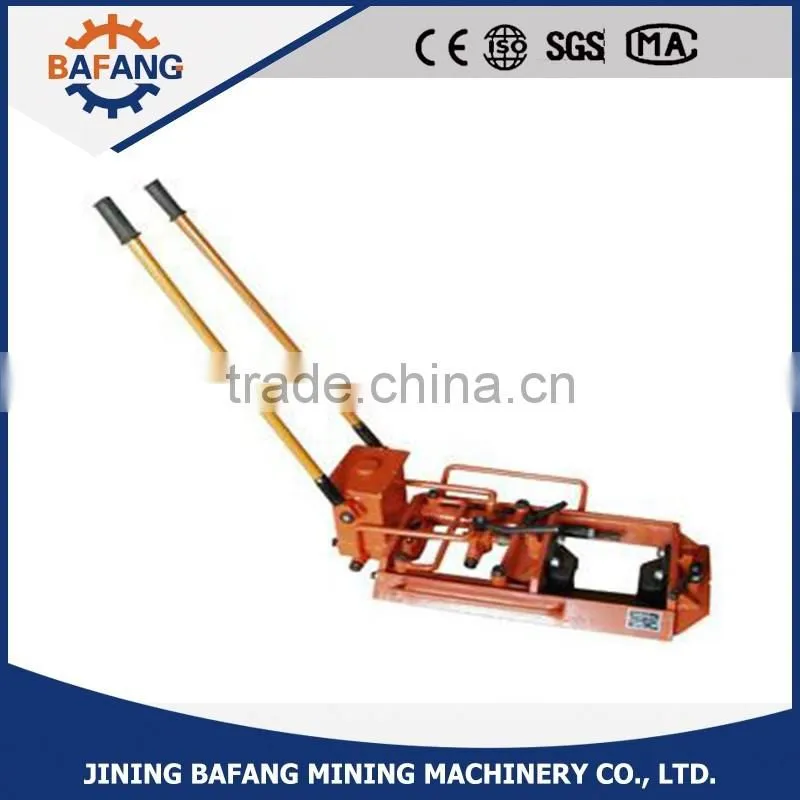

Figure Photos
Because of the production batch, the specific model are different, the above pictures are only for reference , you can contact our sales staff for further details on the specific verification.
