2016 Hot!! ZSY 50/70 Double Fluid Hydraulic Injection Grout Pump With Mine
US$ 3,150 - 3,250
/ Set
1 Set(Min. Order)
- Qingdao
- T/T Money Gram Credit Card
You May Like
-
BQW35/7 Explosion-proof Submersible Sewage Pump With 2.2kw
-
Use for Mine Double Liquid Piston Injection Pump
-
BQW50/200 Series Mine Electric Explosion-proof Submersible Sewage Pump
-
The Highest Quality Diaphragm Pump With Air Operated Used Mine
-
Easy to Operate the Handheld Operating Grouting Pump Used Mine
-
The Wind Power Pump FWBQ Serise Pneumatic Submersible Water Pump
Product Details
| Condition | New | Application | Construction | |
| Place of Origin | Shandong, China | Brand Name | BAFANG | |
| Model Number | ZSY50/70 | Dimension(L*W*H) | 1300*720*700mm | |
| Weight | 500kg | Certification | ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description

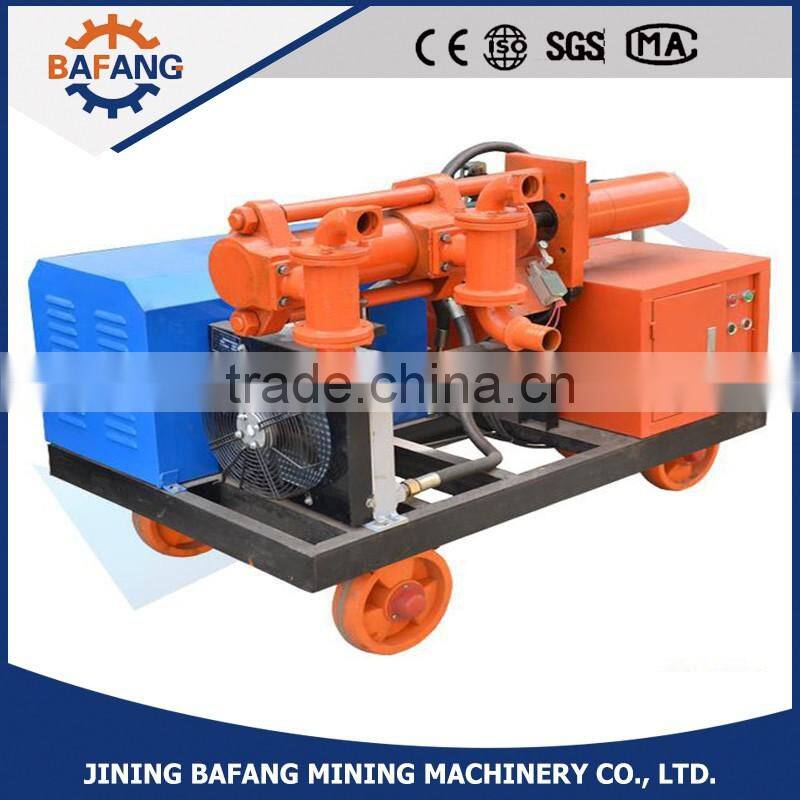

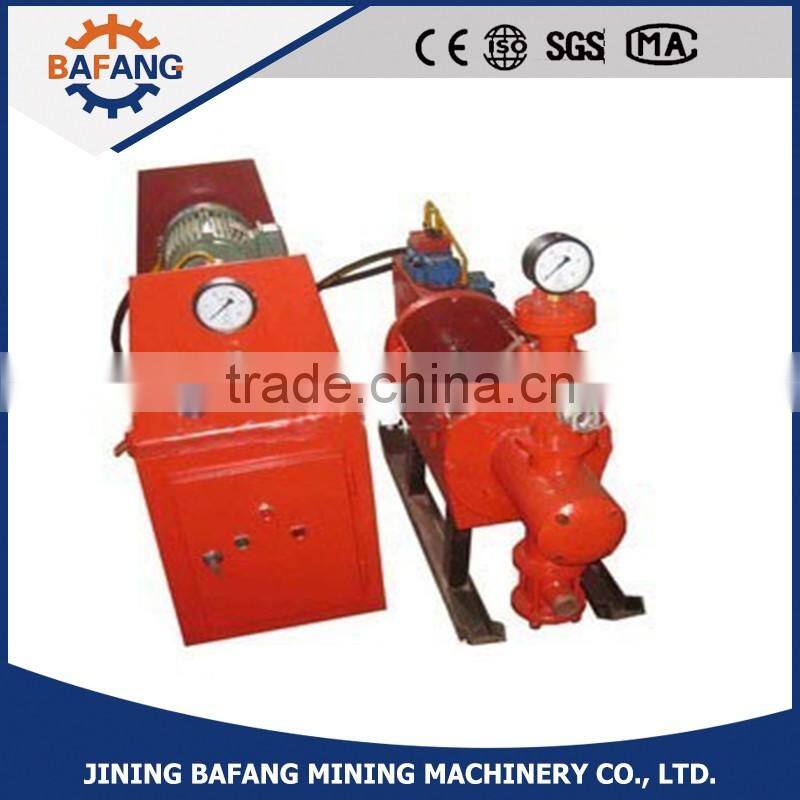

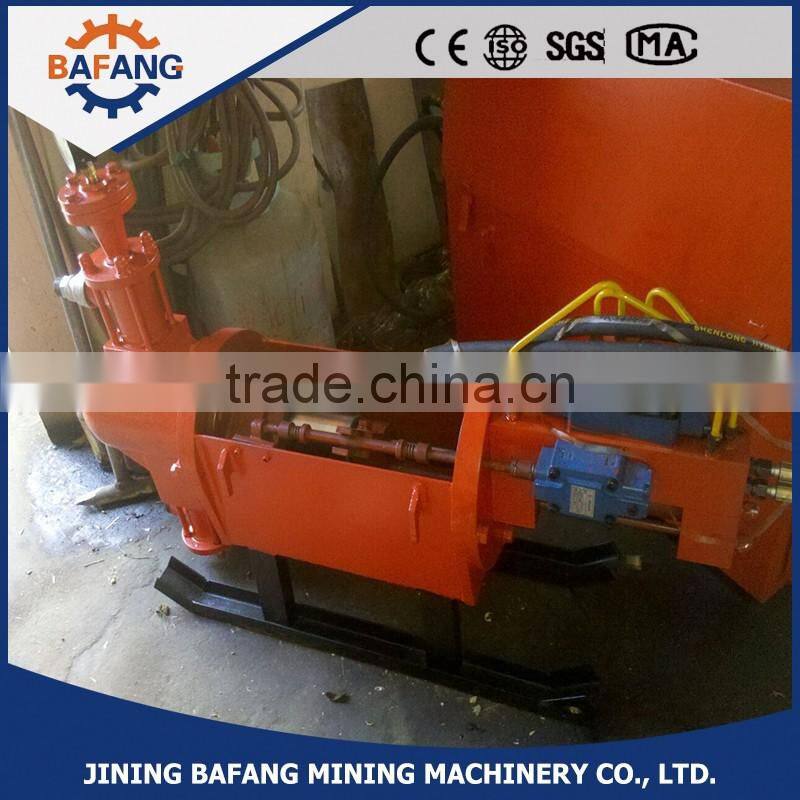

ZSY 50/70 double Fluid hydraulic injection Pump with mine
Features
ZSY50/70 double fluid grouting pump is a kind of single-cylinder double-acting piston pump, which can transport water mud, yellow mud, water glass, oil, water and other media. Both two mediums and one medium can be transported at a time. Stable performance, compact structure, convenient operation and maintenance.
Advantage
1. Single-cylinder but double-acting and piston reciprocating one time enable achieve the two liquids suction;
2. Hydraulic drive, reliable machine working, pumping high pressure;
3. Original commutation mechanism, can be used in special workplace;
4. Compact structure , suitable for small space construction.
Technical Date
Model | ZSY50/70 |
Rated work capacity | 0-70L/Min |
Working Pressure | 0.5-0.7MPa |
Motor Power | 11KW |
Max grain size | 5mm |
Outlet height | 1m |
| Weight | 500kg |
SIZE(L×W×H) | (1300*720*700)mm |
|
Products Detail
Our Services
Contact Us
- Jining Bafang Mining Machinery Co., Ltd.
- Contact nameRenee Chang Chat Now
- Phone86-537-2280551
- AddressRoom 1903, Xieying Technology Building, Jinyu Road, Jining, Shandong, China
