Help CenterDirect Factory Supplied Dry Type Explosion-proof Coal Mine Gas Pipeline Flame Arrestor
Related Products
-
Flame Arrestor for Coal Mine PipelineNegotiableMOQ: 5 Pieces -
WGZ Dry Type Flame ArrestorNegotiableMOQ: 5 Pieces
-
Flame Arrestor for Gas Pipeline Explosion Proof Flame ProtectorNegotiableMOQ: 5 Pieces
-
WGZ100-1600 Pipeline Flame ArrestorNegotiableMOQ: 5 Pieces
-
Explosion Proof Stainless Steel Flame Arrestor for Gas PipelineNegotiableMOQ: 5 Pieces

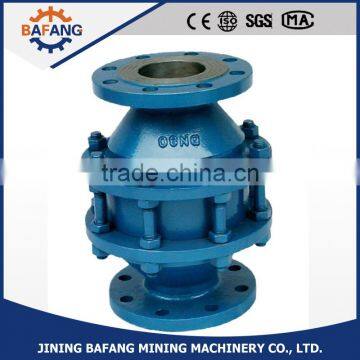

Dry type explosion proof gas pipe line flame arrestor
It is one of the measures to protect the drainage gas system in all coal mine gas drainage systems.
1.Working temperature:-40℃~45℃;
2.Working pressure:80Kpa~106Kpa;
3.Working air humidity:≤95%(25℃);
4.Gas pressure:≤30Kpa
Specifications
Model |
L (mm) |
D (mm) |
D net (mm) |
Layer of steel wire(mm) |
L1 (mm) |
t (mm) |
S (mm) |
n*Φ (mm) |
Bolt diameter (mm) |
WGZ100-1600 |
740 |
100 |
200 |
6~8 |
320 |
≥4 |
14 |
8*Φ22 |
M20×65 |
WGZ125-1600 |
780 |
125 |
250 |
6~8 |
325 |
≥4 |
14 |
12*Φ22 |
M20×65 |
WGZ150-1600 |
810 |
150 |
300 |
6~8 |
335 |
≥5 |
16 |
12*Φ22 |
M20×65 |
WGZ200-1600 |
890 |
200 |
400 |
6~8 |
345 |
≥6 |
18 |
16*Φ22 |
M20×70 |
WGZ250-1600 |
960 |
250 |
450 |
6~8 |
360 |
≥8 |
22 |
16*Φ22 |
M20×80 |
WGZ300-1600 |
1100 |
300 |
500 |
6~8 |
400 |
≥8 |
22 |
16*Φ22 |
M20×80 |
WGZ350-1600 |
1250 |
350 |
550 |
6~8 |
450 |
≥9 |
22 |
16*Φ22 |
M20×80 |
WGZ400-1600 |
1400 |
400 |
600 |
6~8 |
500 |
≥9 |
22 |
20*Φ22 |
M20×80 |
WGZ450-1600 |
1550 |
450 |
650 |
6~8 |
550 |
≥9 |
24 |
20*Φ22 |
M20×85 |
WGZ500-1600 |
1700 |
500 |
700 |
6~8 |
600 |
≥9 |
24 |
24*Φ22 |
M20×85 |
Welcome to contact me at:
Brian Fu
TEL:+86-0537-2288128
FAX:+86-0537-2289978
Whatsapp:+86 13295473527
Wechat: 13295473527
Skype:brian(at)
Email:brian(at)
Send Inquiry to This Supplier
