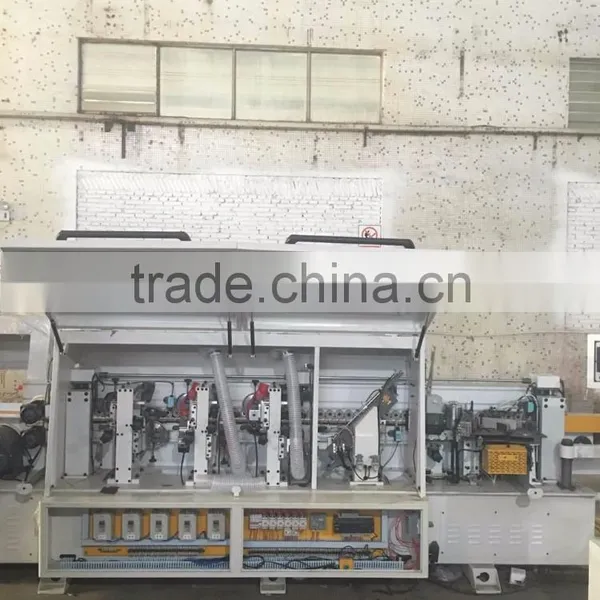

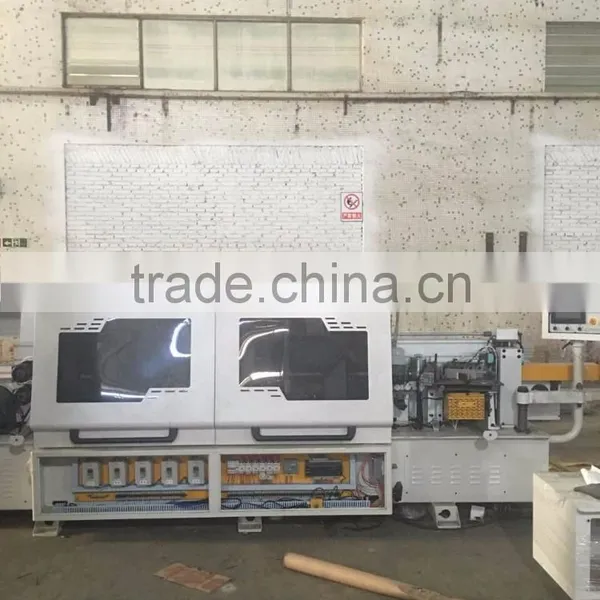

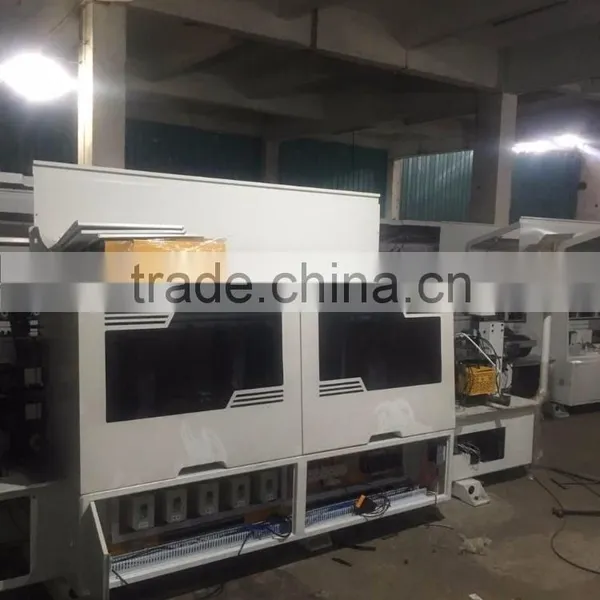

new condition made in China edge banding corner rounding machine
Features:
Polished, scraping, finishing, rough repair, before and after the head, sealed with cut, paste edge, sealed with delivery.
1, polishing unit: two independent motor with two edge cleaning and polishing. Simple design, better operation.
2, scraping unit: for 3mmPVC / ABS edge band scraping edge, no power scraping system based on high-just institutions. Precise cutting is based on the side and upper and lower precision contours, which ensures the accuracy of the blade cut.
3, finishing unit: up and down the edge thanks to two independent high-frequency motor, 45-degree tilt trimming, adjustable angle, simple and stable design, easy and accurate adjustment.
4, rough repair unit: and the same design and repair the principle, because it will make the product better. Two 1.1KW high-frequency motor, coupled with high hard plane knife, chip force is very strong.
5, before and after the dressing: two independent high-frequency motor used to cut the front and rear of the remaining material. High-precision cutting depends on the two motors preloaded on the linear guide. Each working motor has a die device, used for accurate bits, find the entry point.
6, plastic box unit: a special coating mechanism, heating fast, accurate coating tire to ensure that the kind of material and the perfect, uniform coating.
7, the pressure beam lifting structure: by adjusting the upper pressure beam, by the two rows of staggered rubber pressure roller compression workpiece, digital watch display accurately indicate the pressure beam lifting position.
Model |
XH-650 |
Types |
Woodworking |
Condition |
new |
Rated powe |
9.5kw |
Dimensions |
4500*1000*1600mm |
Maximum processing length |
120mm |
Maximum processing thickness |
10-60mm |
Maximum processing width |
60mm |
Feeding speed |
8-22m/min |
Rated voltage |
380v |
Weight |
1050kg |
product details
If you are interested in our products, please contact with us without any hesitation. We are waiting for your Inquiry.
