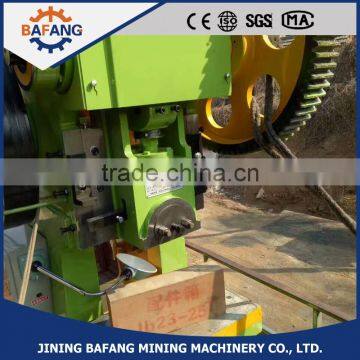

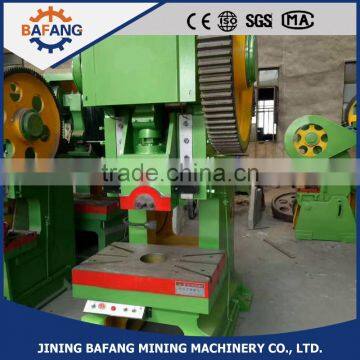

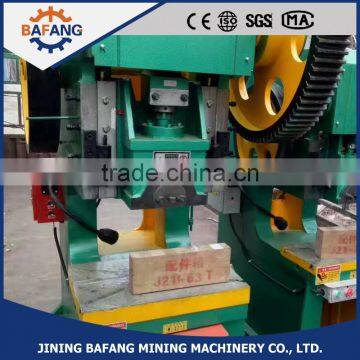

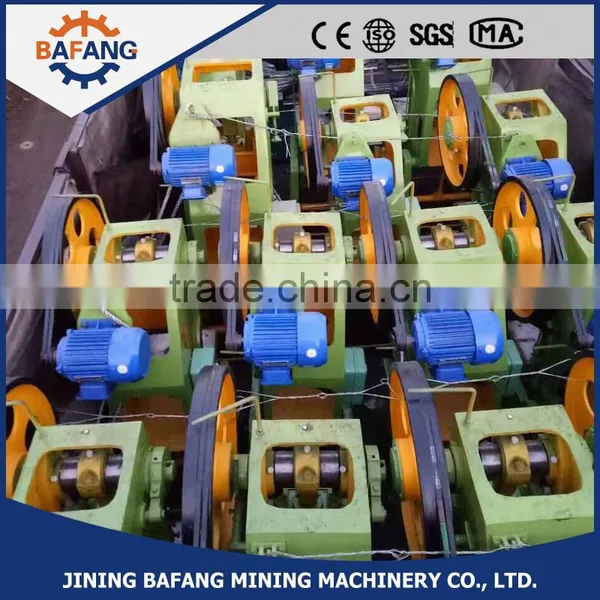

JB23/40 power puching press
Features:
1. Adopts horizontally placed crankshaft.
2. Rigid rotated bond clutch.
3. JB23 series adopts dual rotated bond structure to overcome rebound of punching effectively.
4. Manual shut height adjustment with scale display.
5. The type with "A" equipped with emergency stop device, which could make the slide stop at 0-135 degrees’ area and equipped with light curtain protector as well.
Specifications:
Model | JB23/40 |
Nominal force | 400KN |
Slide stroke | 100mm |
Slide frequency | 60times/min |
Max. die set height | 210mm |
Die set height adjustment | 50mm |
Die shank dimension(Dia*Depth) | 50*60mm |
Thickness of bolster | 75mm |
Size of platform | 650*400mm |
Diameter of worktable hole | 150mm |
Total weight | 2400kg |
Dimension | 140*110*230cm |
