Hand Operated Desktop Hydraulic Punch Press Electric Punch Press Machine

FOB Price

US$ 739 - 1,539 / Set

3 Sets(Min. Order)

Port Qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Hydraulic	Place of Origin	Shandong, China
Brand Name	Bafang	Model Number	JB01
Voltage	220V	Power(W)	370w
Weight	95kg	Dimension(LWH)	495375555mm
Certification	CE ISO	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Foot-operated small electric punch press gantry press

Product Description

Features:
1. Control by foot or hand Pedal
2. Punching Power:1 Ton to 4 Tons
3. Compact and safely structure

Application:

Used in punching, bending, blanking, cutting, riveting, etc. this machine usage with die, safely and high efficiency operate, using high quality material, make sure the edge of finished products beautiful and smooth. the methods of punch card you can choose by yourself, for example, the punch method of adjust edge distance and fixation punch method.

Specifications

Model	JB01	JB02	JB03	JB04	JB05
Nominal presser (KN)	10	20	30	40	50
Slipper stoke (mm)	40	42	48	42	42
Nominal force stroke(mm)	2.4	2.4	2.4	2.4	2.4
Number of stoke (s.p.m)	250	220	200	200	180
Max. sealing height(mm)	150	220	250	250	270
Pole distance (mm)	106	130	230	230	230
Throat depth (mm)	58	65	85	65	65
Mold hole size (mm)	20*40	20*45	28*50	25*40	25*40
Platform size (mm)	300*275	320*300	400*380	350*370	430*370
Slider bottom size(mm)	57*48	72*64	80*70	78*78	78*78
Motor power(w)	370	450	650/750	650/750	650/750
Dimension(mm)	495375555	520400620	640550830	720570900	720570900
Weight(kg)	95/100	115/120	240	250-360	270-380

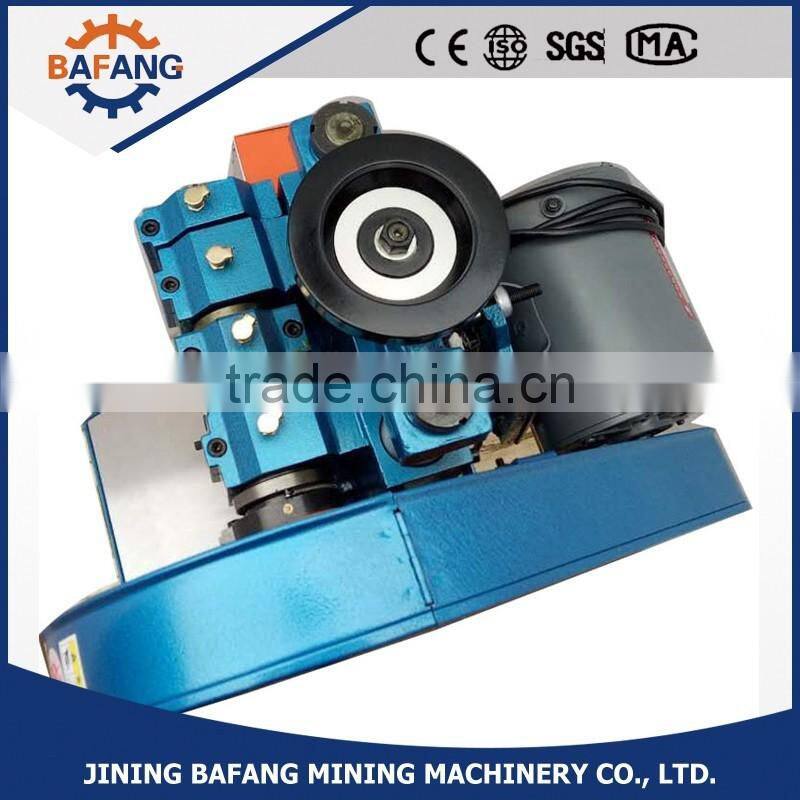

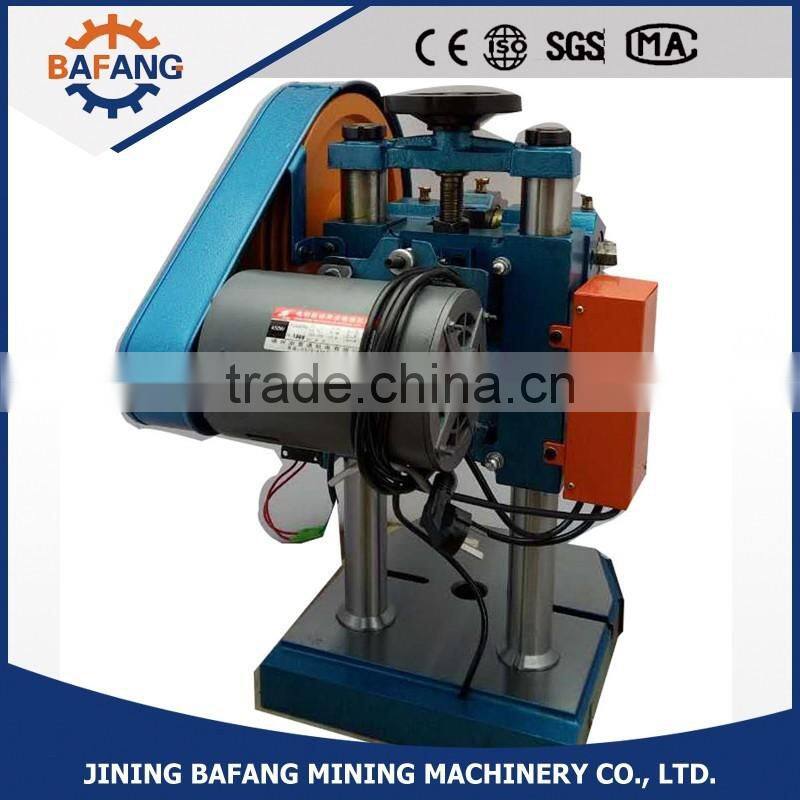

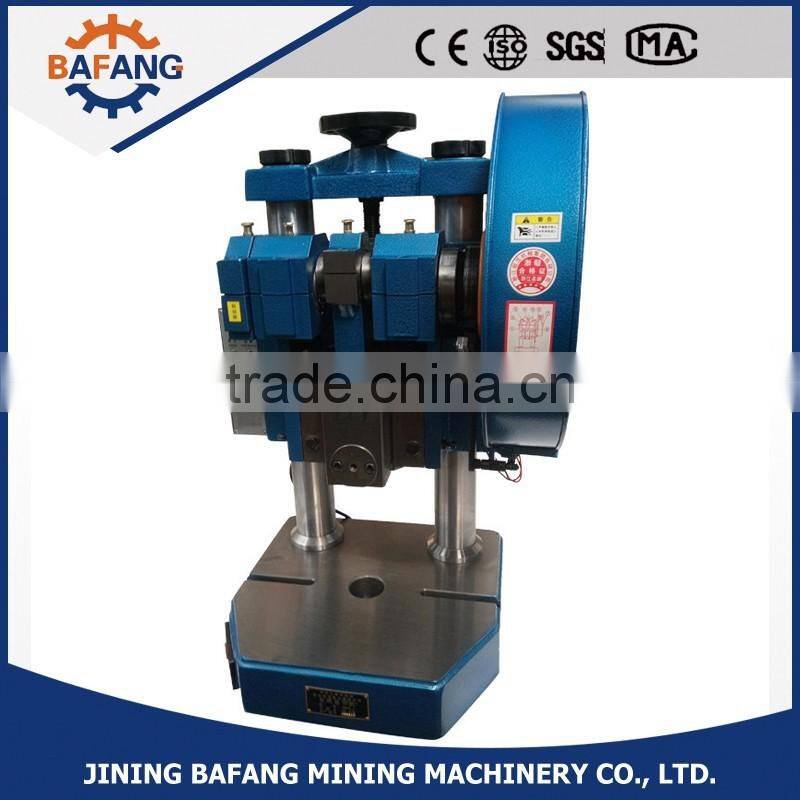

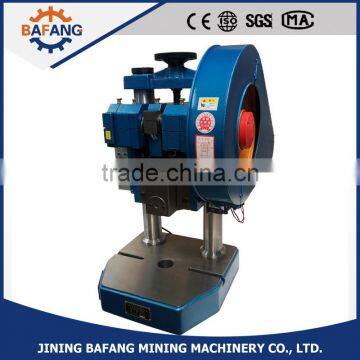

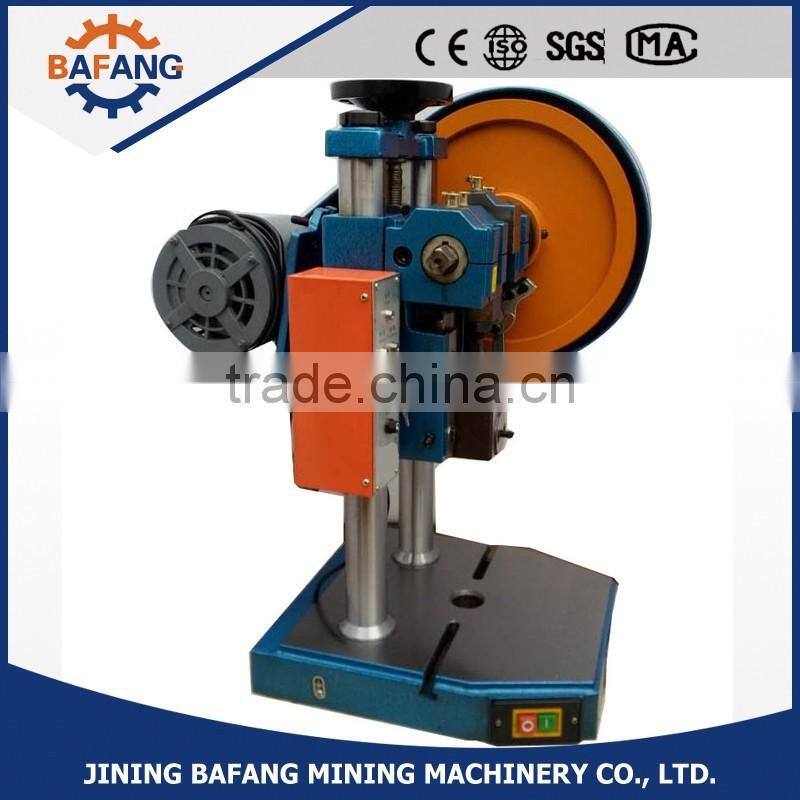

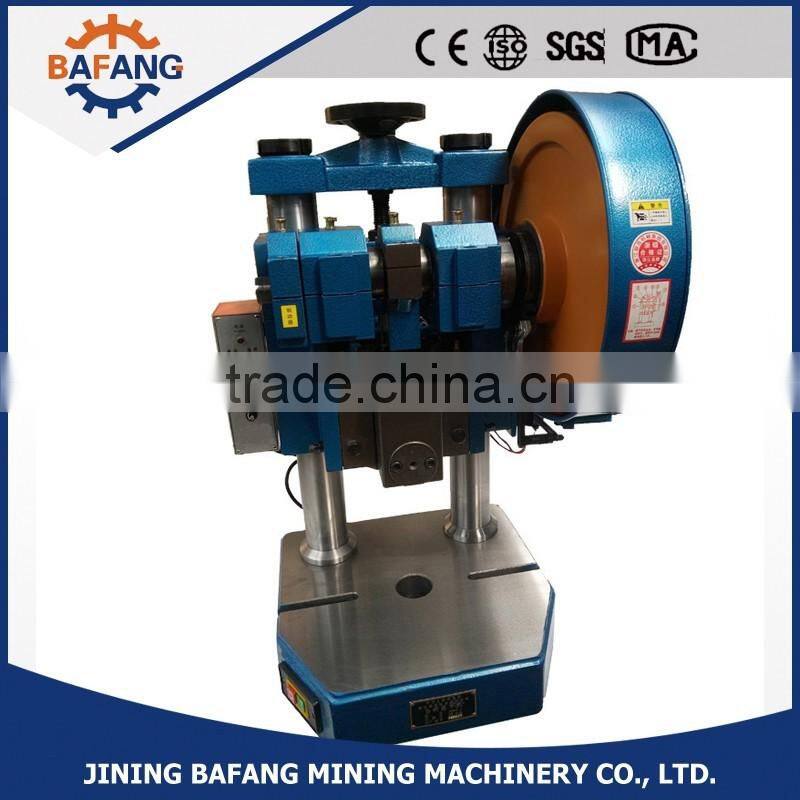

Product pictures
