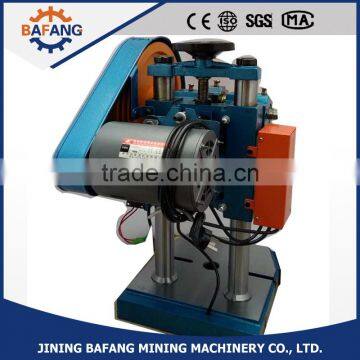

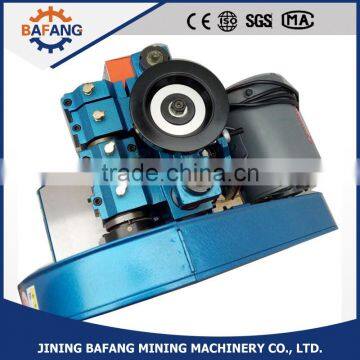

Foot-operated small electric punch press gantry press
Features:
1. Control by foot or hand Pedal
2. Punching Power:1 Ton to 4 Tons
3. Compact and safely structure
Application:
Used in punching, bending, blanking, cutting, riveting, etc. this machine usage with die, safely and high efficiency operate, using high quality material, make sure the edge of finished products beautiful and smooth. the methods of punch card you can choose by yourself, for example, the punch method of adjust edge distance and fixation punch method.
Specifications
Model | JB01 | JB02 | JB03 | JB04 | JB05 |
Nominal presser (KN) | 10 | 20 | 30 | 40 | 50 |
Slipper stoke (mm) | 40 | 42 | 48 | 42 | 42 |
Nominal force stroke(mm) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |
Number of stoke (s.p.m) | 250 | 220 | 200 | 200 | 180 |
Max. sealing height(mm) | 150 | 220 | 250 | 250 | 270 |
Pole distance (mm) | 106 | 130 | 230 | 230 | 230 |
Throat depth (mm) | 58 | 65 | 85 | 65 | 65 |
Mold hole size (mm) | 20*40 | 20*45 | 28*50 | 25*40 | 25*40 |
Platform size (mm) | 300*275 | 320*300 | 400*380 | 350*370 | 430*370 |
Slider bottom size(mm) | 57*48 | 72*64 | 80*70 | 78*78 | 78*78 |
Motor power(w) | 370 | 450 | 650/750 | 650/750 | 650/750 |
Dimension(mm) | 495*375*555 | 520*400*620 | 640*550*830 | 720*570*900 | 720*570*900 |
Weight(kg) | 95/100 | 115/120 | 240 | 250-360 | 270-380 |
