Home > Products > Mechanical Equipment > P-90B Scraper Loader for mine coal Rake bucket volume 0.9 m3

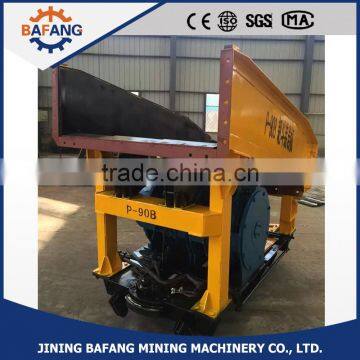

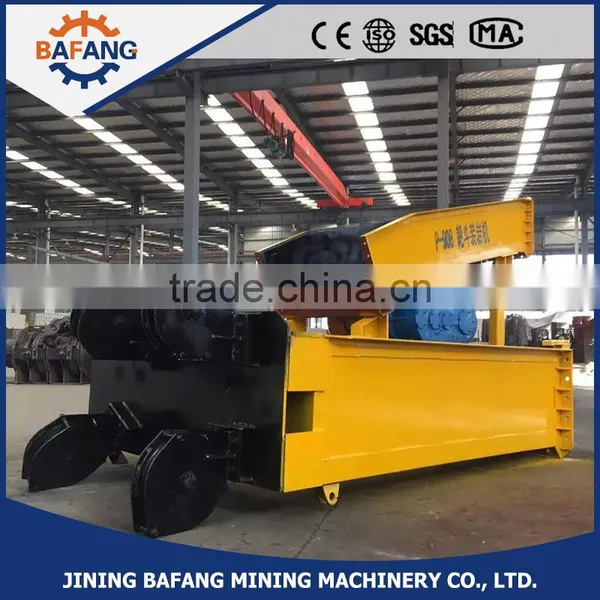

P-90B Scraper Loader for mine coal Rake bucket volume 0.9 m3
- 500 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
Product Details
Condition: | New | Brand Name: | bafang | Model Number: | P-90b |
Place of Origin: | Shandong, China | Type: | Skid Steer Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 5500*1170*1800mm | Rated Load: | 2.5t | Certification: | CE ISO |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
P-90B Scraper Loader for mine coal Rake bucket volume 0.9 m3
Scraper bucket rock loader is used in rock drivage, with 1.1m³ tub or skip loading operation
and has the character of high efficiency, simple structure, good reliability, and wide application.
This machine is not only used in driftway, but also in inclined roadway (<30°) and is a major
equipment to improve excavation and realize mechanization.
Features of Scper Loader |
(1)Efficiency
-- Whit increased steering and shortened turning radius, load sensing hydraulic steering
system is more flexible and efficient
-- Optimized bucket features high load ratio and small inserting resistance, adapting to
efficient work of light and bulk materials
(2)Reliability
-- Energy-saving type low speed engine, matched with efficient torque converter and reliable transmission, gives play to its max power, increasing overall speed and work efficiency, and
reducing oil consumption.
(3)Adapting to all working conditions
-- An integrated model for all working conditions. which is efficient for light bulk materials, and powerful for common materials.
-- Low pressure and wide bias tyres are adopted for exceptional off-rod ability and passage
capacity, adapting to various road conditions.
Technical Parameter
Item | Unit | Scraper Loader Model | |||||||||||
|
| P15 | P30 | P60 | P90 | P120 | P150 | ||||||
|
| P15B | P30B | P60B | P90B | P120B | P150B | ||||||
volume of the scraper | M3 | 0.15 | 0.30 | 0.60 | 0.90 | 1.20 | 1.50 | ||||||
Rate of Output | M3/H | 15~25 | 35~50 | 70~110 | 95~140 | 120~180 | 150~220 | ||||||
Gauge | mm | 600 | 600 | 900 | 600 | 900 | 600 | 900 | 600 | 900 | 1500 | 1500 | |
Main rope Traction | KN | 7.2~10.4 | 12.3~18.5 | 20.0~28.0 | 31.0~50.0 | 37.0~55.0 | 52.0~72.0 | ||||||
Wire rope Diameter | mm | 12.5 | 12.5~15.5 | 15.5 | 17.0 | 18.5 | 20.0 | ||||||
Engine | Power | kw | YBB11-4 | YBB17-4 | YBB30-4 | YBB45-4 | 55 | 75 | |||||
| Working Voltage | v | 380/660 | 380/660 | 380/660 | 380/660 | 380/660 | 380/660 | |||||
Dimension | Lenght | mm | 5500 | 6110 | 6800 | 8610 | 10550 | 11000 | |||||
| Width | mm | 1170 | 1305 | 1850 | 2050 | 2250 | 2400 | |||||
| Height | mm | 1800 | 2000 | 2350 | 2745 | 2870 | 3000 | |||||
Discharge height | mm | 2100 | 2300 | 2500 | 2800 | 3000 | 3200 | ||||||
Weight | t | 2.5 | 4.75 | 6.5 | 9.8 | 12.5 | 15 |
