Double Speed Mining Electric Multi Purpose Winch
- Qingdao
- T/T Credit Card
You May Like
-
Factory Made Mining Electric Double-speed Drum General Purpose Winch JSDB-13 Type
-
Mine Electric Hoist Winch JSDB-16 Type Two-speed Wire Rope Multi Purpose Winch
-
The Winch Lifting Mining Fixed Hoist Sheave
-
Mining Lifting Winch Accessories Head Hoist Sheave 800 Type
-
High Quality Mining Winch Lifting Head Hoist Sheave Factory Supplier
-
Lifting Winch Accessories Hot Sell Fixed Head Hoist Sheave
Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | JSDB series | Power Source | Electric | |
| Application | Auto | Capacity | 130KN |
Product Description
Double speed mining electric multi purpose winch
This type winch adopt "tooth - al" driving system and transmission characteristics of the biaxial multistage, realized the fast and slow speed of two, its slow can replace existing prop-pulling hoist winch, and a slow its fast can replace the existing scheduling winch and winch.
On the structure characteristics, not only to achieve the small structure, the characteristics of big tension, also realized the elongated symmetric structure characteristics, suitable for the coal mine narrow work space, convenient operation. It overcome the current slow, prop-pulling hoist series of low transmission efficiency, short service life, low efficiency, also overcomes the series winch, scheduling, transportation of traction force is small, wide type structure, etc.
Technical parameter
Model | JSDB | ||
Max Tension(KN) | Slow speed | Outer | 130 |
Inner | 200 | ||
Average | 165 | ||
Rapid | ≥15 | ||
Rope speed(m/s) | Average speed | ≤0.2 | |
Max speed | ≥1.2 | ||
Reduction Rate | Slow | 209.66 | |
Rapid | 25.82 | ||
Wire rope | Diameter (mm) | 24 | |
Rope capacity(m) | 280 | ||
Motor | Model | YBK2-225M-8 | |
Power(KW) | 22 | ||
Rotate speed (r/min) | 730 | ||
Roll diameter(mm) | Diameter | 434 | |
Width | 531 | ||
Dimension (mm) | Length | 3158 | |
Width | 970(1215) | ||
Height | 1030 | ||
Weight [including motor] (kg) | 3780 | ||

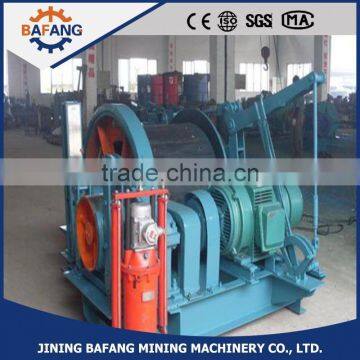

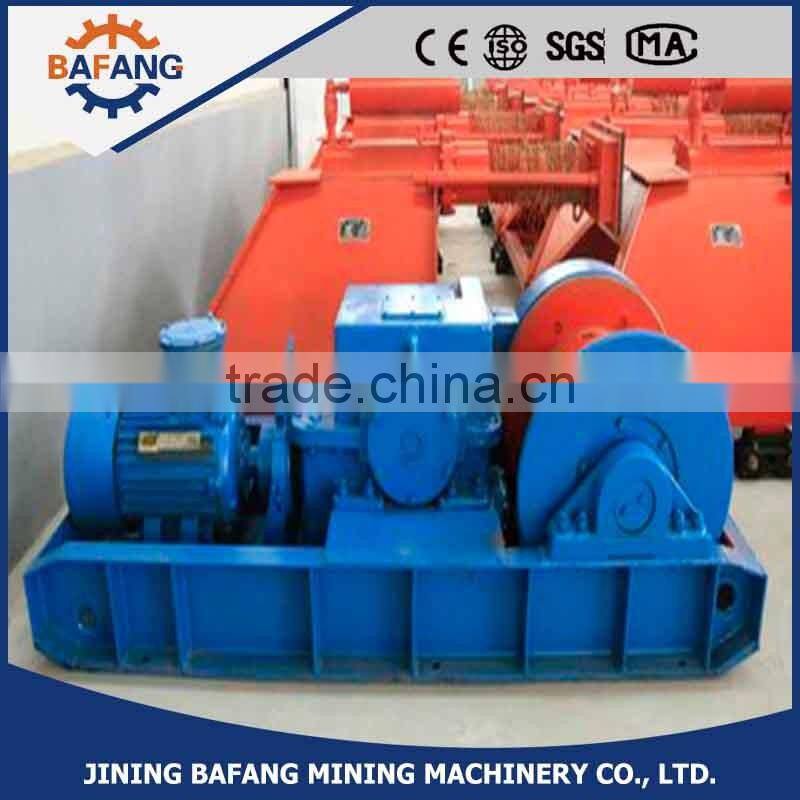

Product pictures
