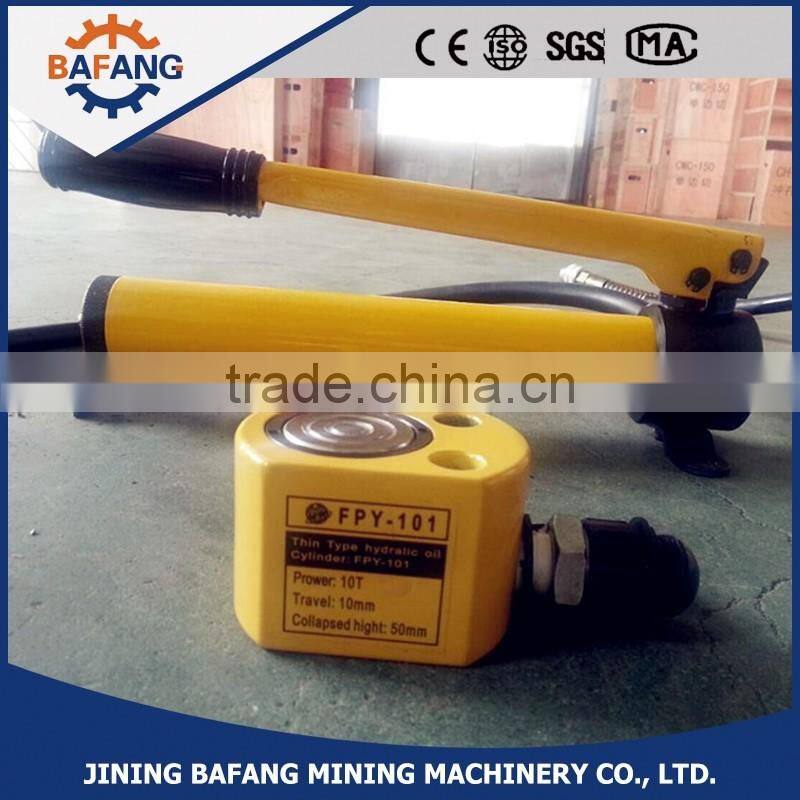

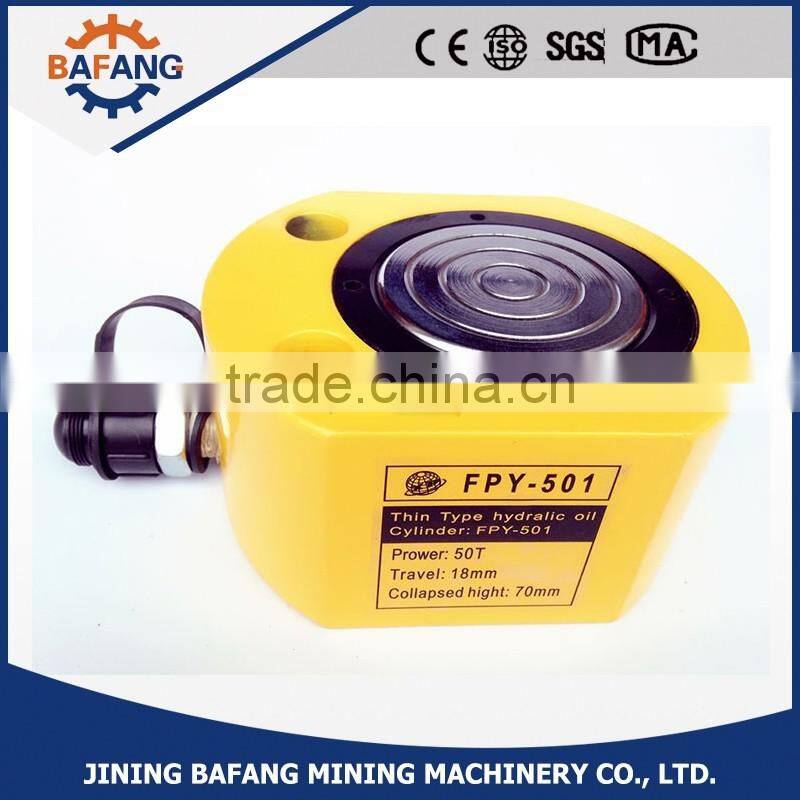

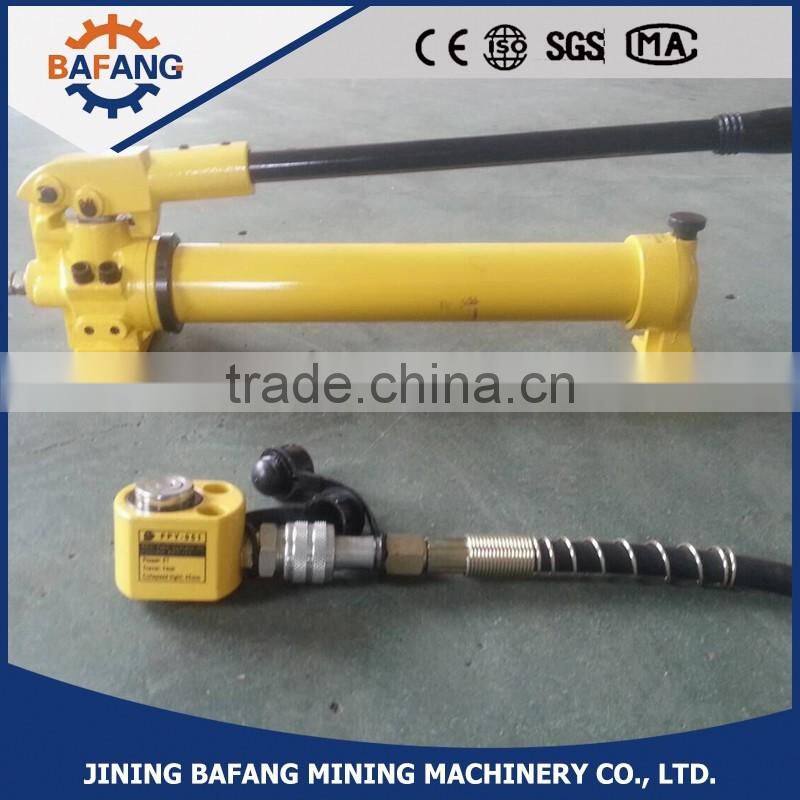

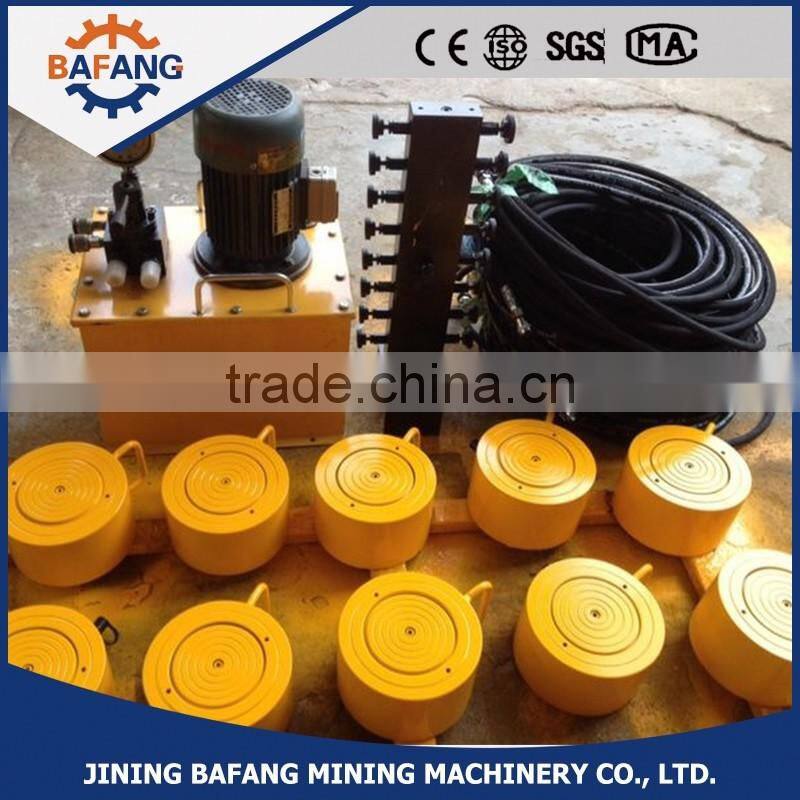

FPY series thin type hydraulic jack,hydraulic flat jack FPY
Hydraulic jack FPY Series Super-thin Hydraulic Jack
1.The surfaceof plunger is finished with chrome plate to protect the using of longevit of the product.
2.Plunger has the function of retracting automatically.
3.All FPY series cylinders require a solid lifting surface for correct support .
4.Using cylinder on the surfaces such as sand ,mud or dirt may result in cylinder damage.
Super-thin hydraulic jack
Product Name | Model | Tonnage | effective area | Cylinder bore | Cylinder Diameter | Weight | Travels | Collapsed Height |
|
Super thin Hydraulic Jack | FPY-5 | 5T | 9.61 | 35 | 64 | 0.7 | 7 | 41 |
|
Super thin Hydraulic Jack | FPY-10 | 10T | 15.89 | 45 | 83 | 1.6 | 11 | 51 |
|
Super thin Hydraulic Jack | FPY-20 | 20T | 33.16 | 65 | 102 | 2.75 | 13 | 57 |
|
Super thin Hydraulic Jack | FPY-30 | 30T | 50.24 | 80 | 125 | 5 | 14 | 63 |
|
Super thin Hydraulic Jack | FPY-50 | 50T | 78.5 | 100 | 155 | 8.5 | 18 | 72 |
|
Super thin Hydraulic Jack | FPY-100 | 100T | 143.6 | 135 | 206 | 19.25 | 21 | 88 |
|
