Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > JZ-5 Type Mining Shaft Wire Winder Sinking Winch

JZ-5 Type Mining Shaft Wire Winder Sinking Winch

Name: JZ-5 Type Mining Shaft Wire Winder Sinking Winch
Brand: Bafang
SKU: 141097594

JZ-5 Type Mining Shaft Wire Winder Sinking Winch thumbnail-1

JZ-5 Type Mining Shaft Wire Winder Sinking Winch thumbnail-2

JZ-5 Type Mining Shaft Wire Winder Sinking Winch thumbnail-3

JZ-5 Type Mining Shaft Wire Winder Sinking Winch thumbnail-4

JZ-5 Type Mining Shaft Wire Winder Sinking Winch photo-1

JZ-5 Type Mining Shaft Wire Winder Sinking Winch photo-2

JZ-5 Type Mining Shaft Wire Winder Sinking Winch photo-3

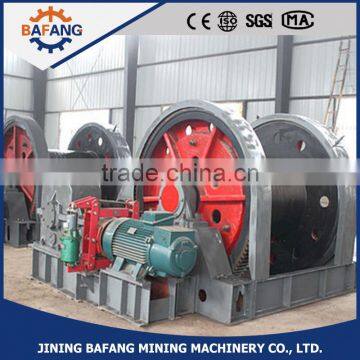

JZ-5 Type Mining Shaft Wire Winder Sinking Winch photo-4

US$ 3,000 - 4,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Bafang

Model Number:

JZ-5

Contact Supplier Request Quote Chat Now

Jining Bafang Mining Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Bafang

Model Number JZ-5

Type Bucket Teeth

Machine Type Crusher

Certification AISI

Material Stainless Steel

Processing Type Casting

Use Coal Mining

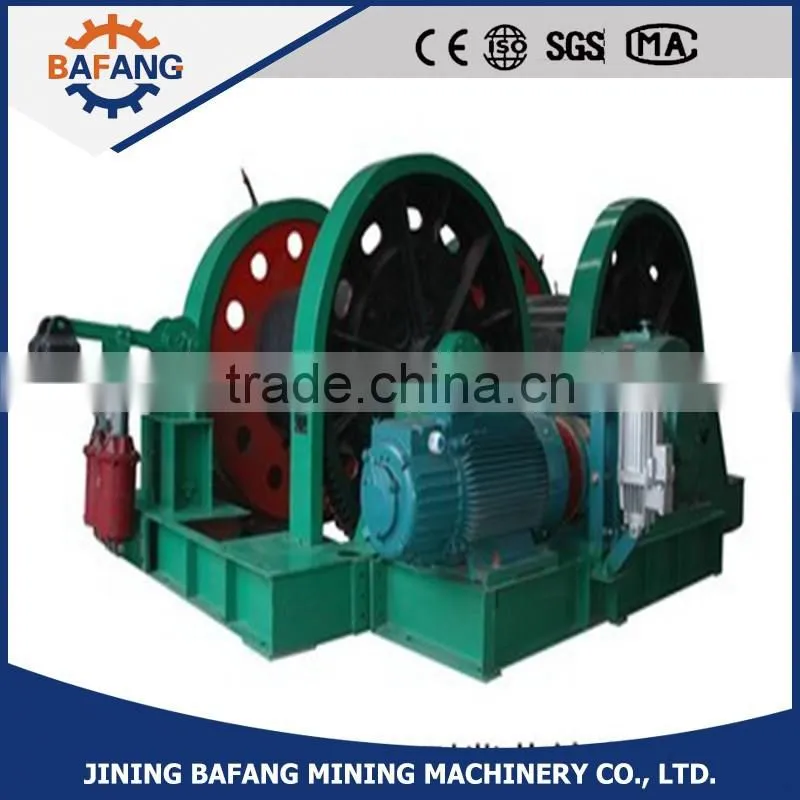

JZ-5 type mining shaft wire winder sinking winch

Product Description

JZ series sinking winch with lifting capacity, high rope capacity, smooth rotation, etc.

It mainly used in coal mining, metal and non-metallic mineral pit shaft engineering in suspension stage, water pump, ram, compressed air cylinder, excavating equipment such as grouting pipe and the tension rope, also can be used for other underground and ground lifting heavy objects.

Technical parameter

Model	JZ-5/400	JZ-10/600	JZ-16/800	JZ25/1000
Max tension	50KN	100KN	160KN	160KN
Capacity	400N	600N	800N	1000N
Speed	6m/min	6 m/min	6 m/min	6 m/min
Diameter	23mm	31 mm	40 mm	40 mm
Power	11kw	22 kw	30 kw	37 kw
Voltage	380v	380 v	380 v	380 v
Dimension (mm)	237519701340	303725701770	335832002240	350832002240
Weight	3140kg	6250 kg	11480 kg	11700 kg
