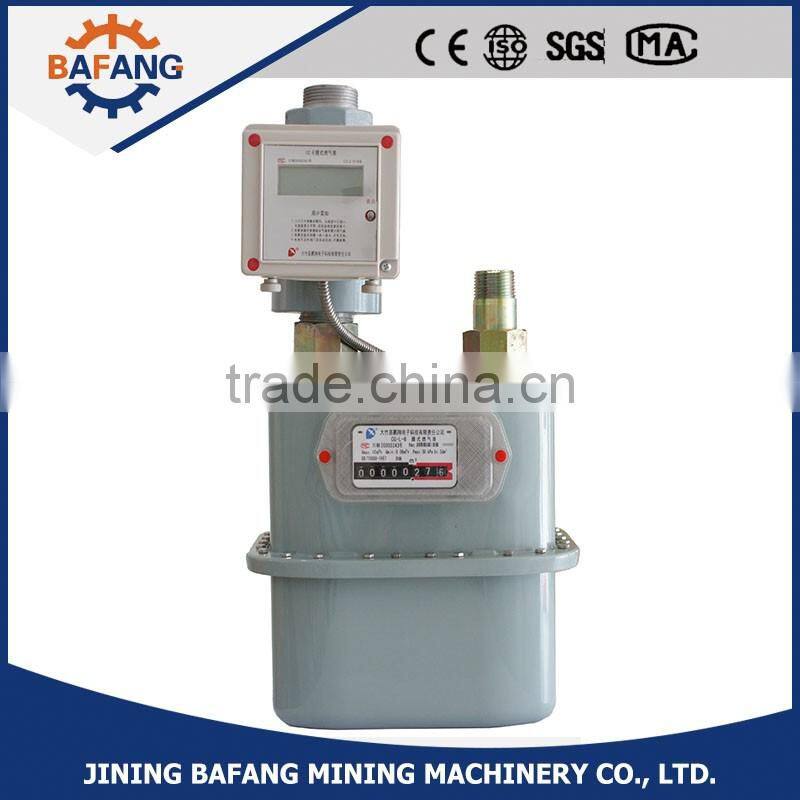

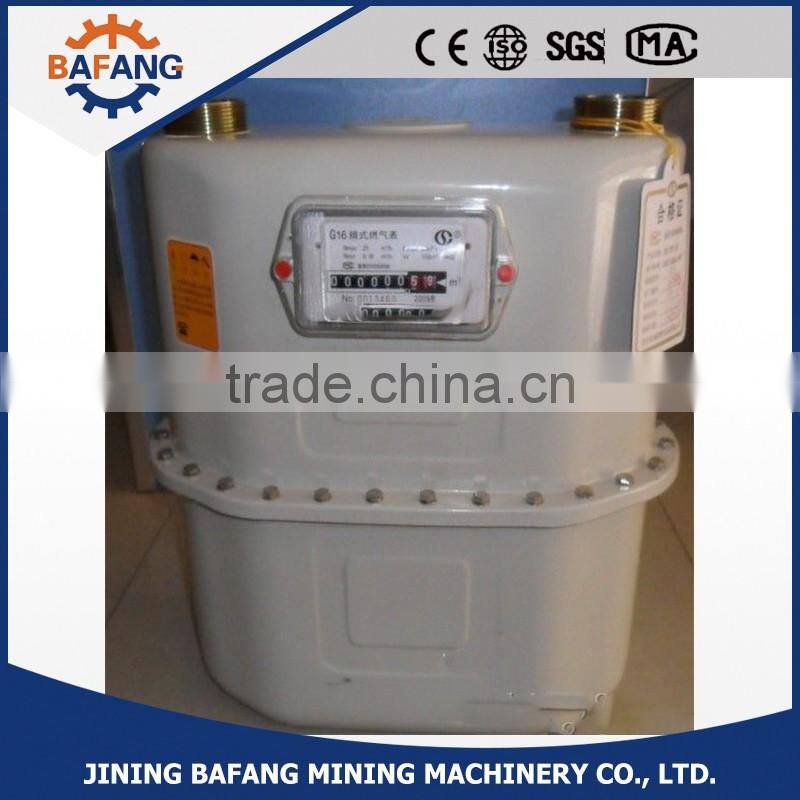

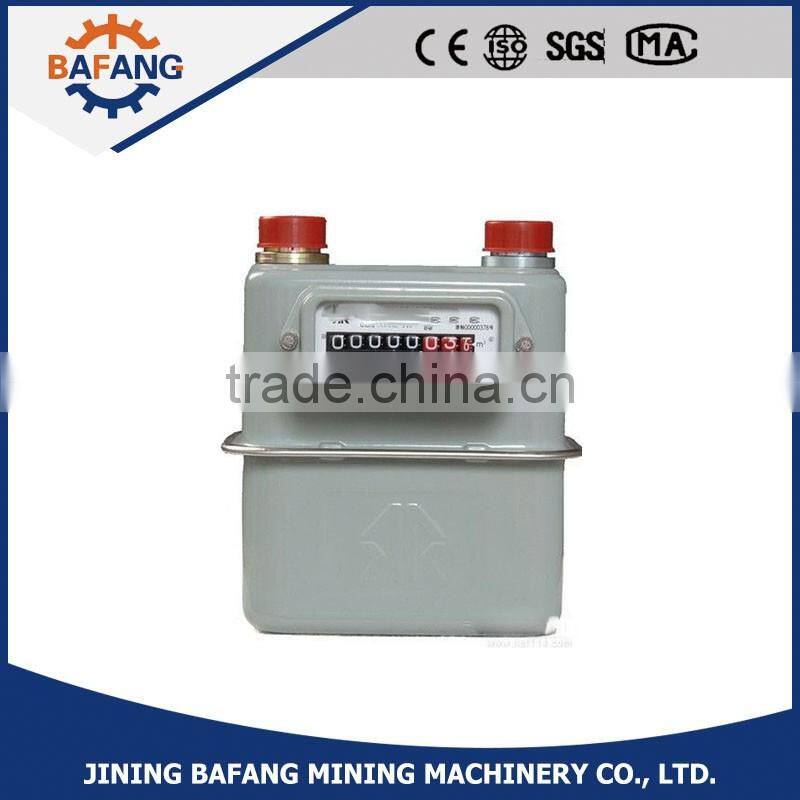

Indusrial mechanical diaphragm gas flowmeter
Application
G series of diaphragm gas meter mainly applies to industrial, commercial, and public units and residents for natural gas, the artificial coal gas and liquefied petroleum gas (LPG) pipeline gas flow meter.The flow range is 0.06-100m3/h.
Feature
Good Sealing ,high switching performance
High measuring accuracy,good antiseptic ability
Light weight,low noises,
Safe and reliable,long service life
Technical indicator
Item | Model Parameter | ||||
G6 | G10 | G16 | G25 | ||
Nominal flow rate(m3/h) |
| 10 | 16 | 25 | |
Max Flow Rate (m3/h) | 10 | 16 | 25 | 40 | |
Min Flow Rate (m3/h) | 0.06 | 0.1 | 0.16 | 0.25 | |
Working pressure(kPa) | 0.5-10 | 0.5-15 | |||
Total pressure losses(Pa)> | ≤200 | 300 | 300 | 300 | |
Measuring error(%) | Q min | ±3.0 | |||
0.2Qmax | ±1.5 | ||||
Q max | ±1.5 | ||||
Working temperature(℃) | -10-+40 | ||||
Storage temperature (℃) | -10-+50 | ||||
Service life(year) | 10 | ||||
Joint nominal diameter(inch) |
| G2 1/2" | G2 1/2" | G2 1/2" | |
Accuracy grade | Grade B | ||||
Connection | G11/4’ | G2" | G2" | M80×3 | |
Joint central moment(mm) | 160 | 180 | 280 | 280 | |
L(mm) | 249 | 284 | 397 | 411.5 | |
B(mm) | 191 | 216.8 | 260 | 279.6 | |
H(mm) | 262 | 310 | 370 | 437.5 | |
D(mm) | 77.5 | 92 | 125 | 129.5 | |
Weight(KG) | 3.1 | 4.3 | 9.2 | 14 | |
Delivery Detail : Within 7 days after receive your payment
Packaging Details : Standard package or as customers' requirement
