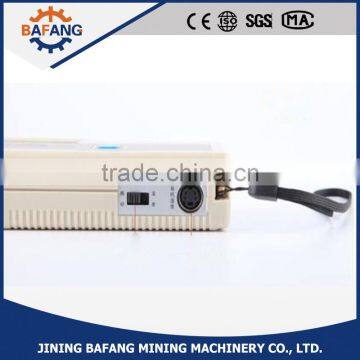

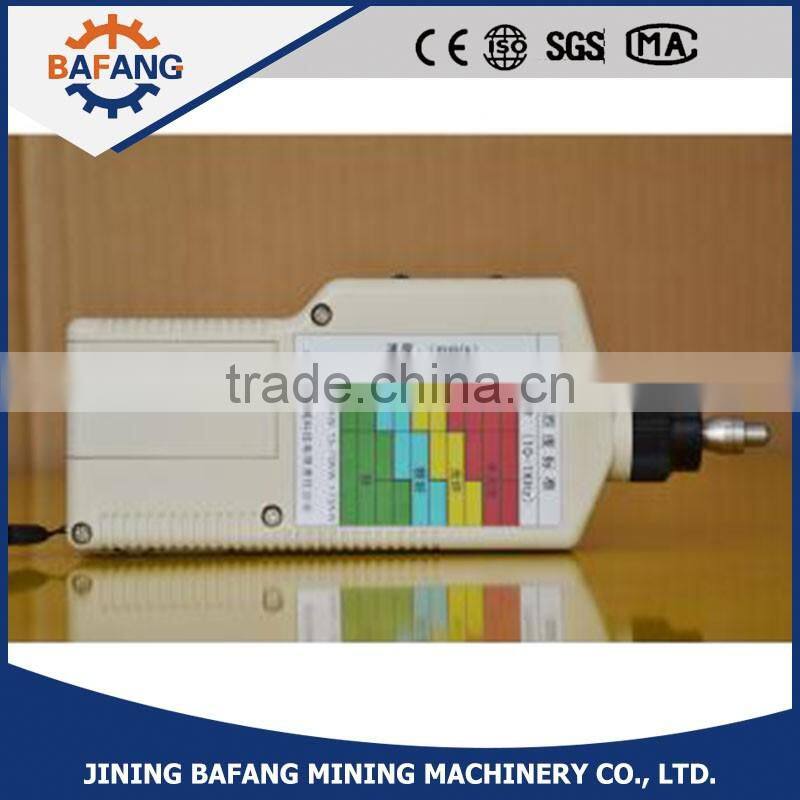

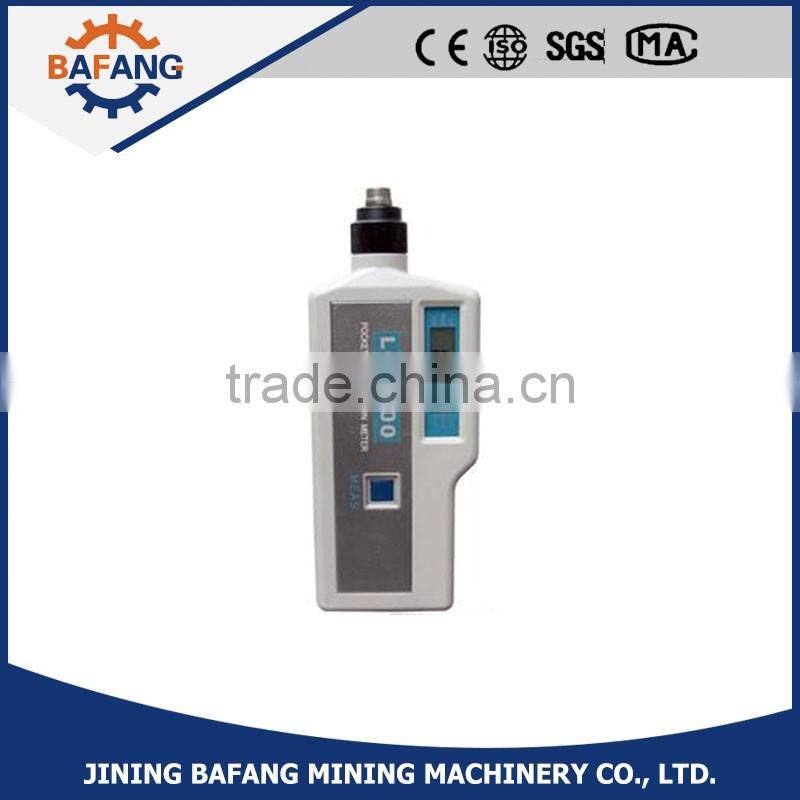

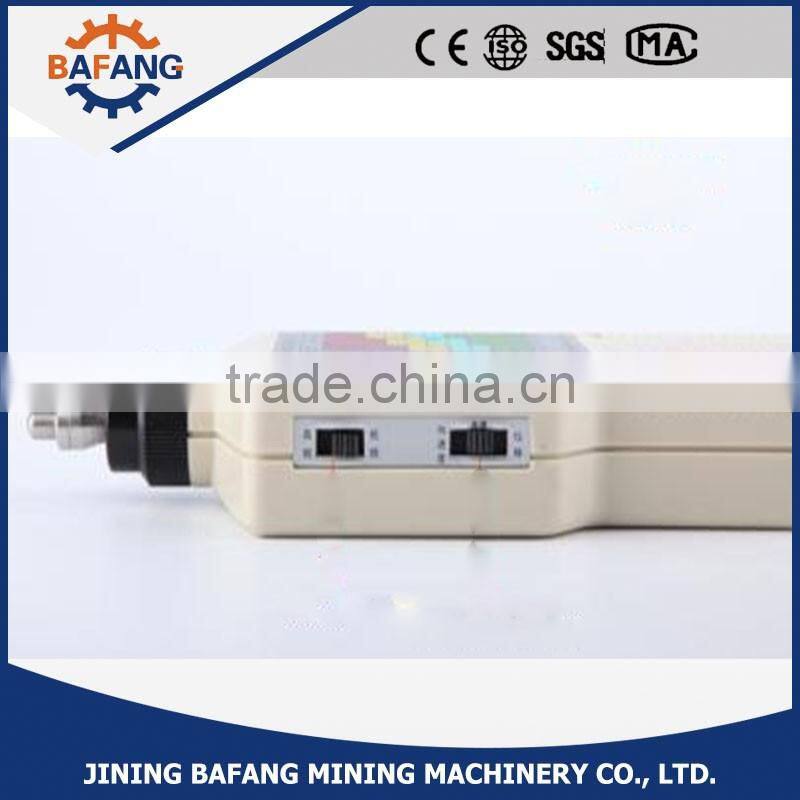

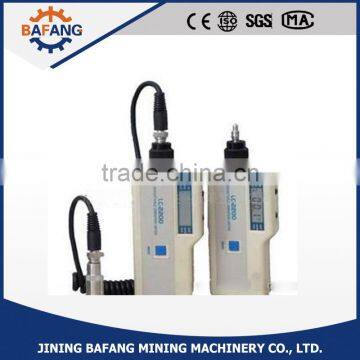

Portable LC-2200 vibration meter price
Brief introduction
Vibromter equipped with vibration test, the bearing status analysis and infrared temperature measurement function. Simple to operate, automatic instructions state alarm, suitable for monitoring equipment status field equipment operation and maintenance personnel. Widely applies to machinery manufacturing, electric power, smelting, vehicles, etc.
Technical Data
Function | Parameter |
Measuring Range | Acceleration:0.1~199.9m/s2(single peak ) Speed:0.1~199.9mm/s(effective value) Displacement:0.001~1.999mm(peak-to-peak) Temperature :0 ℃~400 ℃ |
Frequency Range
| Acceleration:5/10~1KHz;1K~15KHz Speed:5/10~1KHz Displacement:5/10~1KHz |
Measuring Accuracy | Vibration 5%±2;temperature 1%±1 |
Display | LCD |
Signal Output | AC 2V peak |
Power Supply | 9V laminated cell |
Continuous Service time | 25h |
Dimension | 185*68*30mm |
Weight | 200g |
Model select
MODEL
| Sensor type
| Function
| Frequency range |
LC-2200AN | Standard(Integrated) | Speed, acceleration and displacement | 10~10KHz |
LC-2200AL | low frequency (Integrated) | Speed, acceleration and displacement | 5~10KHz |
LC-2200ANC | Vibration & temperature testing(Integrated) | Speed, acceleration and displacement,temperature | 10~10KHz |
LC-2200ALC | low frequency vibration & temperature testing (Integrated) | Speed, acceleration and displacement,temperature | 5~10KHz |
LC-2200BN | Standard(separated) | Speed, acceleration and displacement | 10~10KHz |
LC-2200BL | low frequency(separated) | Speed, acceleration and displacement | 5~10KHz |
LC-2200BNC | Vibration & temperature testing(separated) | Speed, acceleration and displacement,temperature | 10~10KHz |
LC-2200BLC | low frequency vibration & temperature testing (separated) | Speed, acceleration and displacement,temperature | 5~10KHz |
Delivery Detail : Within 5 days after receive your payment
Packaging Details : Standard package or as customers' requirement
