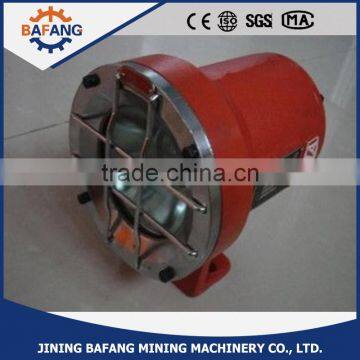

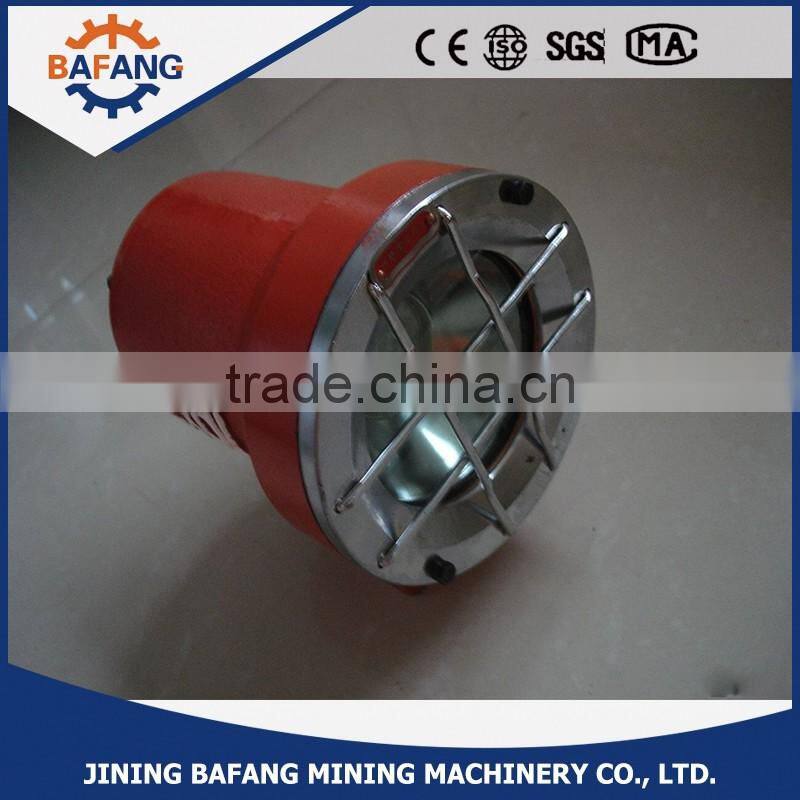

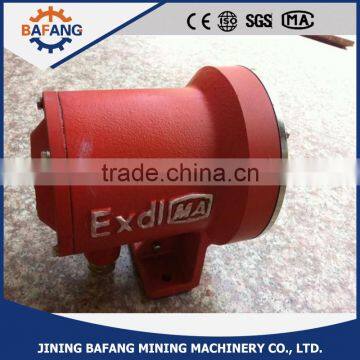

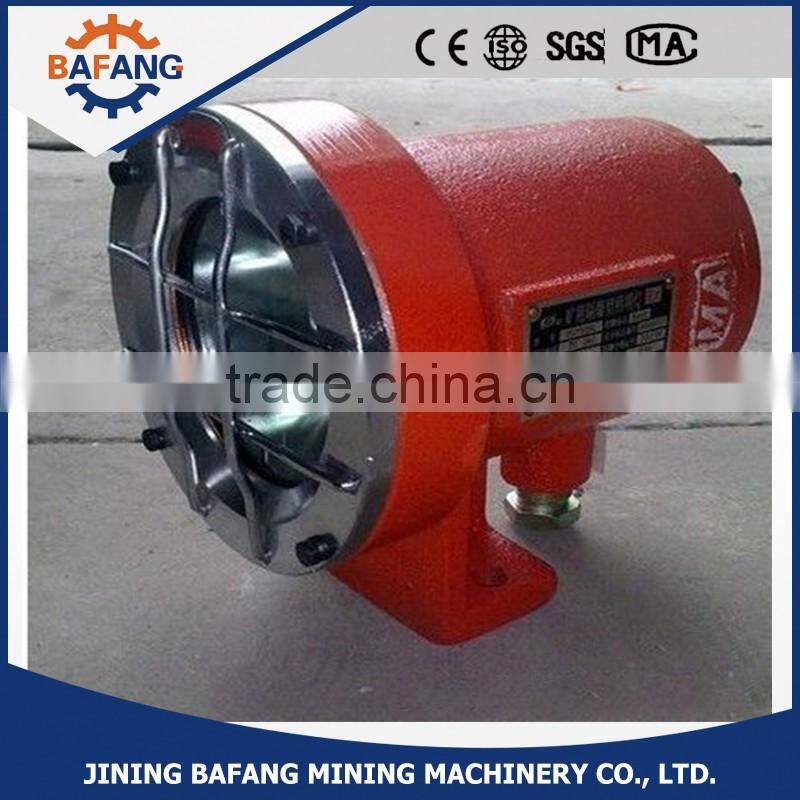

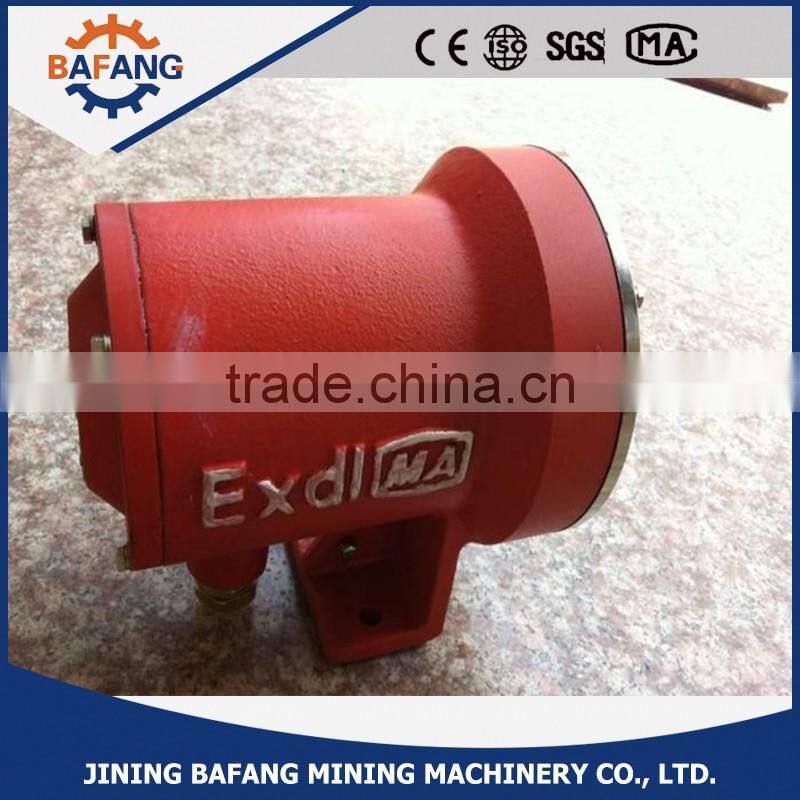

Explosion proof LED mining light/engine hatch lamp DGY18/36L(A)
Specifications
Ex code: Ex d I Mb
Ingress Protection: IP66
Standard: GB3836.1, GB3836.2, MT221
Technical Specification
Item | Specification |
Model No. | DGY18/36L(A) |
Input Voltage | AC 36v |
Input Current | 300mA |
Output Voltage | DC6~29V |
Power | 18W |
Lux at 40meters | ≥2 |
Leading-in Cable | Φ8mm~Φ14mm |
Net Weight | 9kg |
Material | Casting Iron |
Light source | LED |
Application
The lamp is approved to be safe used on the drill rig, the tunneling assembly equipment under the coal mine.
Characteristics of Performance
1. Equipped with world famous brand LED driver, ensuring the lamp have a stable performance.
2. It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp
3. The body is made of casting iron material, high intensity, able to withstand harsh impact expected from heavy industrial use.
4. The lamp has a good electromagnetic compatibility performance,Which can avoid the interference to the other electrical appliance and electric power transmission network.
5. The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
6.The lamp is flame proof type of protection, designed for use in harsh environment or explosive application.
