GCG1000 Dust Concentration Sensor for Coal Mine
- Qingdao
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | GCG1000 | Usage | Other, dust concentation | |
| Theory | Optical Sensor | Output | Digital Sensor |
Product Description

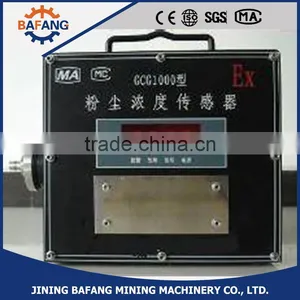

GCG1000 Dust concentration sensor for coal mine
Introduction
GCG1000 Dust concentration sensor is a kind of absorption, absorbing the domestic and foreign advanced technology of dust.It used to the principle of swimming float dust exposure in the darkroom light scattering intensity of dust is
proportional to the dust concentration. The scattering light intensity of light into electrical signals to compute the
relative quality of dust concentration.
GCG1000 Dust concentration sensor can calculate the relative mass concentration of dust with the aerosol testing
technology. Then through the preset parameter values, it can calculate the mass concentration of dust. Finally through
the LCD ,it is converted into a frequency signal or a current signal output.
The sensors can display the coal mine dust concentration continually and real time while 200-1000HZ frequency signal
output compatible with the coal mine monitoring systems and 4-20mA current signal for mine monitoring system or other
systems. Dust concentration through preset threshold warning point of dust concentration, it immediately outputs a
warning signal to alert staff to promptly activate the corresponding dust measures when dust concentration reaches the
value measured.
Specification
Measuring range | 0mg/m3~1000mg/m3 |
Measuring relative error | ±10% |
Sampling flux error | 18L/min±2.5% |
Working voltage | 12VDC~18VDC |
working current | ≤200mA |
Explosion protection | ExibI |
Working Temperature | O℃~ 40℃ |
relative humidity | ≤95% |
