KG5009 Ventilation Duct Air Flow Switch
- Qingdao
- Money Gram Credit Card
You May Like
-
PIR-800 Power Supply Smart Integrated Protective Device
-
ZBZ Coal Mine Explosion-proof Electric Drill Comprehensive Protective Equipment
-
High Voltage IP65 Cable Junction Box
-
Quality Methane CH4 & Oxygen O2 Gas Detector Alarm
-
BBJ Series High Quality Explosion-proof Sound-and-Light Alarm Light
-
Dust Concentration Sensor GCG1000
Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | KG5009 | Usage | Other | |
| Theory | Inductance Sensor | Output | Switching Transducer |
Product Description

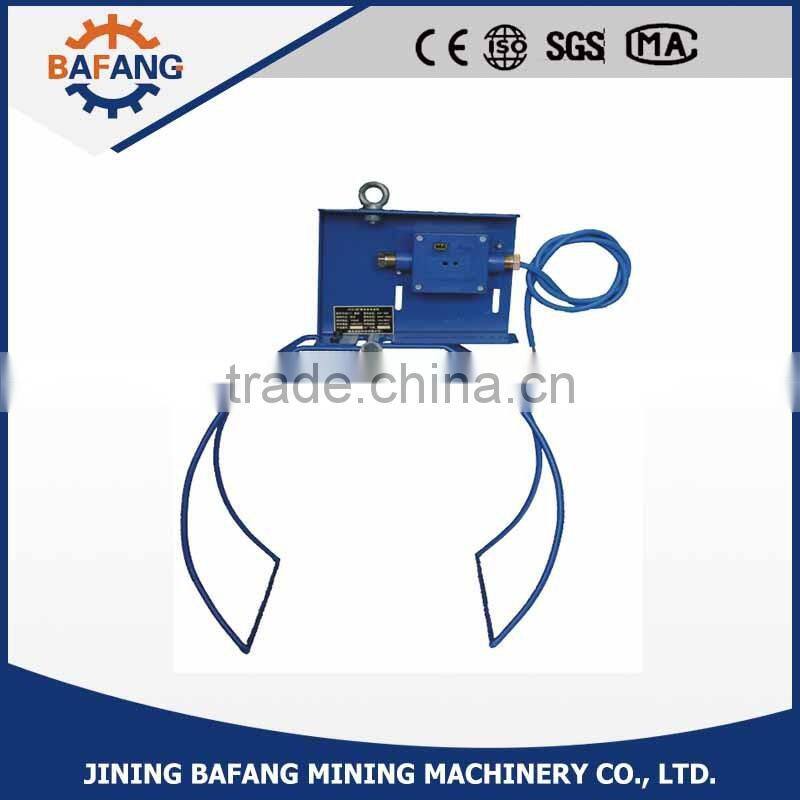

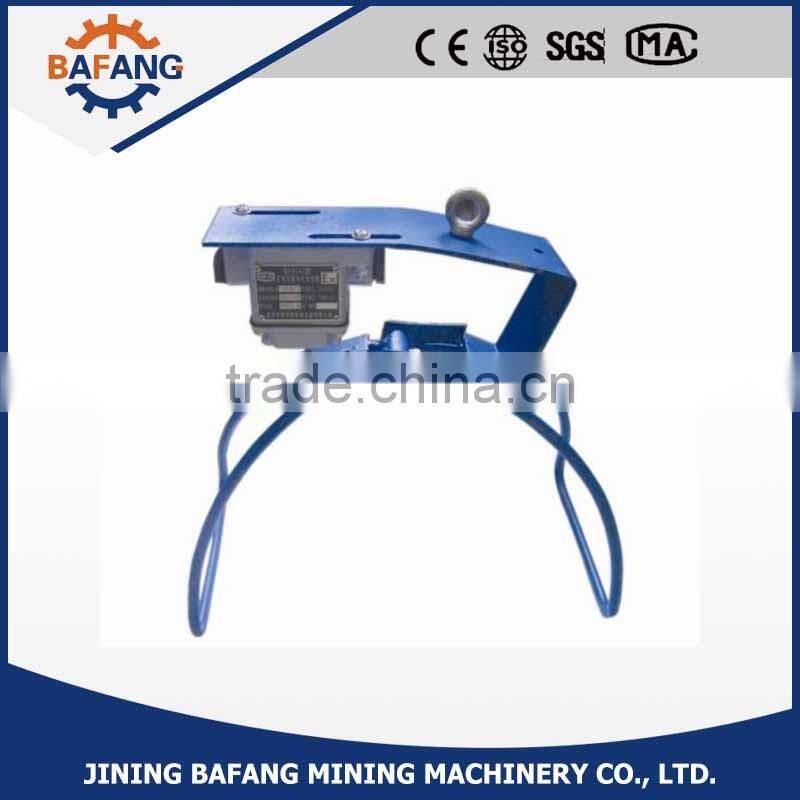

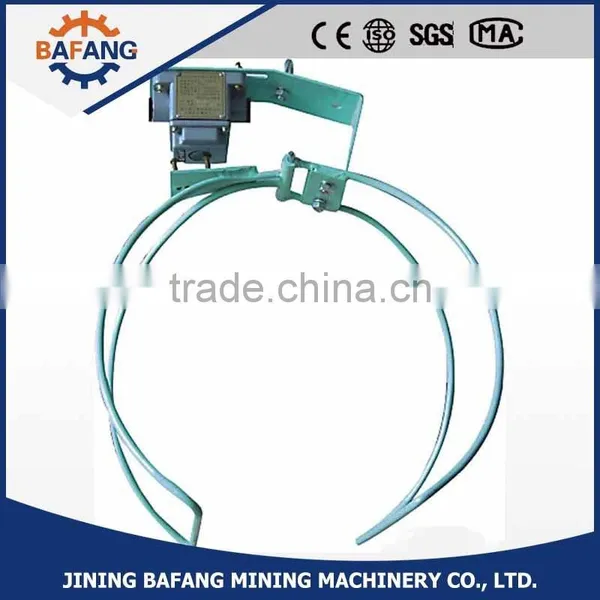

Bafang high quality KG5009 Ventilation duct air flow switch
Application
KG5009 Ventilation duct air flow switch is a ventilation duct mine safety monitoring of new devices for
intrinsically safe equipment.It is mainly used in coal mine for canvas or rubber flexible duct material
safety monitoring.It is installed in the duct, 5 meters from the outlet, the switch is a control system
of sub-stations and similar devices connected with monitoring equipment, used for duct work status
telemetry.
Parameters
Output switch: 2 (normally open contacts a group, a group of normally closed contacts)
Switch wiring capacity: 1.5mm2 ~ 4mm2
Conductor cable permissible diameter: Φ8mm ~ Φ12mm
Permissible diameter duct: Φ700mm, Φ750mm, Φ800mm
Switching point: ≤ 6m / s maximum transmission distance: 2km
Switch wiring capacity: 1.5mm2 ~ 4mm2
