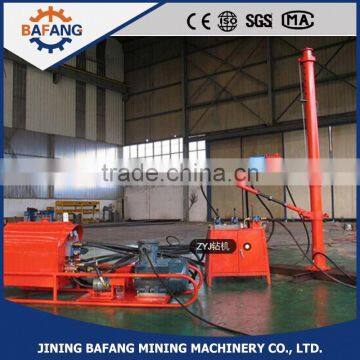

ZYJ frame column type hydraulic rotary drill rig
ZYJ Series Prop Type Hydraulic Rotary Drill Rig equips with carbide or PDC drill bit and high efficiency spiral drill rod.It is specially designed to release the gas and water in coal face. The borehole depth can up to 75m-200m.
Introduction of the structure
This drilling rig is light weight, easy operation and very reliable. It is accompanied with support and prop which can fix guide rail. It adopts up and down supporting type, the guide rail and propleg can be adjusted in 360°, makes the drilling angle ±90°. This rig is consisted by main frame, pump station, operation desk and hosed. Each part can be disassembled and transported easily.
parameters
Item | ZYJ-270/180 | ZYJ-380/210 | ZYJ-680/200 |
Boring Depth (m) | 75 | 100 | 200 |
Rated Torque (N.m) | 270 | 380 | 680 |
Rated Rotating Speed (r/min) | 180 | 210 | 200 |
Rotating Rated Pressure (Mpa) | 14 | 12.5 | 17 |
Feeding Rated Pressure (Mpa) | 8 | 8 | 8 |
Feeding Force (kN) | 13 | 10 | 30 |
Hoisting Force (kN) | 8 | 8 | 8 |
Feeding Stroke (mm) | 1330 | 1300/1800 | 1330/1800 |
Idle Load Pushing Speed (mm/min) | 3000 | 2500 | 2500 |
Back Speed (mm/min) | 3000 | 8000 | 8000 |
Noising Voice (dB(A)) | ≤90 | ≤90 | ≤90 |
Rotary Angle (º) | 0-360 | 0-360 | 0-360 |
Oil Tank Effective Capacity (L) | 120 | 200 | 200 |
Prop Height (mm) | 2200-2900/ 2990-3550/ 3500-4200 | 1800-3400 | 1800-3400 |
Main Frame Weight (kg) | 203/210/165 | 218/296/358 | 318/396/458 |
Pump Station Weight (kg) | 350 | 350 | 350 |
Main Frame External Size (mm) | 2582×420×(2200/2990/3500) | 2600×520×1800 | 2600×520×1800 |
Operation Desk External Size (mm) | 530×526×675 | 530×526×1200 | 530×526×1200 |
Pump Station External Size (mm) | 1800×500×800 | 1344×630×985 | 1450×630×1133 |
