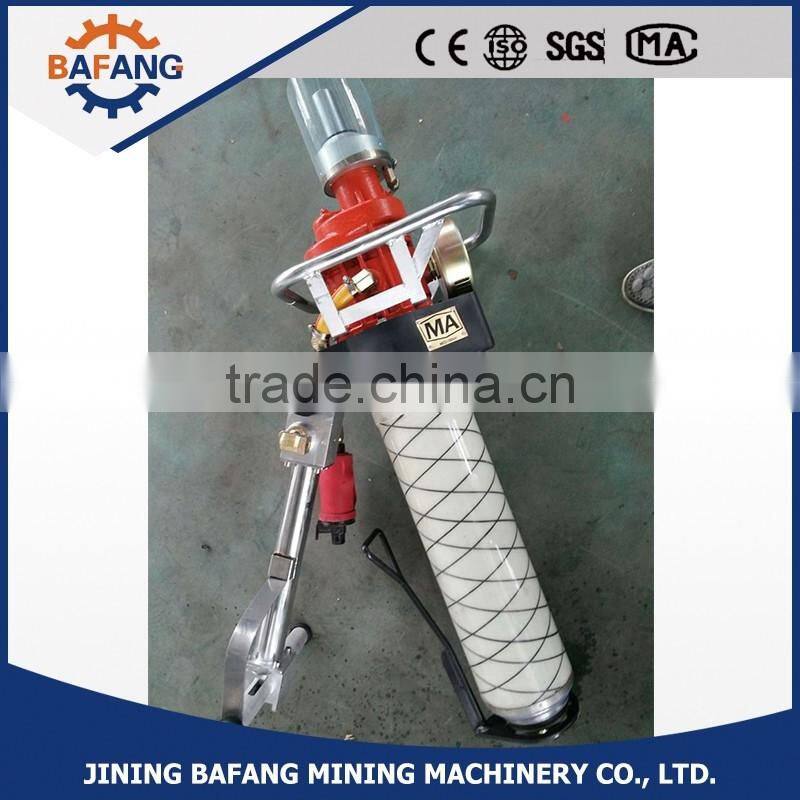

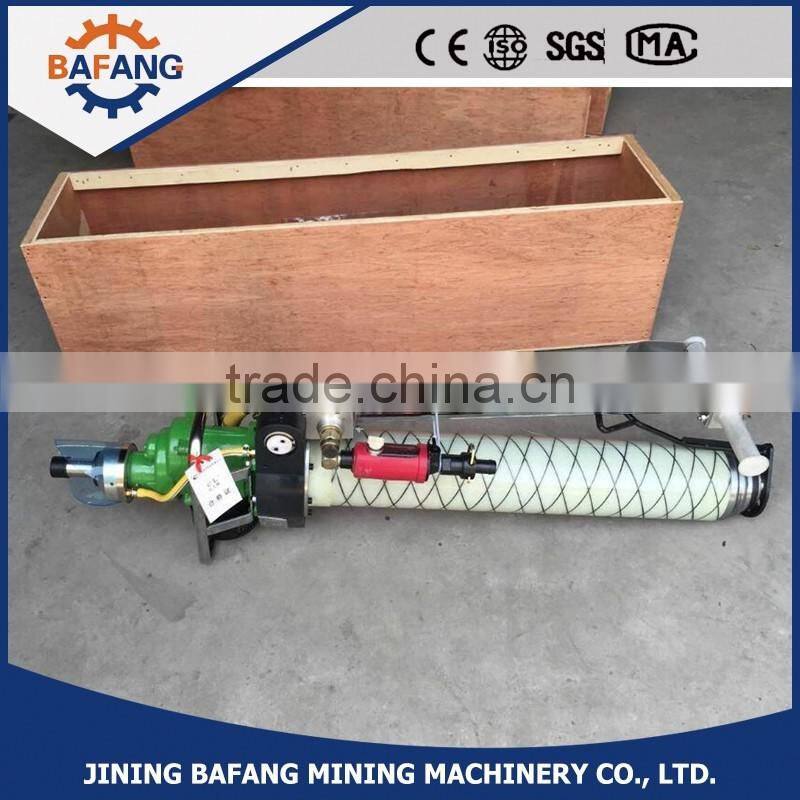

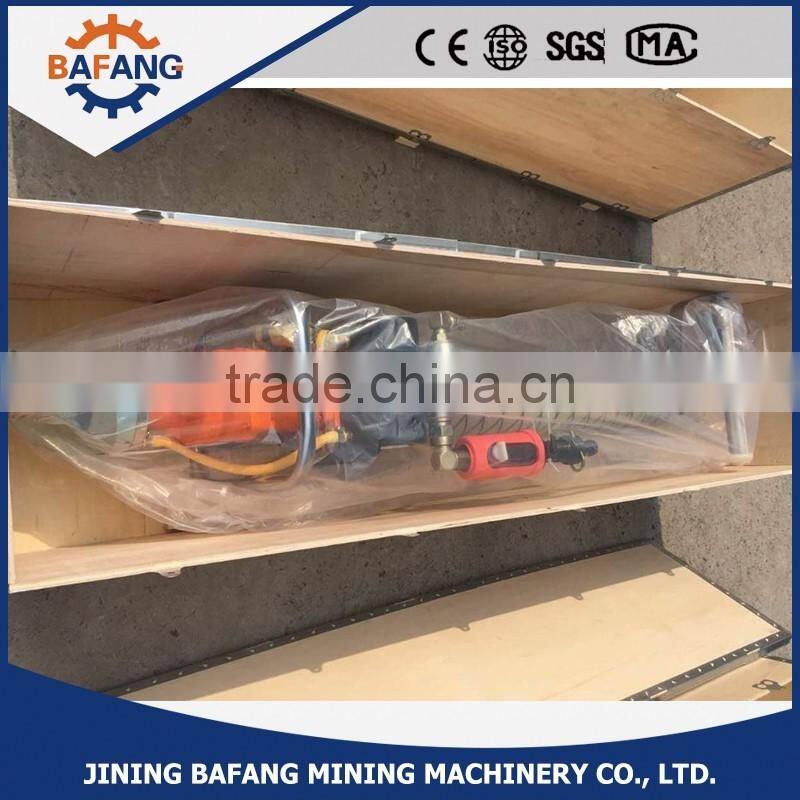

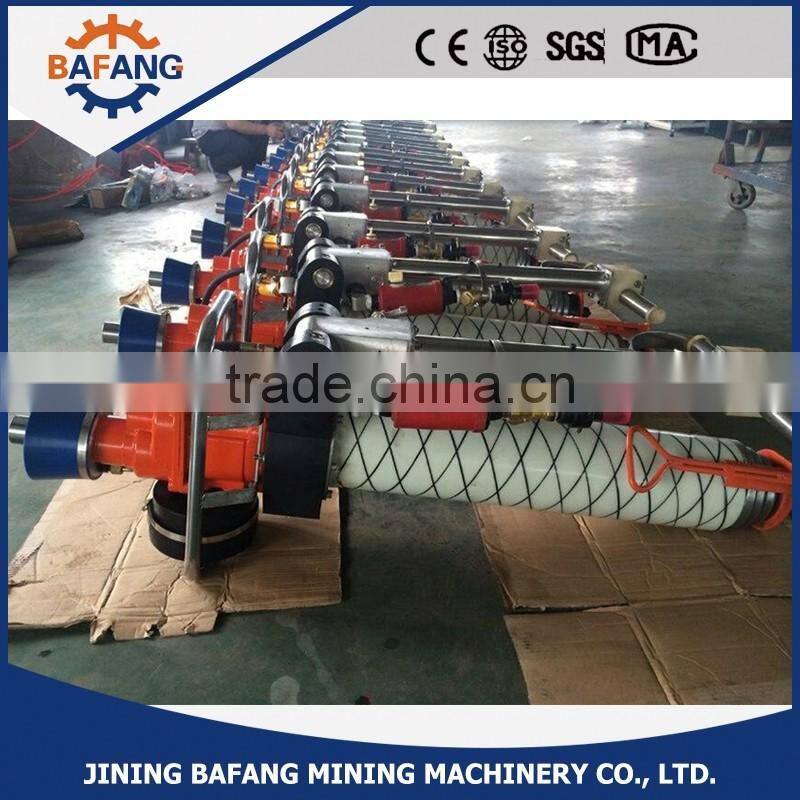

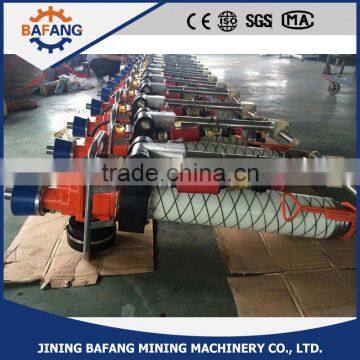

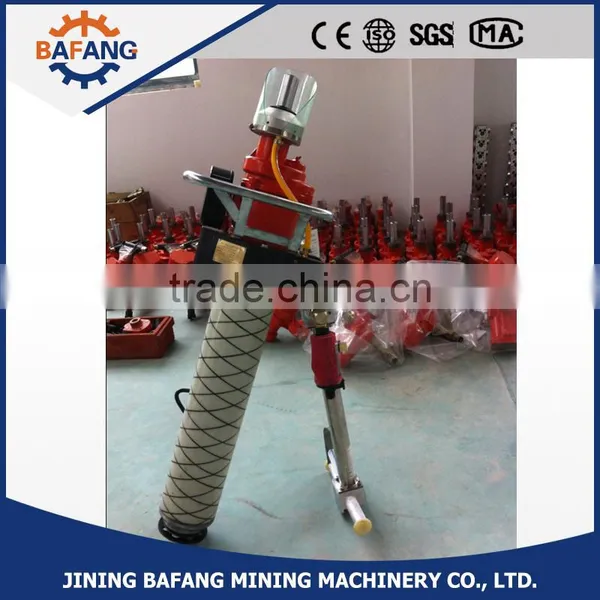

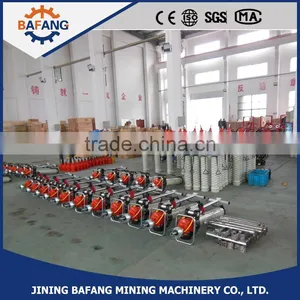

Anchor drill rig /roof bolting machine /Handheld jumbolter
MQT-90/2.3T MQT-100/3.1 MQT-110/2.8 MQT-130/3.2 MYT-140/320 MYT-150/320
Model :MQT-90/2.3T MQT-100/3.1 MQT-110/2.8 MQT-130/3.2 MYT-140/320 MYT-150/320
Features: Roofbolter series points for gas pneumatic anchor drilling machine (MQT) and hydraulic Roofbolter (myt), were applied on the hardness of roof is less than or equal to 9,9,10 of coal and half coal rock roadway,rock roadway anchor support operations and tunnel project, set drilling , stirring ,installed in a body, dual exhaust and new sealing structure ensuring the supporting leg,smooth lifting,improve work efficiency, unique sound system reduce machine noise, completely solve the because of declining ice to bring the power of troubles .
Uses: the machine is mainly used in the semi coal rock roadway,rock roadway anchor protection work and tunnel engineering ,set the drilling ,stirring ,installed in a body .
No. | Basic parameters | Unit | MQT-100/3.1 | MQT-110/2.8 | MQT-130/3.2 | MYT-140/320 | MYT-150/320 | ||||||||||
1 | Air pressure | Mpa | 0.40-0.63 | 0.40-0.63 | 0.40-0.63 | -- | -- | ||||||||||
2 | Rated torque | N.m | 0.5 | 0.5 | 0.5 | 14/8 | 14/8 | ||||||||||
3 | Water flushing pressure | mpa | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 | ||||||||||
4 | Rated torque | N.m | 100 | 110 | 130 | 140 | 150 | ||||||||||
5 | Rated rotation speed | R/min | 280 | 240 | 240 | 320 | 320 | ||||||||||
6 | No-load trust speed | mm/s | 400 | 400 | 400 | -- | -- | ||||||||||
7 | Max. Output power | Kw | 3.1 | 2.8 | 3.2 | -- | -- | ||||||||||
8 | No-load rotation speed | r/min | 900 | 700 | 720 | -- | -- | ||||||||||
9 | Stalling torque | N.m | 180 | 230 | 210 | -- | -- | ||||||||||
10 | Max. Load torque | N.m | 170 | 220 | 190 | -- | -- | ||||||||||
11 | Air consumption | M3/min | <=3.8 | <=3.6 | <=4.5 | -- | -- | ||||||||||
12 | Noise | Db(A) | <=90 | <=90 | <=95 | <92 | <92 | ||||||||||
13 | Leg type |
| I | II | III | I | II | III | I | II | III | I | II | III | I | II | III |
14 | Leg propulsion | kN | 5.2 | 6.7 | 9.8 | 5.2 | 6.7 | 9.8 | 5.2 | 6.7 | 9.8 | 5.2 | 6.7 | 9.8 | 5.2 | 6.7 | 9.8 |
15 | Overall Max.height | mm | 2566 | 3046 | 3614 | 2552 | 3032 | 3600 | 2540 | 3015 | 3600 | 2430 | 3360 | 4080 | 2460 | 3360 | 4080 |
16 | Overall Mini.height | mm | 1189 | 1309 | 1451 | 1175 | 1295 | 1437 | 1365 | 1725 | 2145 | 1200 | 1510 | 1750 | 1200 | 1510 | 1750 |
17 | Weight | kg | 45 | 47 | 49 | 48 | 50 | 52 | 50 | 52 | 55 | 51 | 58 | 64 | 51 | 58 | 64 |
18 | Rock drill rod | mm | B19 B22 | B19 B22 | |||||||||||||
19 | Rock drill bit | mm | 27 28 30 32 38 42 44 | 27 28 30 32 38 42 44 | |||||||||||||
Send Inquiry to This Supplier
