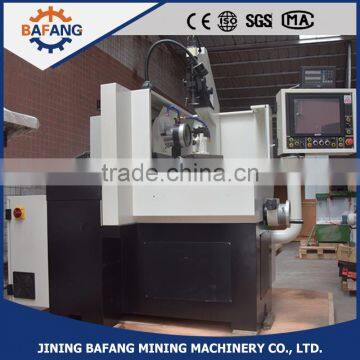

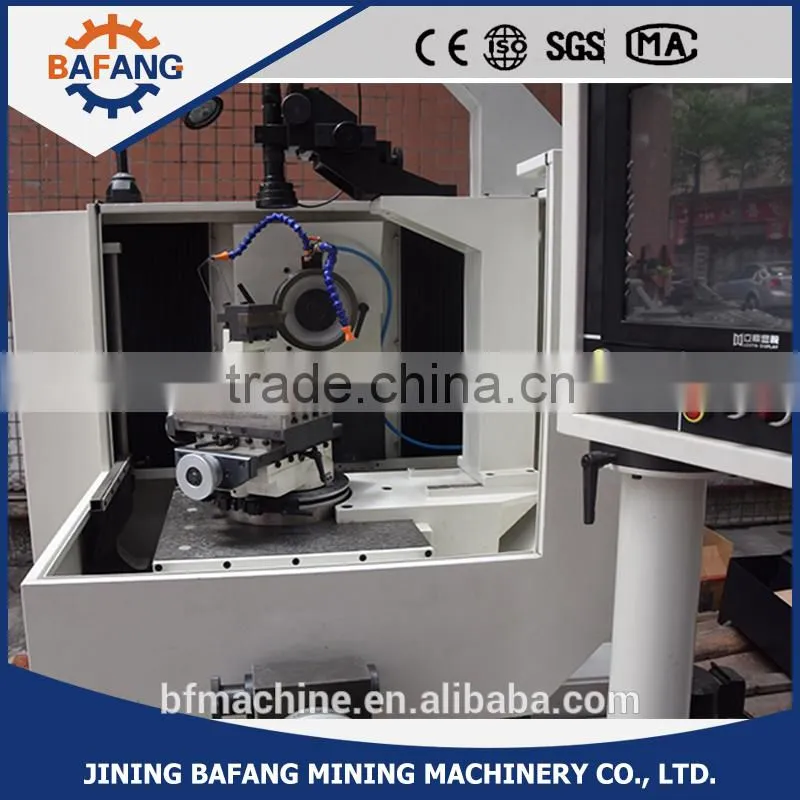

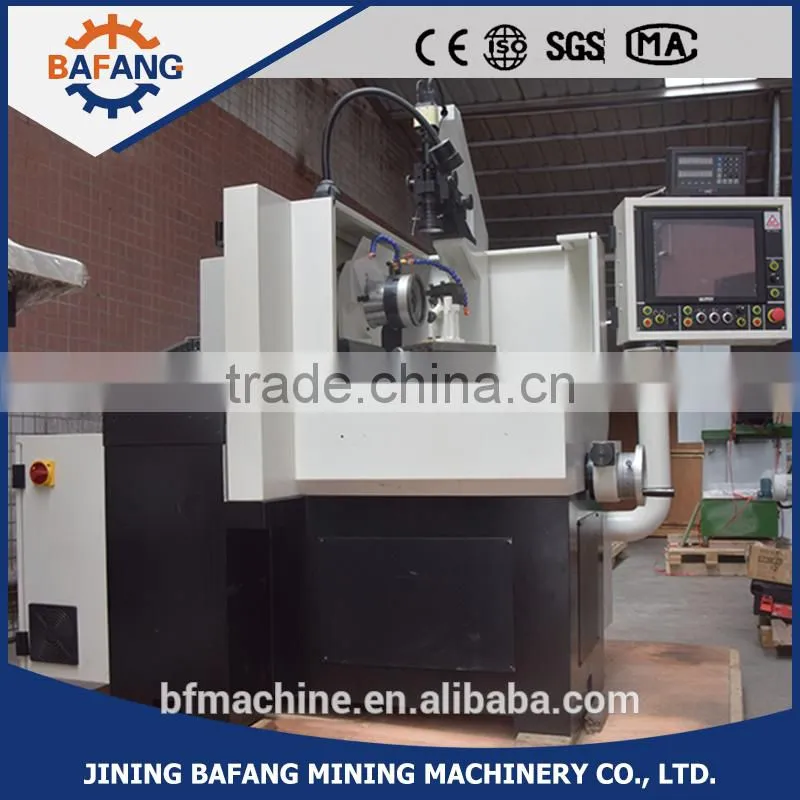

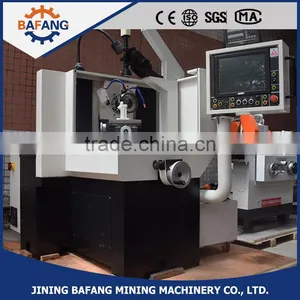

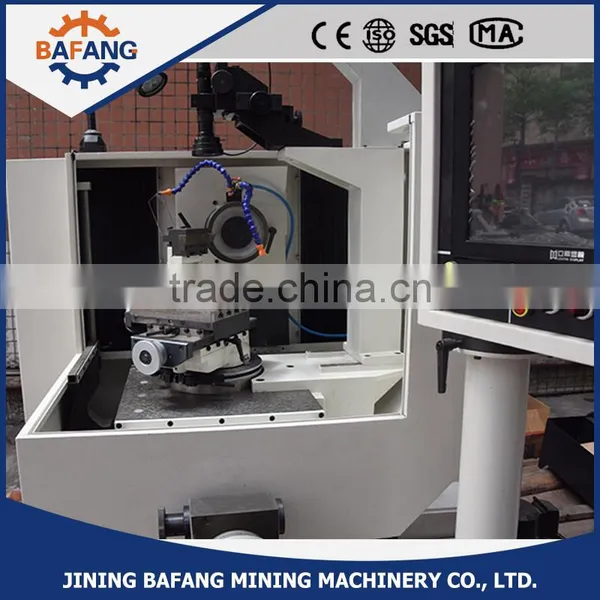

GD-150J CNC Tool grinder / woodworking tools cutter grinder

GD-150J CNC Tool grinder / woodworking tools cutter grinder

Machine features:

1. Machine structure: Machine bed (base) using high-quality integrated castings, the main components weighing 1.6 tons, to meet the requirements of any super-hard material grinding.

2. Machine spindle: grinding head with high-precision frequency control spindle, power: 3. O kilowatts, the maximum speed of up to 4000 r / min, using circulating water cooling, grinding head spindle rotation accuracy: 0.002 mm Jump 0.003 mm.

3. Manual feed mechanism: The machine adopts "rapid feed" and "precise feed", which are used for rapid feed / retract (0.5 mm / rev) and work feed (3 mm / rev) Not only improves the production efficiency but also ensures the feed precision.

4. Grinding head swing: the electrical components controlled by the intelligent smooth and no reverse vibration, swing amplitude of 0 to 30 mm between the free to adjust, so that uniform consumption of grinding wheel, timely self-sharpening, to ensure the grinding accuracy and roughness.

5. On-line CCD measurement: using optical microscopes, CCD cameras and industrial monitors consisting of the knife and measuring system, so that the machine can accurately detect from the R0.05 ~ R20 the various tip arc, but also accurate measurement Cutting knife width and the angle of the tip.

Technology breakthrough

1. Dual-position design: the machine's two stations, can easily operate and observe. Positive station (axial grinding wheel) to avoid splashing water; side to facilitate the cutting knife and knife and other special tools, grinding.

2. Vertical axis optimization: the micro-adjustment of the vertical axis into the work table in the fixture, greatly enhanced the stability and rigidity of the equipment.

Specifications:

Quality Assurance

1.Machine meet the standards of factory standard,Ministry of standard,GB set quality standards.

2. According to the relevant provision of the “National Product Quality Supervision and

  Regulation” Product,we implement the“three guarantees”:repair,replace or return.

3. If not belongs to supplier responsibility herein shall be settled by friendly consultations of two parties.
