300m Detection Deep Underground Water Detector Mine Locator

300m Detection Deep Underground Water Detector Mine Locator

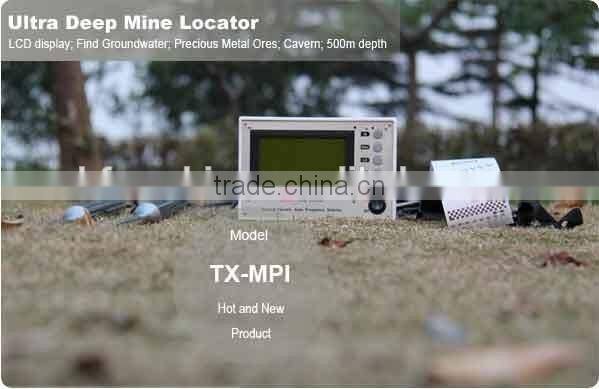

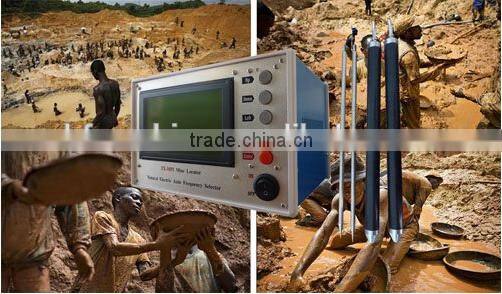

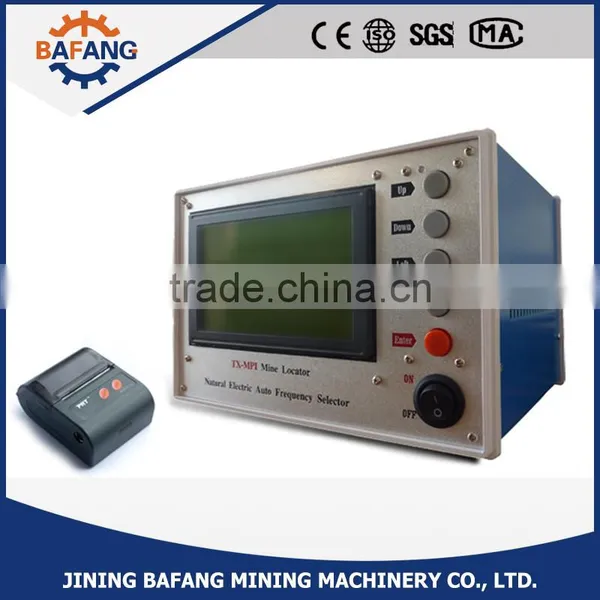

TX-MPI Mine Locator (500 meters Underground)
Natural Electric Auto Frequency Selector

Compare with traditional electric prospecting instrument:

(1) Do not need power supply, use natural electric field, through special amplify method it just need 20 meters receiver pole to complete survey.
(2) 2 people is enough to finish the work with high efficiency
(3) Light weight less than 5KG, easy to bring.

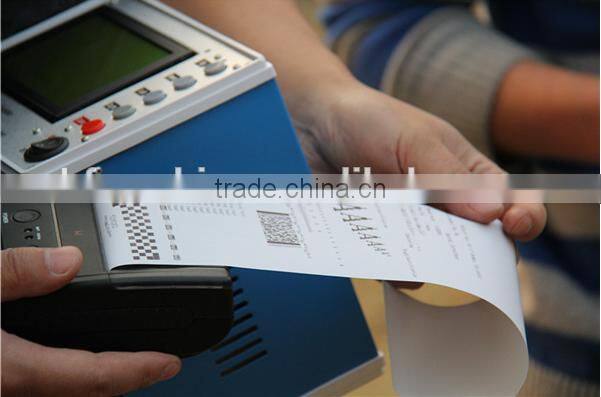

(4) Printing all kinds of curve immediately with the portable printer and analyzing at the same time. You can adjust and change survey dispose.

Use natural electric field and resistivity parameter produced by different of the geologic structure. It is widely using in prospecting metal minerals, non-metal minerals, underground water prospecting etc. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.

Only one person will finish indoor and outdoor work
      Do not need manual power supply,small cubage,light weight,carry about,high efficiency and exact address. It get over the default that traditional equipments have such as need many people to work together, heavy weight, complicated operation, low working efficiency and long lines.

Press one button to finish all the survey operations
      Machine is automatic control by micro PC. Easy operation. A press one button to finish all the operation. It do not need especial knowledge. When the survey is finished, press the button to display the curve and you can analyze at the same time.

High anti-jamming capability
You can get the good curve in the noise road and high electric jamming area for signal via frequency selector and digital processing.

Get survey parameter through Multiple-frequency, Multi-aspect and multi-measurement.
      It can survey in different position, do fixed point survey, solve same special geophysical problem and gather multi-measurement parameter through different kinds survey method.

Widely application and flexible using
     using for locator underground water, minerals and solve engineering geophysical problem and geophysical disaster. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.

Main functions and features
1 automatic noise reduction; super  anti-jamming.
2 3 frequencies or 30 frequencies measuring at one time.
3 operating functions are all on the LCD screen, easy operation.
4  auto-measuring, auto-stocked data. It doesn’t need to record the measured data and the data won't be lost when power off.
5   It can storage 20 curve measuring data of3 frequency and 30 frequency.
6   Curve and data are displayed on LCD screen. Curve and data also can printed by micro printer or pC printer .
7  Power supply by 4  dry batteries or 4 rechargeable batteries.
8  Electrode test and power monitor
9  Whole weight.1.5KG, size: 24CM×13CM×16CM.

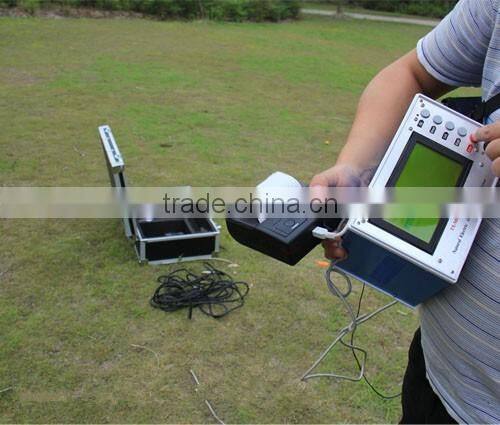

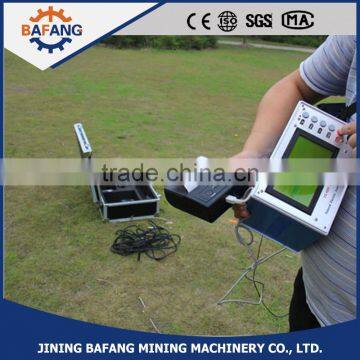

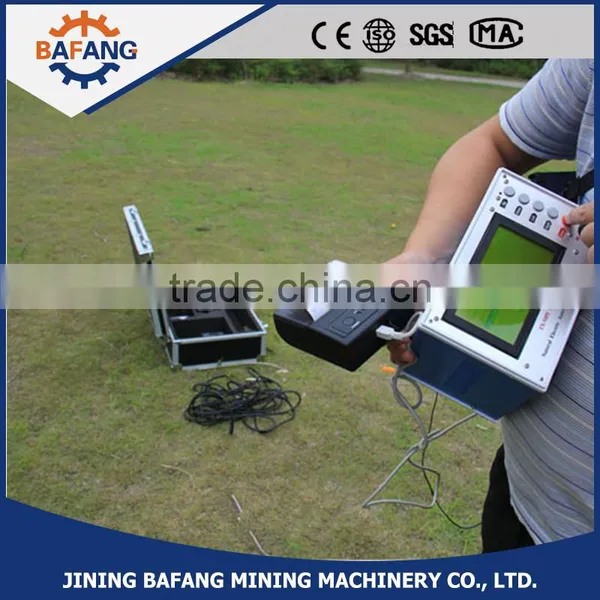

Accessory Portable Printer

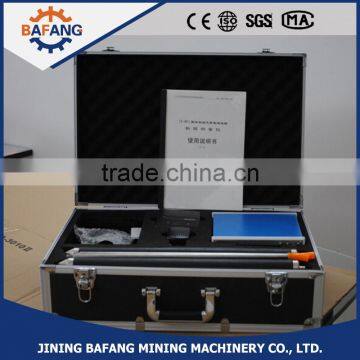

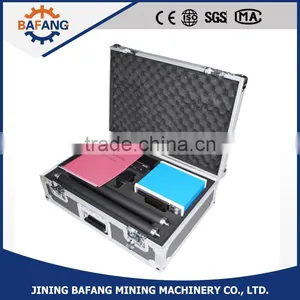

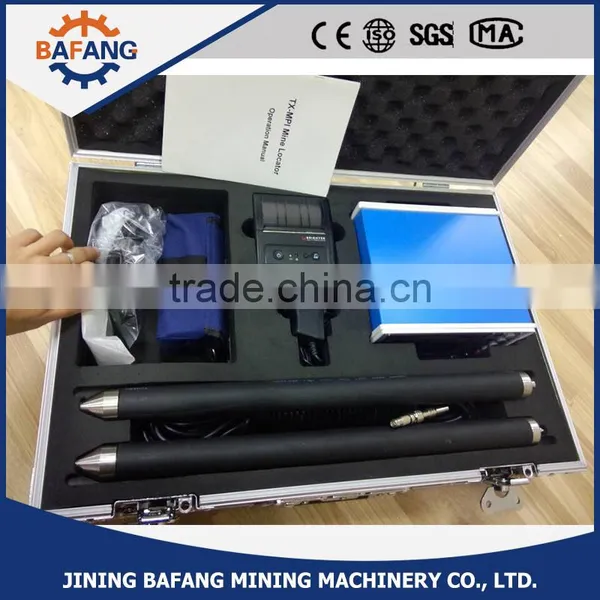

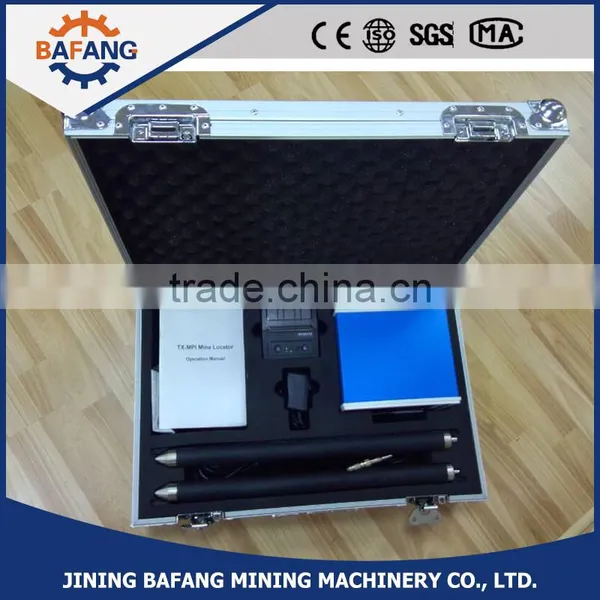

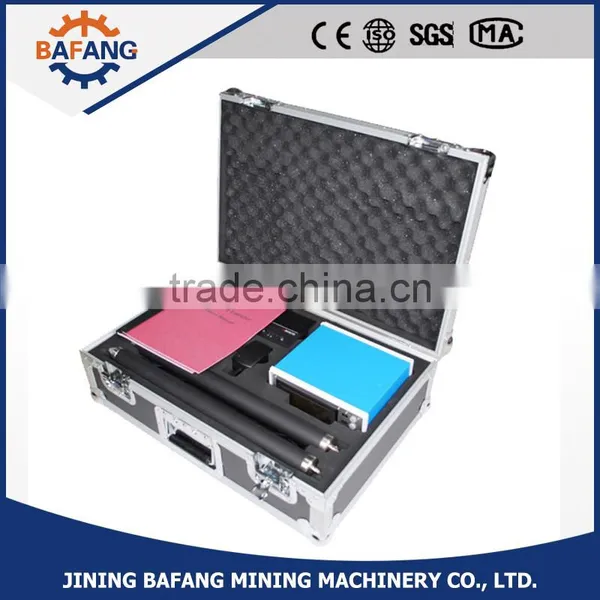

Accessories:

TX-MPI Mine Locator (including charger):1 unit

Special printer (including charger): 1 unit

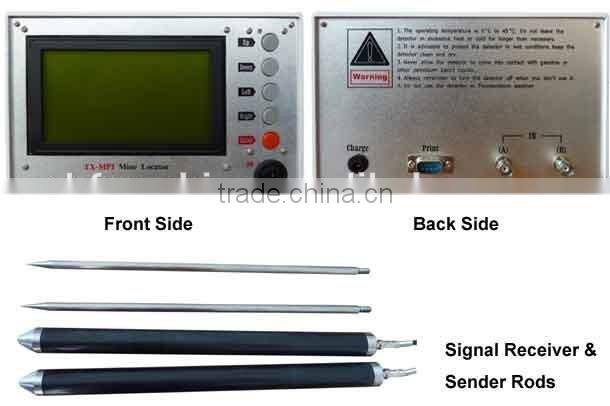

Measuring electrode: 1 pair

10m cable: 2 pieces

Conversion cable: 1 piece

Print paper: 2 volumes

Instrument strap:1 piece

Operation Manual: 1 piece

Widely Using in Underground pipeline detection,

                          Mine detection,

                         Archaeological detection,

                         Crystal mineral detection

                         Water Detection

                         Geological explorating
