PH/ORP PH160 2017 High Accuracy Pharmacy Industrial Online ph Orp Meter

Product Introduction

  PH160 controller has been widely used in industrial, electricity, agriculture, medical, food, scientific research, environment

   protection areas etc. With the development of high-tech, it has become one of the necessary detecting equipment of QS,

   HACCP applied for the food or portable water factory.

Parameters

1. Isolated transmitting 4-20mA output can be set, the maximum loop is 750Ω, 0.1%FS

2. Measurement range: PH(0-14 pH);ORP(-1000-+1000 mV or    (-2000-+2000 mV))

3. Precision : ±0.02 pH; ±1mV

4. Resolution ratio: ±0.01 pH; ±1mV

5. Stability : ≤0.02 pH/24H;  ≤3 mV/24H

6. Input impedance :  ≥10^12

7. Temperature measurement scope: 0-100℃, precision: ±0.5℃, NTC 10K

8. Temperature compensation: 0-100℃ manual/automatic

9. RS485function, compatible with standard MODBUS-RTU communication protocol

10. Power supply: AC220V±10%, 50Hz or DC 24V

11. Alarm relay: AC250V , 3A

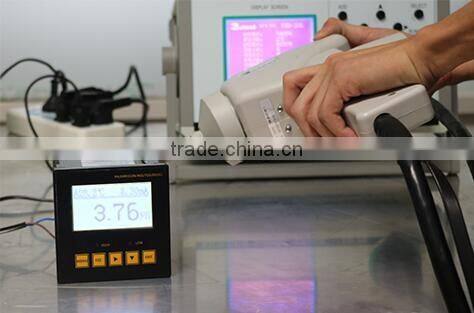

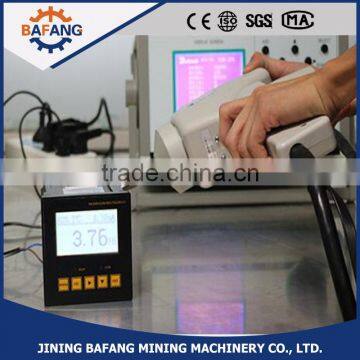

Detailed Photos
