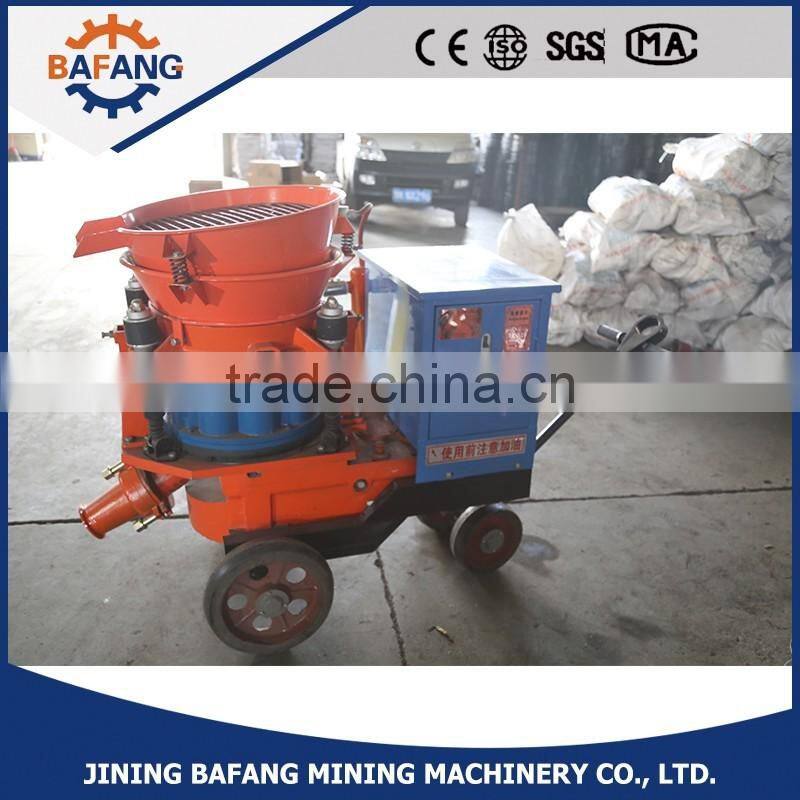

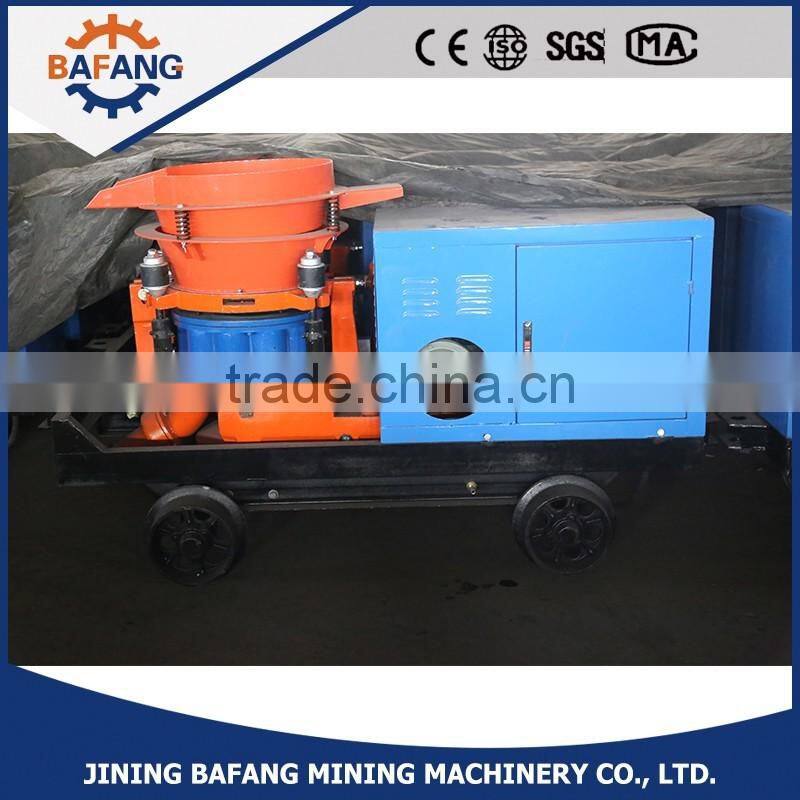

Wet Type Shotcrete Machine / shotcrete machine For Retaining Walls
Product introduction
Using wet concrete jet sprayed concrete operations, can greatly reduce the dust concentration and resilient rate, a spray layer thickness increases, improve production efficiency, guarantee the engineering quality.

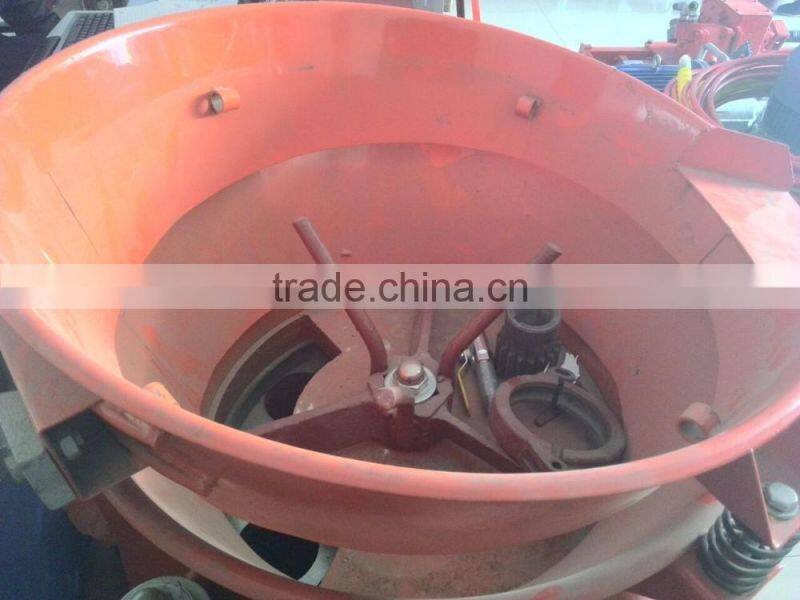

Can smoothly enter the special vibration hopper makes concrete batching system, standard of metering pump is to be able to add hardener.
Using low pressure low vortex air transport, close the working principle of the injection overcome the blocking pipe, pulse, the problem such as segregation.
Make the injection material flow uniformity, stability, improve the spray layer material.
Features:
1. Good quality, reliable, stable performance, easy to operate.
2. Cover the explosion-proof, explosion-proof to compensate, adapt to different construction environment
3. Walking style with lugs, the rail wheel tracks (= 600 mm, 762 mm, 900 mm), a variety of forms such as tyre, for convenient to choose
4. Adoption of new compound pressure spring, better sealing
Technical parameters
| item | HSP-5B | HSP-7B | HSP-9B | |||||
| Output | 5 m³/H | 7m³/H | 9 m³/H | |||||
| Max. Convey dist | Horizontal:30m ] Vertical: 20m | Horizontal:30m Vertical: 20m | Horizontal:30m Vertical: 20m | |||||
| Concrete proportion | 1:4-5C/A | 1:4-5C/A | 1:4-5C/A | |||||
| Water cement ratio | ≤0.4 | ≤0.4 | ≤0.4 | |||||
| Hose inner size | Φ51m | Φ51m/64mm | Φ51m/64mm | |||||
| Max. Aggregate size | 15mm | 15mm | 15mm | |||||
| Operating air pressure | 0.3-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | |||||
| Air consumption | 10-15m³/min | 10-15m³/min | 10-15m³/min | |||||
| Spring rate level | ≤10% | ≤10% | ≤10% | |||||
liquid accelerator metering pump | pneumatic | pneumatic | pneumatic | |||||
| liquid accelerator add ratio | 0.3-0.7% | 0.3-0.7% | 0.3-0.7% | |||||
| main Electric motor power | Y132m-6-5.5KW | Y160m-6-7.5KW | Y160m-6-7.5KW | |||||
| Voltages | 380v as your requirement | 380v as your requirement | 380v as your requirement | |||||
| wheel rail gauge (mm) | 600 ,762,900 | 600,762,900 | 600,762,900 | |||||
| Wheel | rail wheel | |||||||

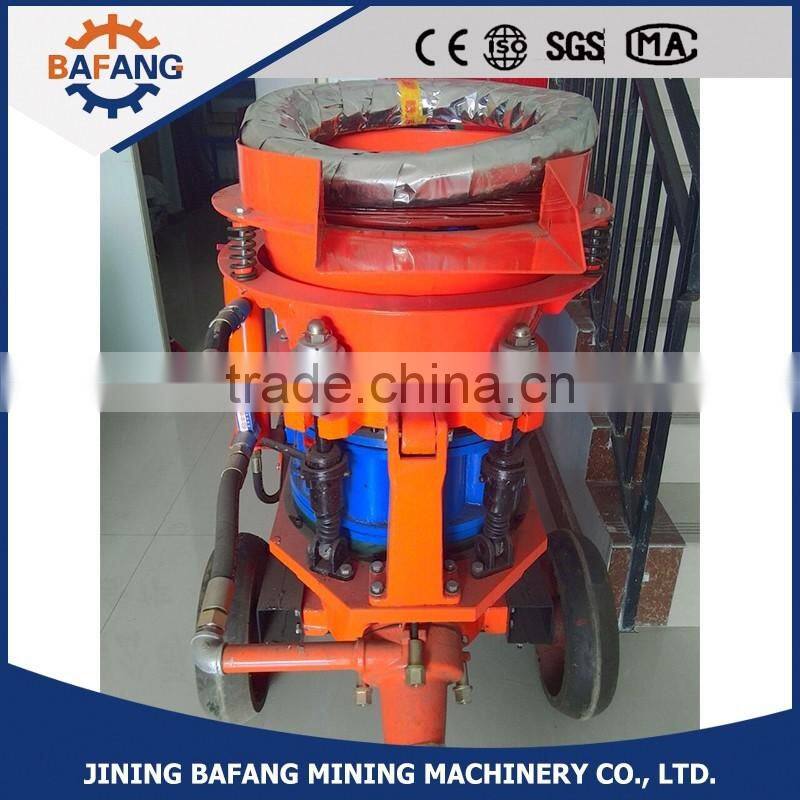

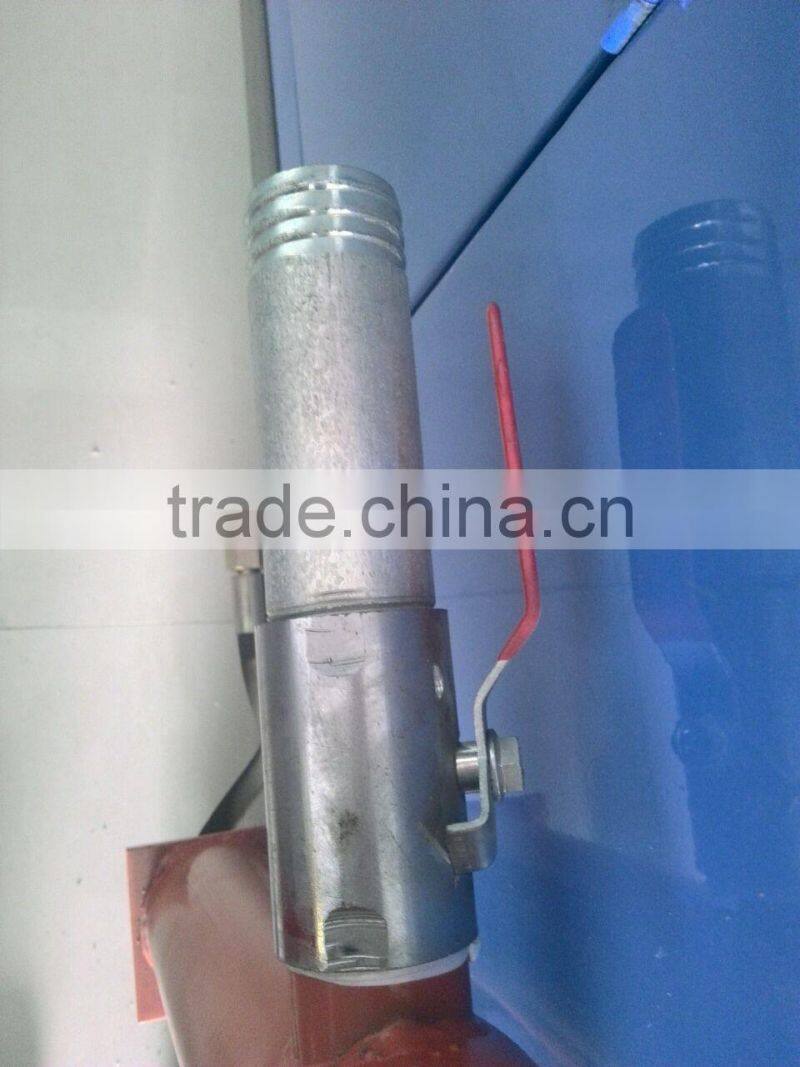

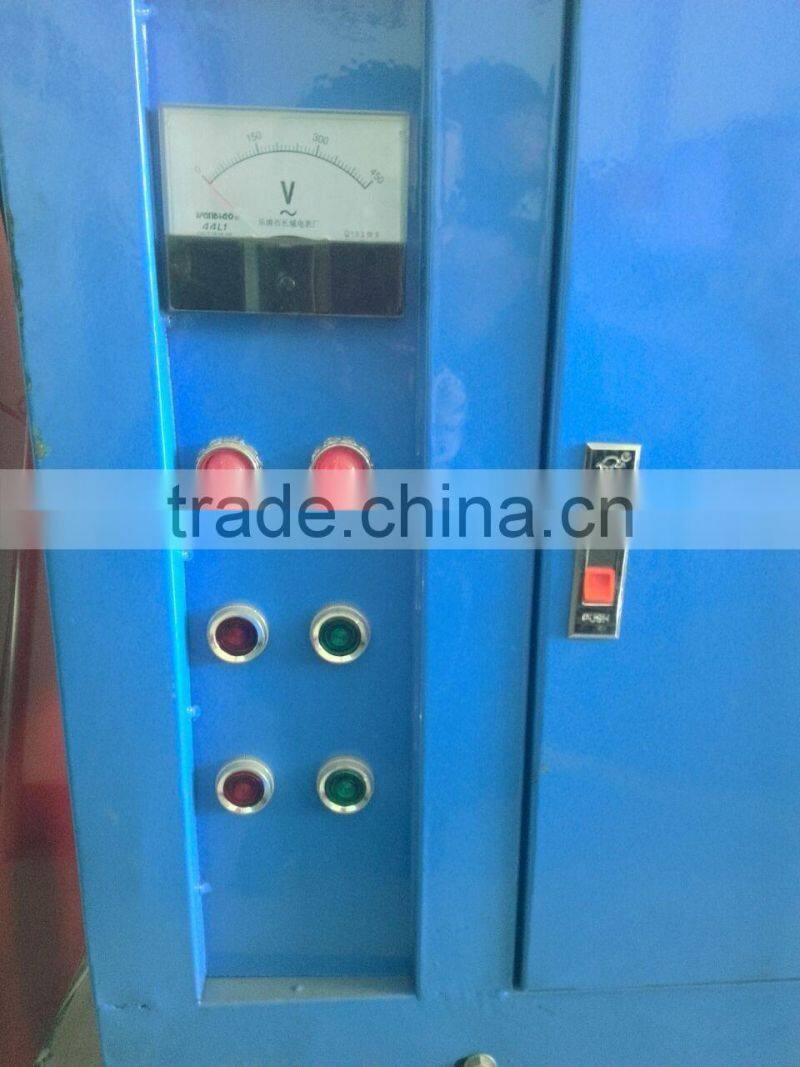

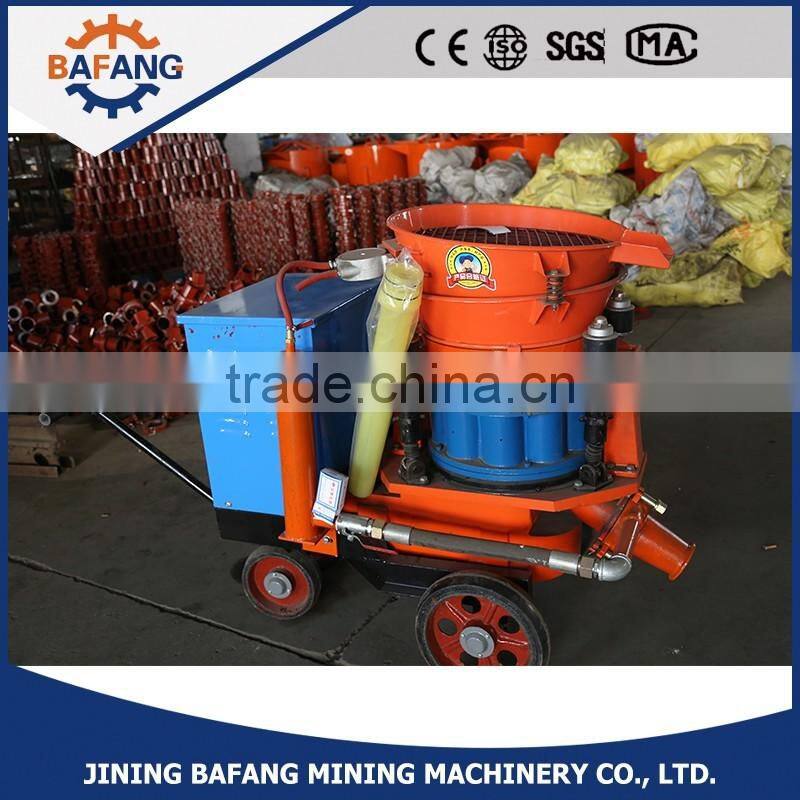

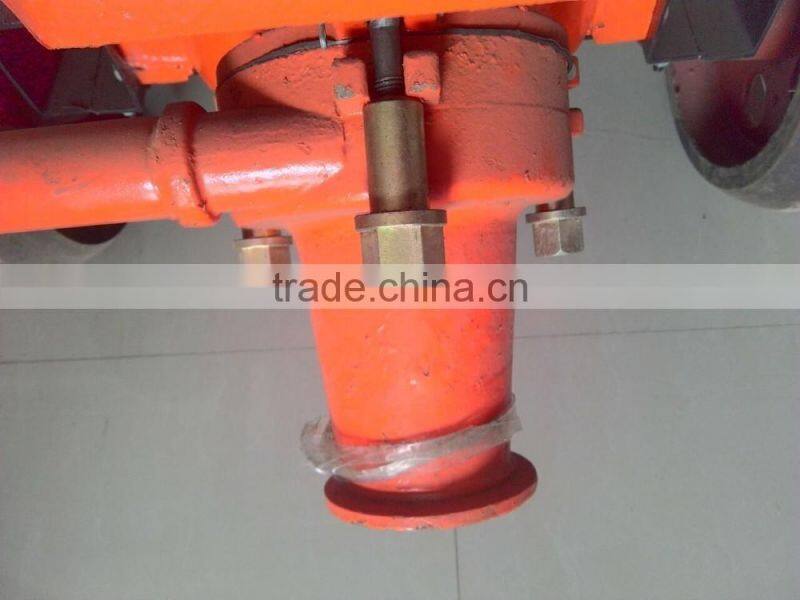

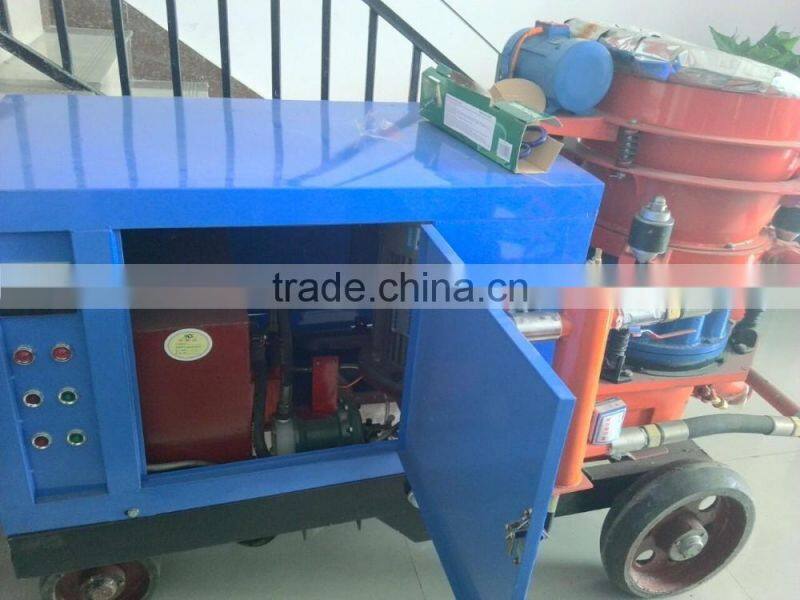

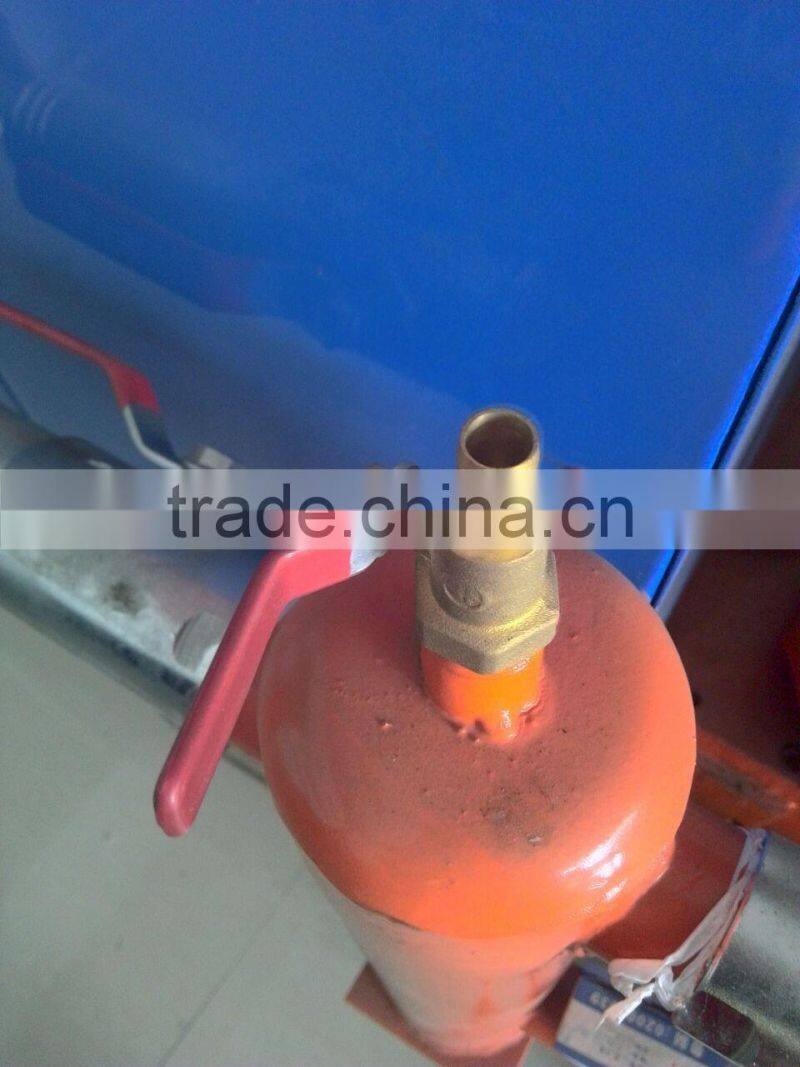

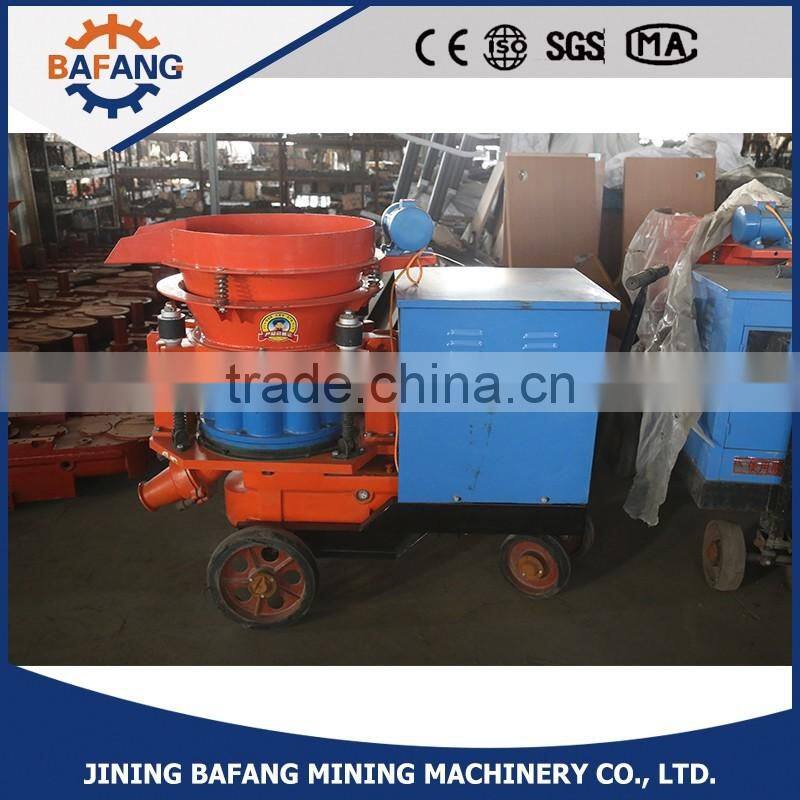

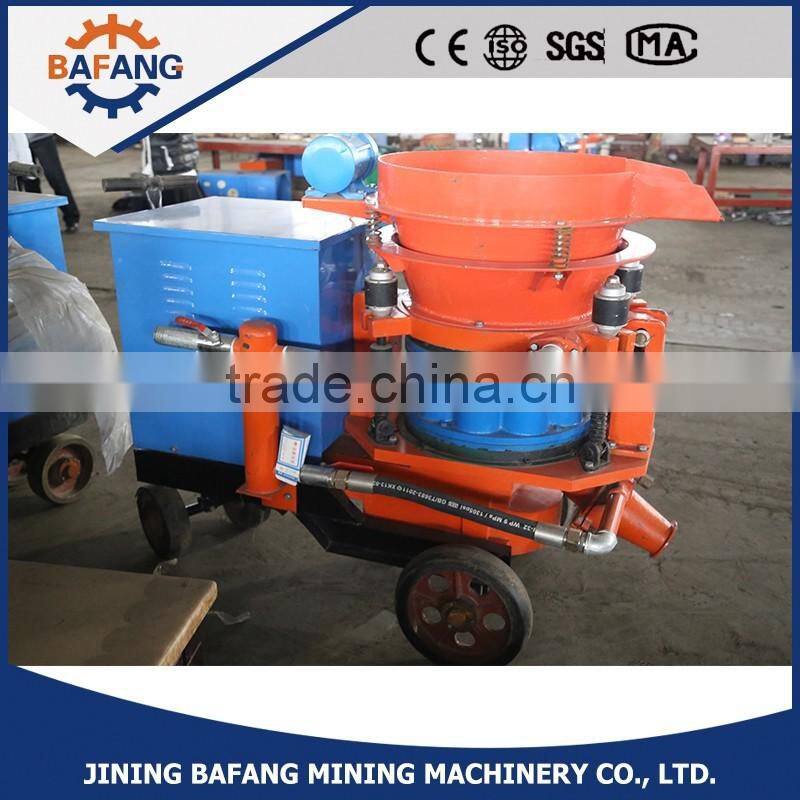

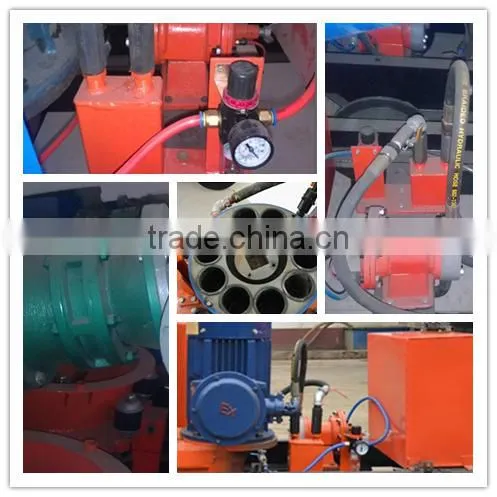

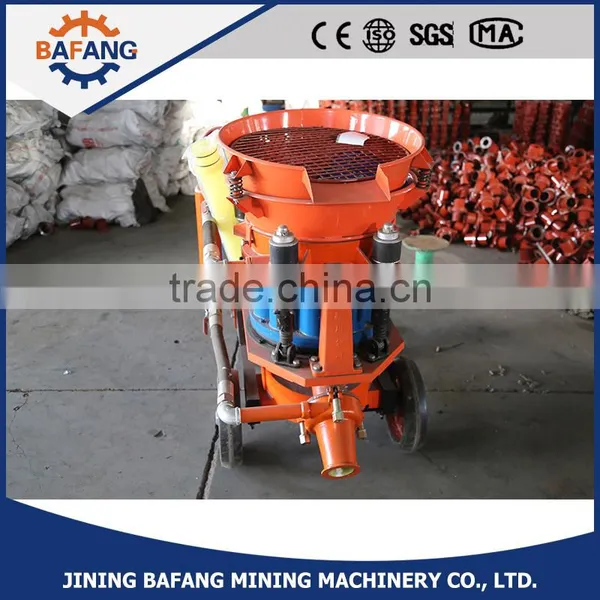

real detailed picture
