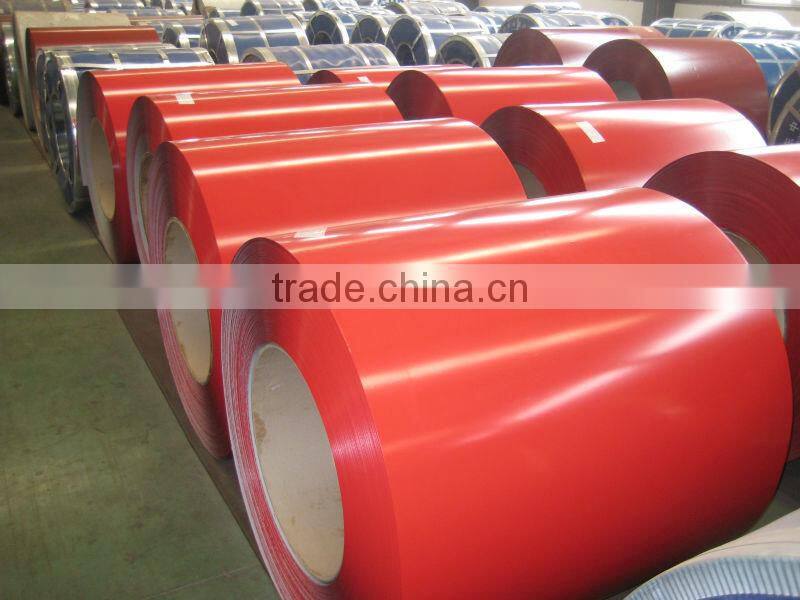

All RAl Color Coating Prepainted Steel Plates /Coils of Chinese Steel

Name: All RAl Color Coating Prepainted Steel Plates /Coils of Chinese Steel
Brand: EVERBRIGHT
SKU: 141090604
Availability: InStock

US$ 700 - 900 MOQ: 25 Tons

Key Specifications

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Grade:

CGCC,CGCH ,SGCC, SPCC,Q235B

Thickness:

0.13-0.6MM

Liaocheng Everbright Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin or qingdao

Delivery Detail:

Delivery time depends on order quantity.

Standard AISI, ASTM, BS, DIN, GB, JIS

Grade CGCC,CGCH ,SGCC, SPCC,Q235B

Thickness 0.13-0.6MM

Place of Origin Shandong, China

Brand Name EVERBRIGHT

Model Number 0.13-0.6MM*600-1250MM

Type Steel Coil

Technique Cold Rolled

Surface Treatment Coated

Application Other, building,house hold

Special Use High-strength Steel Plate

Width 600-1250MM

Length coil

Specification :

PRODUCT	Color Coated Steel Coil
STANDARD	GB/T-12754: 2006, JIS3302, EN 10142, ASTM A653, JIS G3302, SGCC/SGCH, GB/T2518, European Standard, ASTM A792, JIS G3321, JIS G3317
BASE PLATE	Cold rolled steel sheet, hot dipped zinc coated steel sheet, hot dipped A-Z coated steel sheet
EQUIPMENT	Double coating double baking; three coating three painting
CAPACITY	250,000Mt/year
SIZE	Thickness 0.13-0.6 mm, width 600mm—1250mm
ZINC COATING	40g-180g
PAINT THICKNESS	Top:20+-5um, back:5-7um
COIL WGT	3Mt—8Mt
COIL ID	φ508mm—φ610mm
BASE SHEET	Cold rolled steel sheet, hot dipped zinc coated steel sheet (small, regular or zero spangle), hot dipped A-Z coated steel sheet
SURFACE PAINT	EP, PE, HDP, SMP, PVDF
COLOR SERIES	RAL color number series
SURFACE TYPE	Printed, embossed, corrugated

Standard	Grade	Zinc coating	Width	Thickness	Length	Capacity/Year
JIS G3312	CGLCC	Z40-Z180g	600-1250mm	0.13-0.6mm	Coil	250,000Ton
EN 10346	DX51D+Z/DX53D+Z/S220GD-550GD	Z40-Z180g	600-1250mm	0.13-0.6mm	Coil	250,000Ton
ASTM A792	CS-B/SS255-550	Z40-Z180g	600-1250mm	0.13-0.6mm	Coil	250,000Ton
