YT29A air rock drill,used for mining drill
- 500 Carton / Cartons per Month
- ningbo
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Core Drilling Rig | Power Type: | Electric |
| Brand Name: | GM | Model Number: | YT29A | Usage: | Coal |
| Voltage: | 220/380V | Power(W): | 11kw | Dimension(L*W*H): | 2.5*0.9*1.3m |
| Weight: | 27KG | Certification: | ISO CE | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

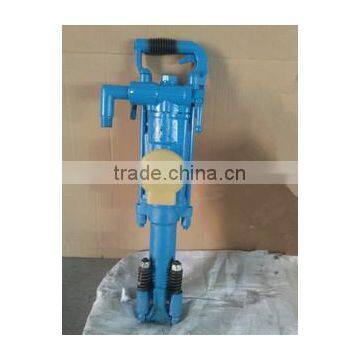

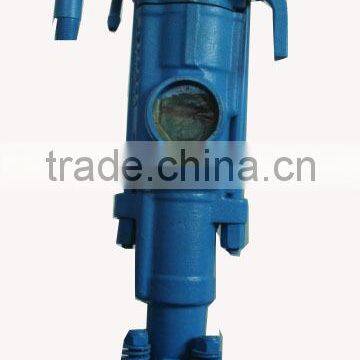

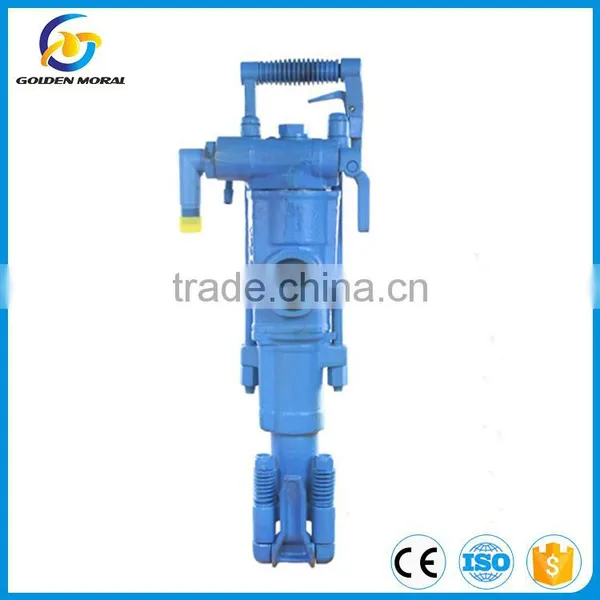

YT29A air rock drill,used for mining drill:
The YT29A rock drill is the most strongest, powerful and highly efficient rock drill in the range.It gives improved productivity and drill steel economs and can be used on all rock formation and in all kinds of applications.
Weight 26 KG
All length 660MM
Air consumption ≤82L/S
Drilling Frequency ≥40HZ
Air pipe inner Dia. 25MM
Water pipe inner Dia. 13MM
Drilling Hole Dia. 34-42MM
Drilling Depth 5M
Shank Size 22*108mm
Air pressure 0.63Mpa
FT160 Air leg:
Weight 17KG
Length 1800MM
Pushing stroke 1370MM
FY250 Oil Reservior:
Weight 1.2KG
Oil capacity 250ML
