Jack Hammer YT28 Air-leg Rock Drill 2013

Fuzhou Golden Moral Imp & Exp Co., Ltd.
Jack Hammer YT28 Air-leg Rock Drill 2013 thumbnail-1
Jack Hammer YT28 Air-leg Rock Drill 2013 thumbnail-2
Jack Hammer YT28 Air-leg Rock Drill 2013 thumbnail-3
Jack Hammer YT28 Air-leg Rock Drill 2013 thumbnail-4
Jack Hammer YT28 Air-leg Rock Drill 2013 thumbnail-5
Jack Hammer YT28 Air-leg Rock Drill 2013 thumbnail-6
Jack Hammer YT28 Air-leg Rock Drill 2013 photo-1
Jack Hammer YT28 Air-leg Rock Drill 2013 photo-2
Jack Hammer YT28 Air-leg Rock Drill 2013 photo-3
Jack Hammer YT28 Air-leg Rock Drill 2013 photo-4
Jack Hammer YT28 Air-leg Rock Drill 2013 photo-5
Jack Hammer YT28 Air-leg Rock Drill 2013 photo-6
US$ 185 - 225 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
GM
Model Number:
YT28
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name GM
Model Number YT28
Type Air Hammer
Average Air Consumption 90PSI
Maximum Torque None(air Drill)
No-Load Speed 000rpm

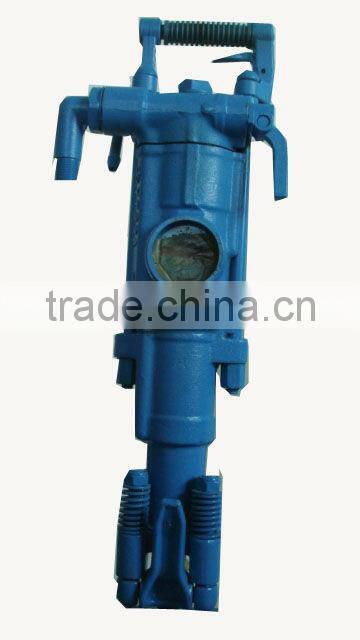

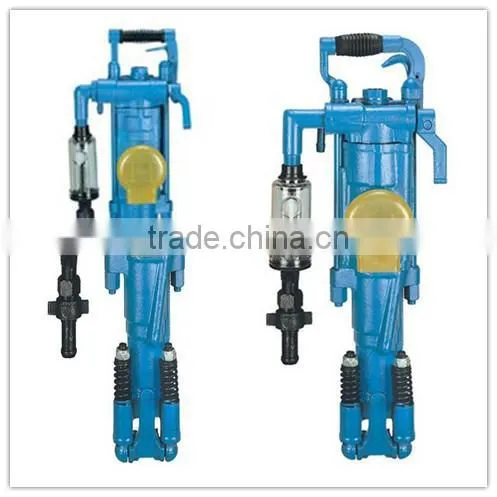

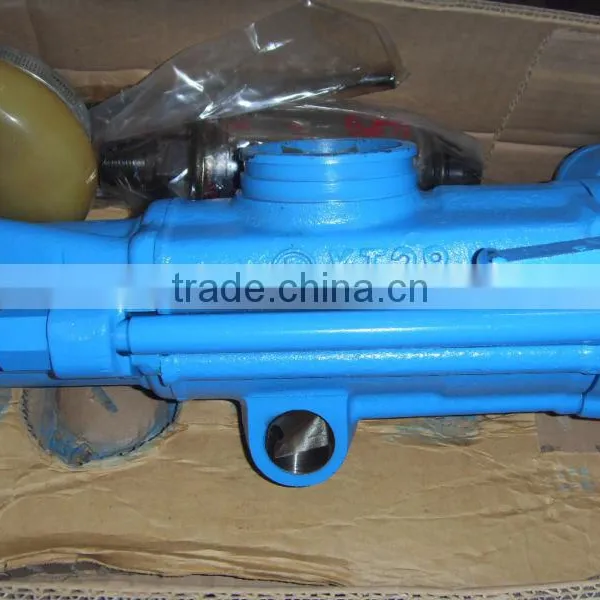

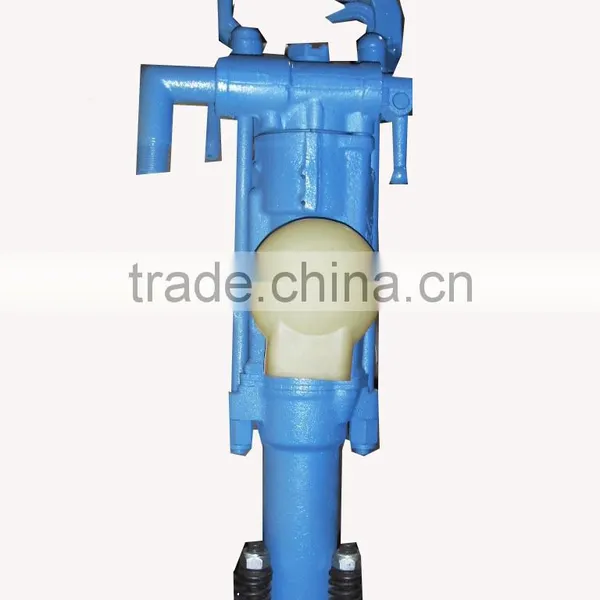

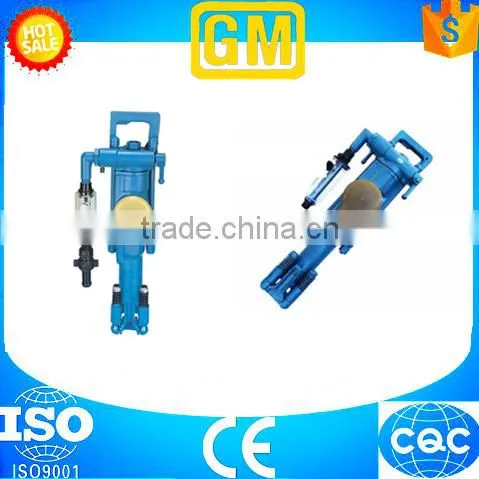

Jack hammer YT28 Air-leg Rock Drill 2013

Instruction

The rock drill is a kind of high efficiency air leg rock drill machinery. It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.

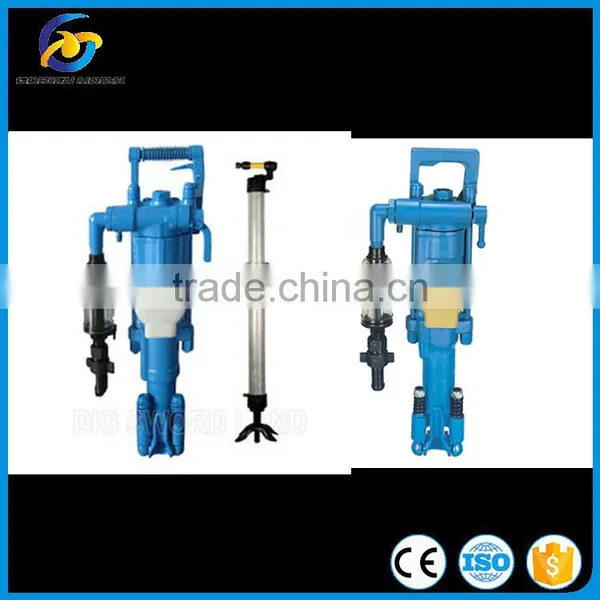

It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole dia is 34-42mm, drill hole depth is 5 m This machine may match with Model FT160BD short air leg or Model FT160BC long air leg.

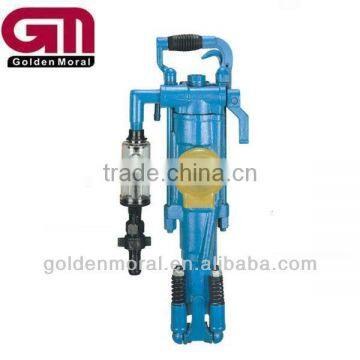

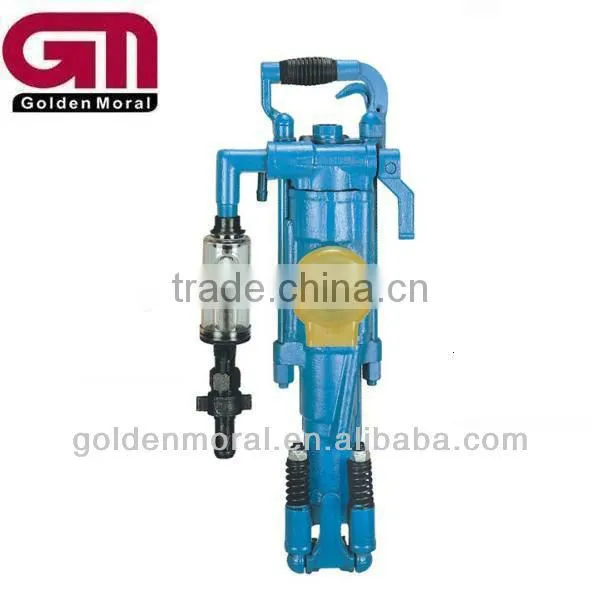

This machine has transparent surface of FY200B oil reservoir, easy to observe the oil lever, adjust oil quantity, ensure the well lubricated.

Specification

Weight                                                                     ≈ 26 kg

Length                                                                 661mm

Cylinder dia                                                             80mm

Piston stroke                                                               60mm

Air pressure                                                         0.4- 0.63MPa

Impact frequencey                                                        ≥ 37        Hz

Air consumption                                                       ≤81L/S

Air pipe (inner dia )                                                            25mm

Water pipe (inner dia )                                                    13mm

Drill bit dia                                                             34-42mm

Shank dimensions(hex×length)                                      22×108±1mm

The function specification that Air pressure is 0.63Mpa

FT160BD Air leg(short)

Length                                                                 1400mm

Push stroke                                                              965mm

Cylinder dia.                                                               65mm

Weight                                                               ≈ 14.4 kg

FT160 Air leg(long)

Length                                                                1800mm

Push stroke                                                             1365mm

Cylinder dia.                                                             65mm

Weight                                                             ≈ 169 kg

FY200B oil reservoir

Oil capacity                                                              200ml

Jack hammer YT28 Air-leg Rock Drill 2013Jack hammer YT28 Air-leg Rock Drill 2013

Jack hammer YT28 Air-leg Rock Drill 2013Jack hammer YT28 Air-leg Rock Drill 2013
