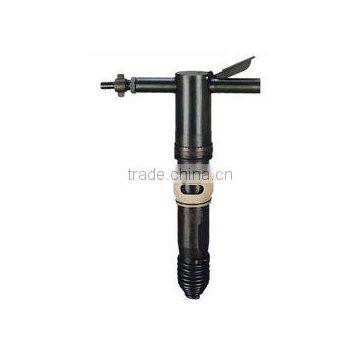

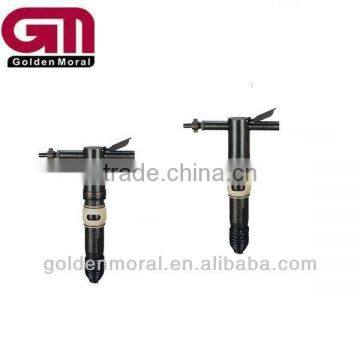

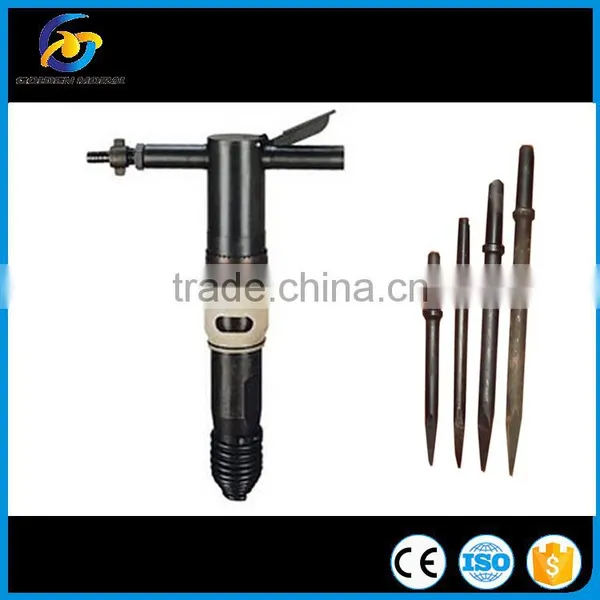

Help CenterG20 Pneumatic Air Hammer
Related Products
G20 Pneumatic Pick Hammer
Instruction
The G20 pneumatic pick is suitable in the mining industry to interrupt the coal bed and to destroy the soft ore; or in civil engineering and underground construction,.
Specification
Length 572mm
Weight 20kg
Rammer dia 40mm
Rammer stroke 165mm
Impact energy 60J
Impact frequency 16Hz
Air consumption 23L/s
Air pipe inner dia 16mm
Pick drill 450-600MM
Maintenance
1,Air pipe inner dia is 16mm and length is not excess 12 m, the air pressure should be kept at 0.63Mpa, and keep air pipe clean and fasten hose nipple.
2,When assembling machine,check clearance between drill shank and fixing sleeve,hold handle and force pressure to it slowly, ensure that work normally.
3,Oil machine every 2-3 hours(3-4.5°E50 turbine oil)
4,Do not insert the whole machine into ledge,when drilling incompetent bed.
5,When machine was jammed at crevice, do not drawout it powerfully ,it will damage machine.
6,If dirt block strainer, romove it .cannot disassemble strainer.
7,When using machine,dismantle it at least twice a week, use diesel oil to clean and dry ,then oil, later assemble and operate machine.
8,If machine should be stored for along time ,dismantle and clean it ,then oil and store.
