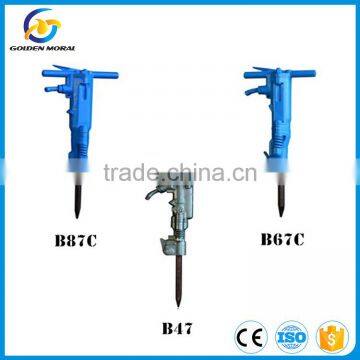

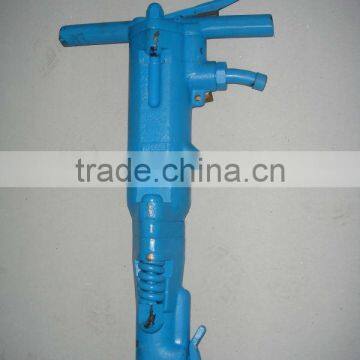

B87C Pneumatic hammer breaker,Jack Hammer:
To pave and break concrete foundation installing engenering to break other hard things.
The paving breaker model B87C is tools with compressed air as its power .The compressed air is distributed alternatively through the distributing vaive into either end of the cylinder assembiy so that the hammer inside is made to carry on a reciprocal motion which impacts the shank of the steel chisel by the tappet drives into the concrete foundation and makes them split into huge pieces.
|
|
B87c |
B67c |
Overall length |
mm |
686 |
615 |
Total weight |
kg |
39 |
30 |
Cylinder D |
mm |
63.5 |
50.8 |
Working pressure |
Mpa |
0.63 |
0.63 |
Impact energy |
J |
100±10% |
37%±10% |
Impact power |
kw |
1.8±10% |
0.9±10% |
Blows frequency |
Hz |
18±5% |
24±5% |
Air consuption |
L/s |
55±15% |
42±15% |
Air pipe 1.D |
mm |
19 |
19 |
