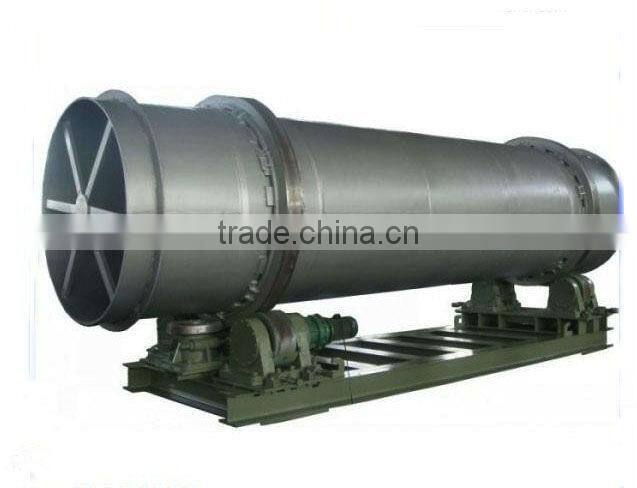

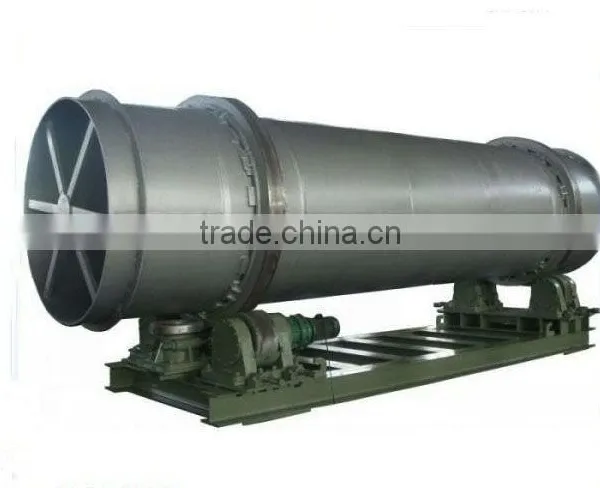

Rotary Drier:
Rotary drier is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary drier has a better adaptability and can dry various materials with a simple and reliable operation.
Features of Rotary Drier:
The rotary drier is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Technical Parameters of Rotary Drier:
Model (mm) |
Obliquity(%) |
Rotation speed (r/min) |
Feeding temperature (degree) |
Power (kw) |
Capacity(t/h) |
Weight (t) |
600x6000 |
3-5 |
3-8 |
<=700 |
3 |
0.5-1.5 |
2.9 |
800x8000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.0 |
3.5 |
800x10000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.5 |
4.5 |
1000x10000 |
3-5 |
3-8 |
<=700 |
5.5 |
1.0-3.5 |
5.6 |
1200x10000 |
3-5 |
3-8 |
<=700 |
7.5 |
1.8-5 |
14.5 |
1200x12000 |
3-5 |
3-8 |
<=700 |
11 |
2-6 |
14.8 |
1500x12000 |
3-5 |
2-6 |
<=800 |
15 |
3.5-9 |
17.8 |
1800x12000 |
3-5 |
2-6 |
<=800 |
18 |
5-12 |
25 |
2200x12000 |
3-5 |
1.5-6 |
<=800 |
18.5 |
6-15 |
33 |
2200x18000 |
3-5 |
1.5-6 |
<=800 |
22 |
10-18 |
53.8 |
2200x20000 |
3-5 |
1.5-6 |
<=800 |
30 |
12-20 |
56 |
2400x20000 |
3-5 |
1.5-5 |
<=800 |
37 |
18-30 |
60 |
3000x20000 |
3-5 |
1.5-5 |
<=800 |
55 |
25-35 |
78 |
3000x25000 |
3-5 |
1.5-5 |
<=800 |
75 |
32-40 |
104.9 |
